FEATURES
PRODUCT SPECIFICATIONS
Blade Diameter ......................................................7-1/4 in.
Blade Arbor .............................................................. 5/8 in.
Cutting Depth at 0º ................................................2-3/8 in.
Cutting Depth at 45º ..........................................1-13/16 in.
Cutting Depth at 51.5º ...........................................1-5/8 in.
No Load Speed .................................... 4,600 r/min. (RPM)
Input ................................ 120 V, 60 Hz, AC only, 12 Amps
Net Weight ............................................................ 9.36 lbs.

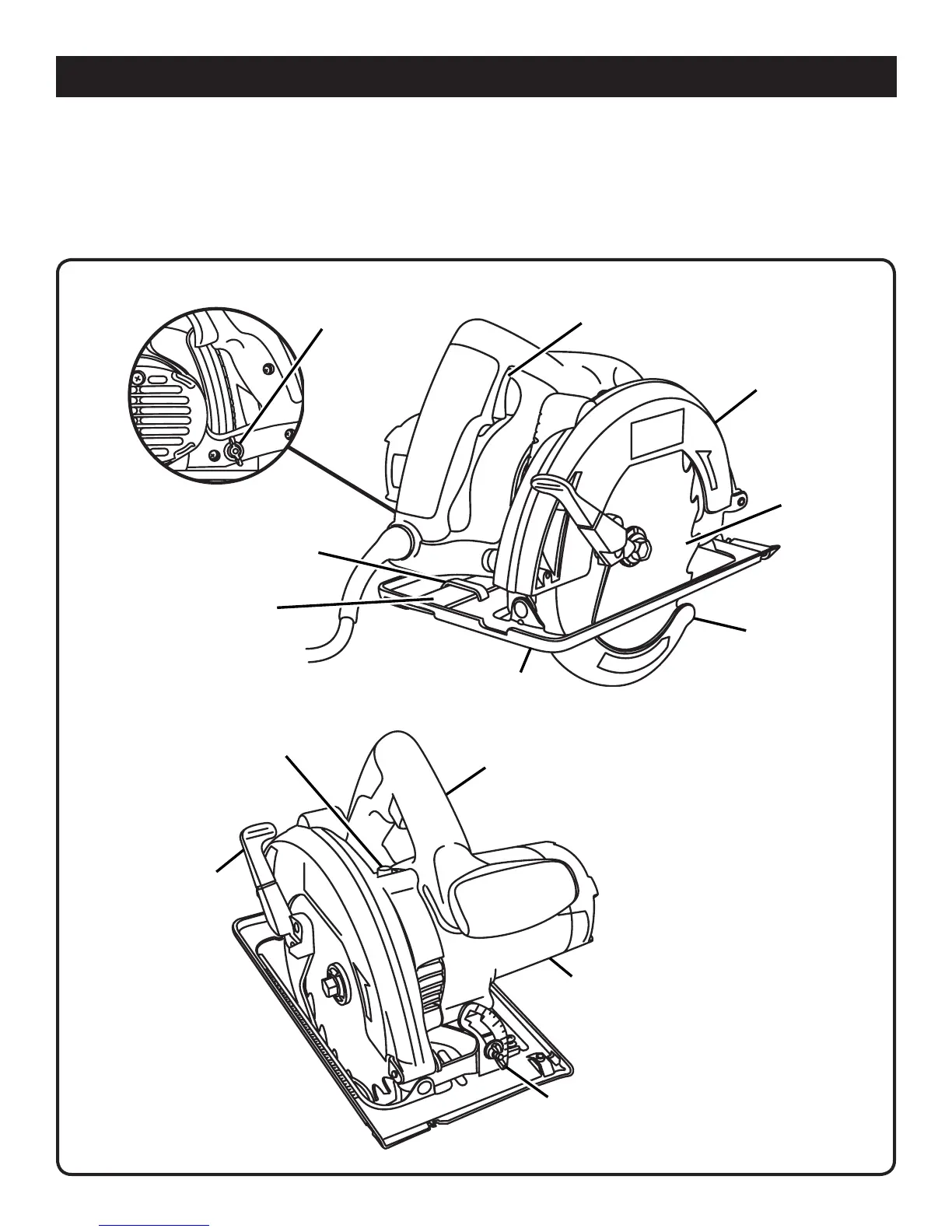

Fig. 1
DEPTH
ADJUSTMENT
WING NUT
LOWER BLADE
GUARD HANDLE
BEVEL CUT
ADJUSTMENT
WING NUT
MOTOR
HOUSING
HANDLE
SPINDLE LOCK
BUTTON
SWITCH
UPPER BLADE
GUARD
BASE
LOWER
BLADE
GUARD
BLADE
BLADE WRENCH
STORAGE AREA
BLADE
WRENCH
