15
ANGLE CUTTING (BEVEL CUTTING)

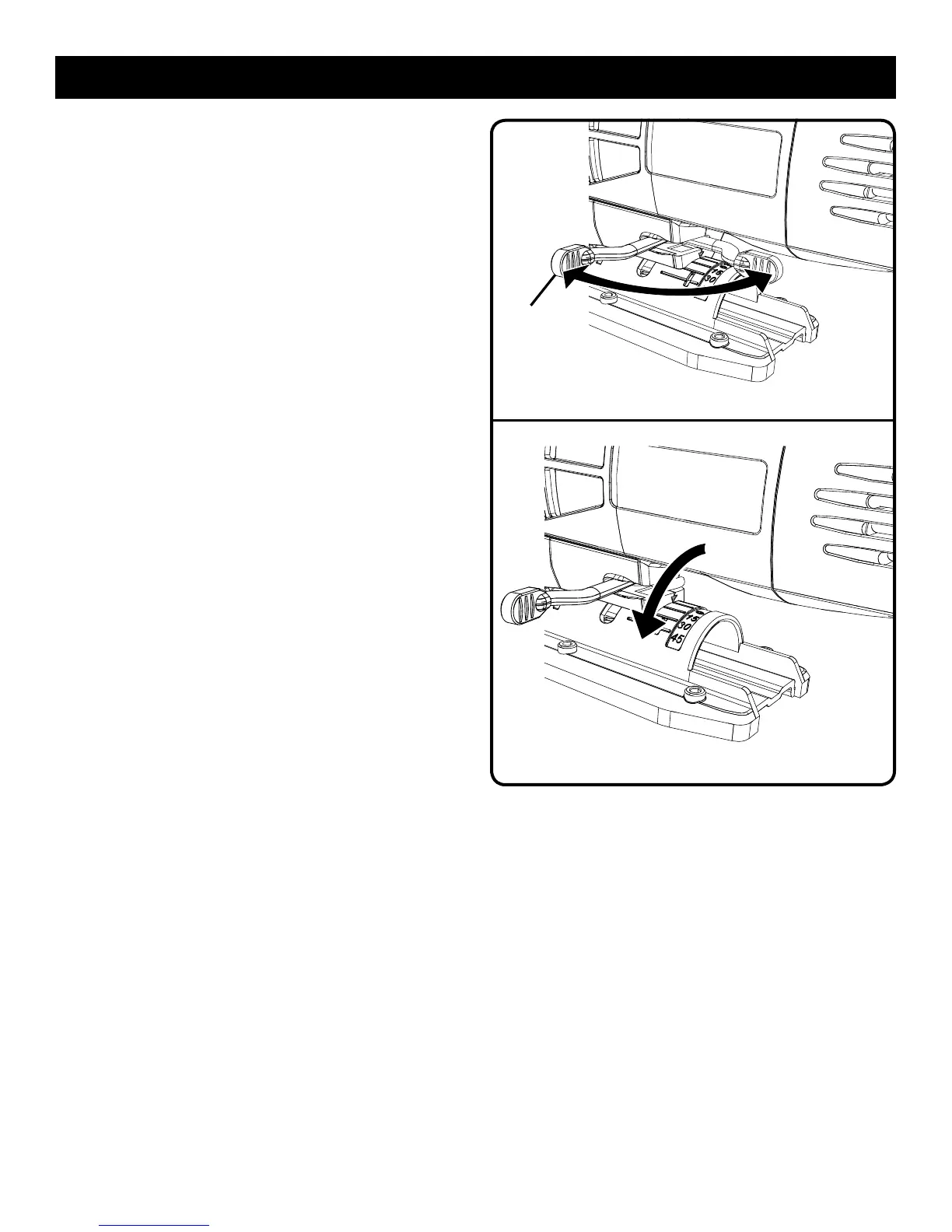

See Figures 13 and 14.
Bevel cutting angles may be adjusted from 0° to 45° right
or left. Angles for cuts from 0° to 45° in 15° increments are
marked on a scale on both the left and right side of the base.
An arrow under the motor assembly provides an indicator at
each of the above mentioned 15° increments. A protractor
is recommended when accurate cuts are required.
n Unlock the base by moving the base locking lever for-
ward.
�n Align the mark, on the base, of the desired angle with the
indication arrow located on the housing.
�n Once the desired angle is reached, tighten the base locking
lever by moving the base locking lever under the motor
assembly.
BASE
LOCKING
LEVER
OPERATION
Fig. 13
Fig. 14
