FEATURES

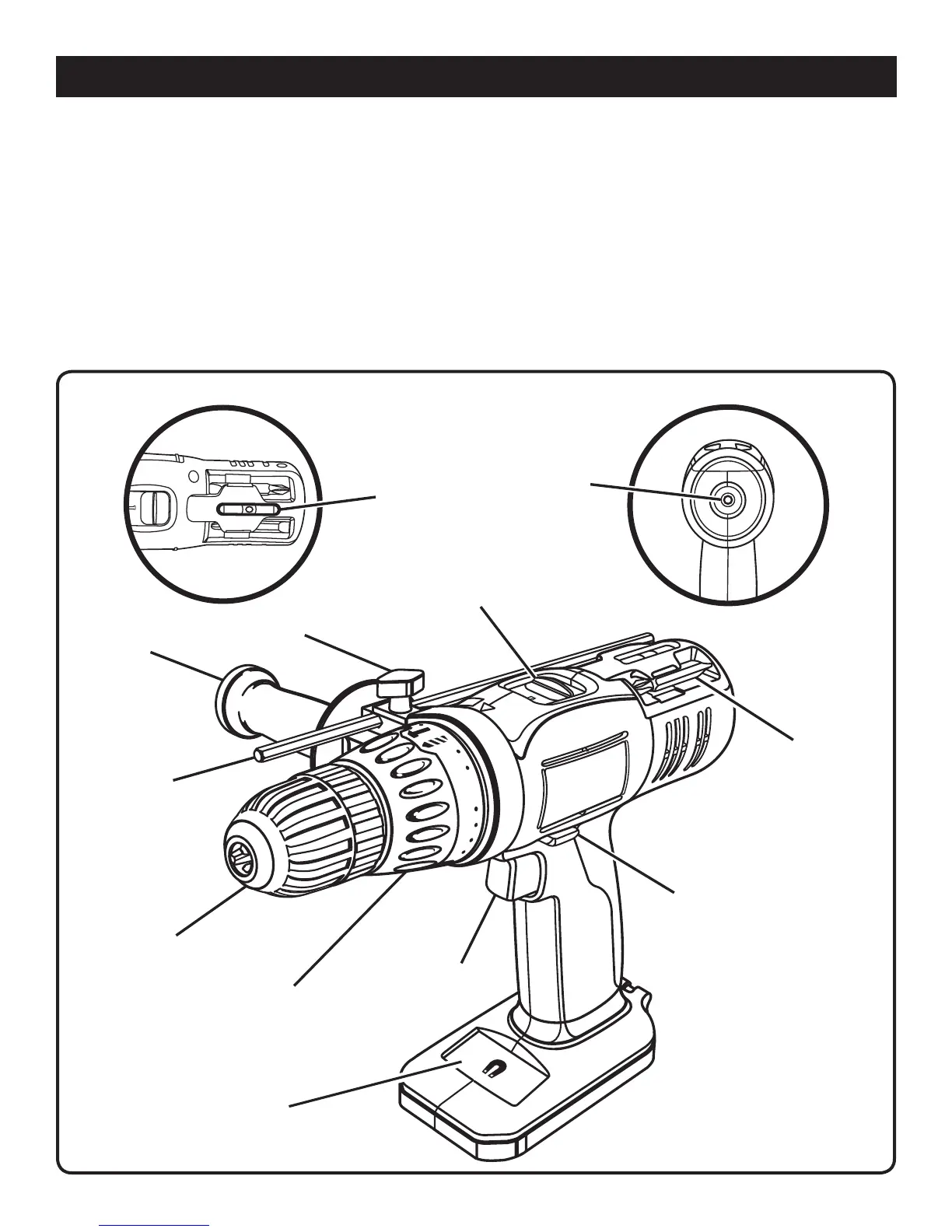

Fig. 1
PRODUCT SPECIFICATIONS
Chuck ............................................................................................................................................................................1/2 in.
Motor......................................................................................................................................................................18 Volt DC
Switch............................................................................................................................................................. Variable Speed
Gear Box ...................................................................................................................................................................2-Speed
No Load Speed ......................................................................................................Low (0 - 400/min.) & High (0 - 1400/min.)
Hammer Speed ........................................................................................... Low (0 - 5,200 BPM*) & High (0 - 18,200 BPM*)
Charger Input
....................................................................................................................................... 120 V, 60 Hz, AC only
Charge Rate
.................................................................................................................................................................1 Hour
Torque
...................................................................................................................................................... Maximum 350 in.lb.
* Blows Per Minute
TRIGGER
SWITCH
TWO SPEED
GEAR TRAIN (HIGH-LOW)
DIRECTION OF
ROTATION SELECTOR
(FORWARD/CENTER LOCK/REVERSE)
KEYLESS CHUCK
BIT
STORAGE
AREA
MODE SELECTOR TORQUE
ADJUSTMENT RING
AUXILIARY
HANDLE
DEPTH
GAGE ROD
WING SCREW
END VIEW OF LEVEL FOR VERTICAL DRILLING
LEVEL
MAG TRAY™
(SCREW HOLDER)
LEVEL
END VIEW OF LEVEL FOR HORIZONTAL DRILLING
