8
UNPACKING
CAUTION. This packaging contains
s
harp objects. Take care when
unpacking. Remove the machine,
together with the accessories supplied, from the
p
ackaging. Check carefully to ensure that the
machine is in good condition and account for all the
accessories listed in this manual. Also make sure
that all the accessories are complete.
If any parts are found to be missing, the machine
and its accessories should be returned together in
their original packaging to the retailer. Do not throw
the packaging away, keep it safe throughout the
g
uarantee period, then recycle if possible,
otherwise dispose of it by the proper means. Do
not let children play with empty plastic bags due to
t
he risk of suffocation.
T
ake care when lifting the compressor from the
packaging.
CAUTION. Do not lift the compressor by
the pressure regulator. Get assistance if
necessary. This unit weighs 30kg.
ASSEMBLY
PACKING CONTENTS
• Direct drive compressor
• Wheels x 2
• Wheel fixings (bolt, flat washer, spring washer,
nut) x 2
• Rubber foot x 2
• Rubber foot fixings (bolt, nut) x 2
• Air intake filter
• Oil fill cap
• 5 piece air tool kit (Gravity fed air gun, wash
gun, blow gun, inflating gun & 5m recoil hose)
• Operator’s Manual
WARNING. If any parts are damaged or
missing, do not operate this product until
the parts are replaced. Use of this
product with damaged or missing parts
could result in serious personal injury.
WARNING. Do not connect to power
supply until assembly is complete.
Failure to comply could result in
accidental starting and possible serious
personal injury.
WARNING. Do not attempt to modify this
product or create accessories not
recommended for use with this product.
Any such alteration or modification is
misuse and could result in a hazardous
condition leading to possible serious
personal injury.

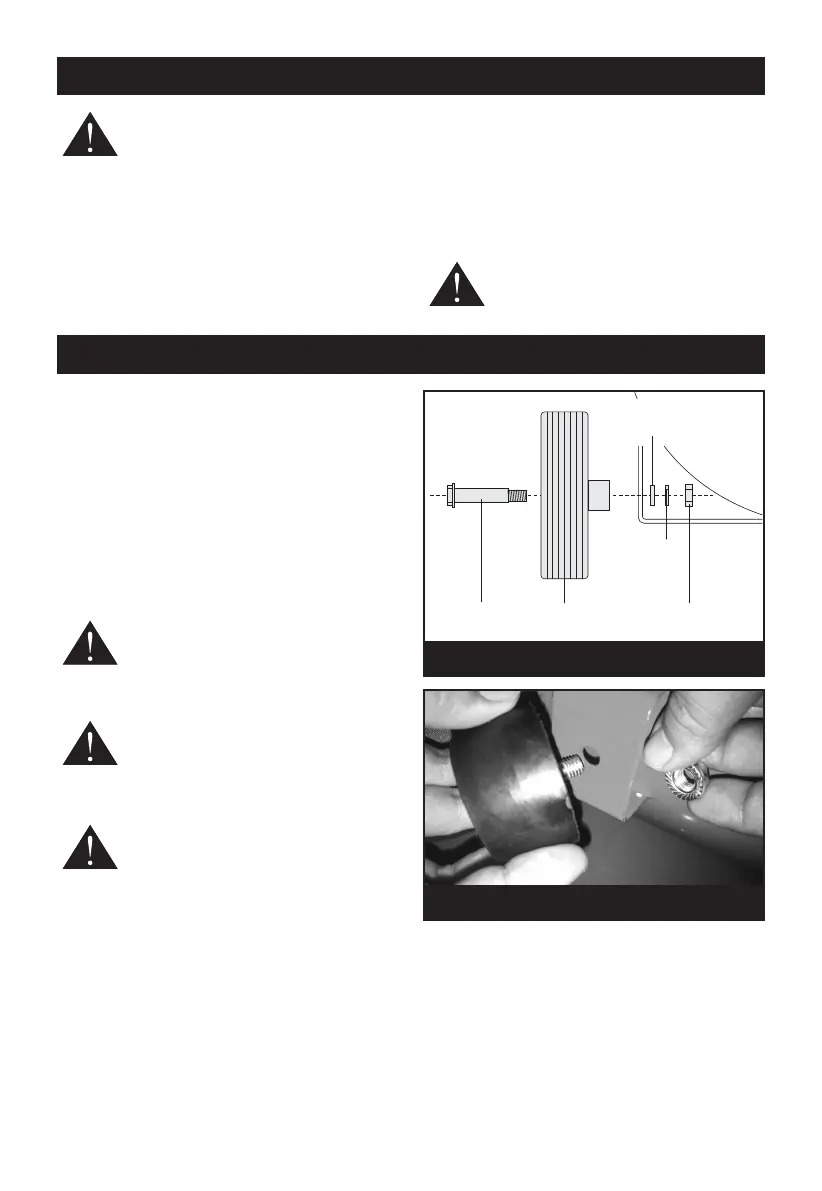

FITTING THE WHEELS
Fit the two transportation wheels to either side of
the compressor as shown in Fig.1 using a spanner
(not supplied).
FITTING THE RUBBER FOOT
To fit a rubber foot locate the bolt provided through
the hole in the rubber foot and hole on the
compressor support bracket (Fig.2). Tighten the nut
with a spanner or socket (not provided) to secure
the rubber foot into position.
Fig. 1
Fig. 2
Bolt
Wheel
Nut
Spring
Washer
Flat
Washer
