SPECIFICATIONS
UNPACKING
INFORMATION
Q Carefully remove the parts from the box. Make sure
that all items listed in the packing list are included.
Q Inspect the parts carefully to make sure no break-
age or damage occurred during shipping.
Q Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
Q If any parts are damaged or missing, please call
1-800-525-2579 for assistance.
Table Dimensions 14 in. x 24 in. (35.6 cm x 61 cm)
Maximum Cutter Diameter 1-15/16 in. (4.9 cm)
Fence Length 16 in. (40.64 cm)
Miter Slot 3/8 in. x 3/4 in. x 24 in. (0.9 cm x 1.9 cm x 61 cm)
Rating 120 Volts, 60 Hz, AC only
Net Weight 18 lbs. (8.2 kg.)
WARNING:
If any parts are missing do not operate the product
until the missing parts are replaced. Failure to do so
could result in serious personal injury.

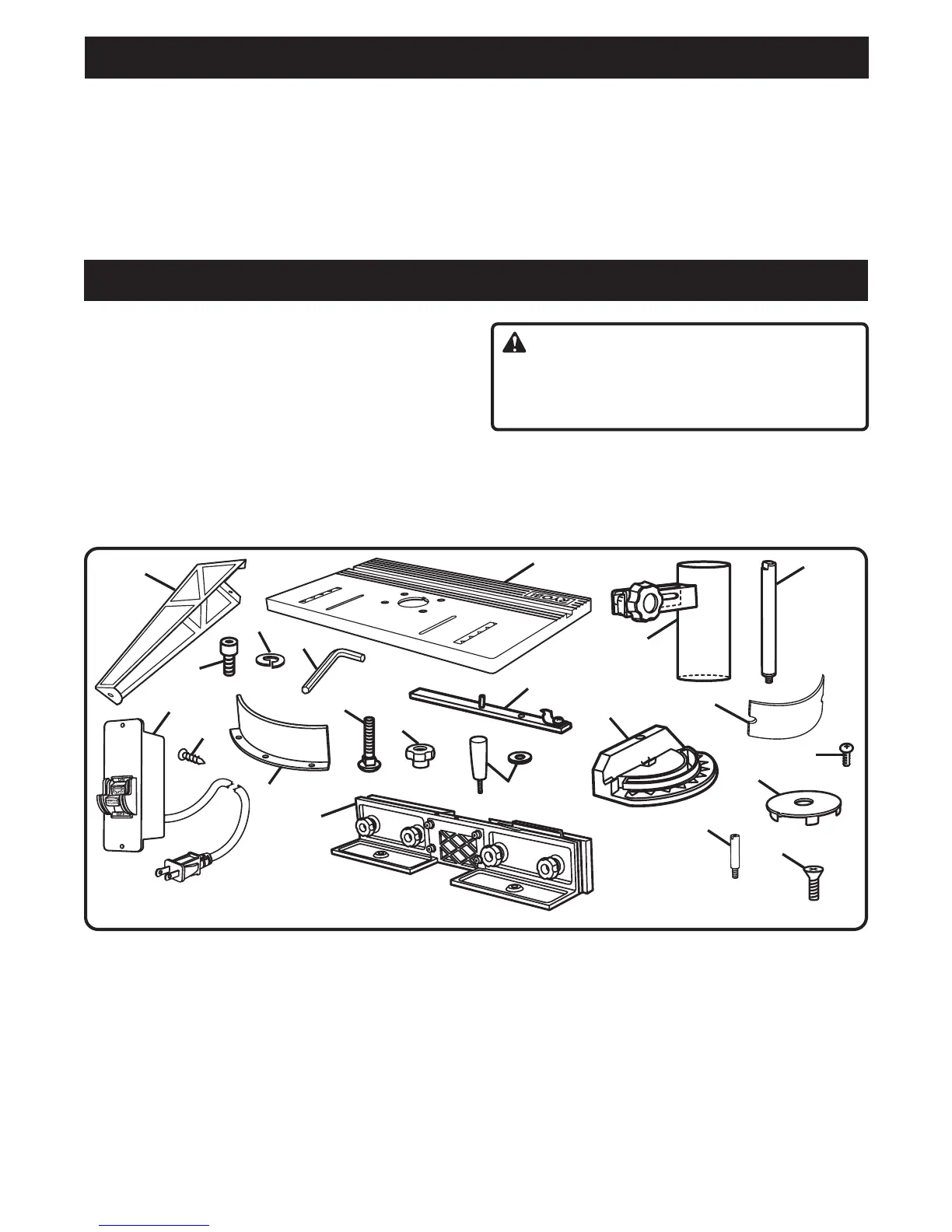

PACKING LIST
1. Router table surface (1)
2. Table leg (4)
3. Socket head screw (19)
4. Lock washer (19)
5. Hex key (1)
6. Switch box assembly (1)
7. Thread cutting screw (2)
8. Undertable guard (1)
9. Fence assembly (1)
10. Carriage bolt (2)
11. Fence lock knob (2)
12. Guard post (1)
13. Cutter guard assembly (1)
14. Miter gauge bar (1)
15. Miter gauge (1)
16. Miter gauge knob & washer (1 ea)
17. Rear safety guard (1)
18. Pan head machine screw (2)
19. Throat plate (5)
20. Starting pin
21. Flat head machine screw (3)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
