ASSEMBLY

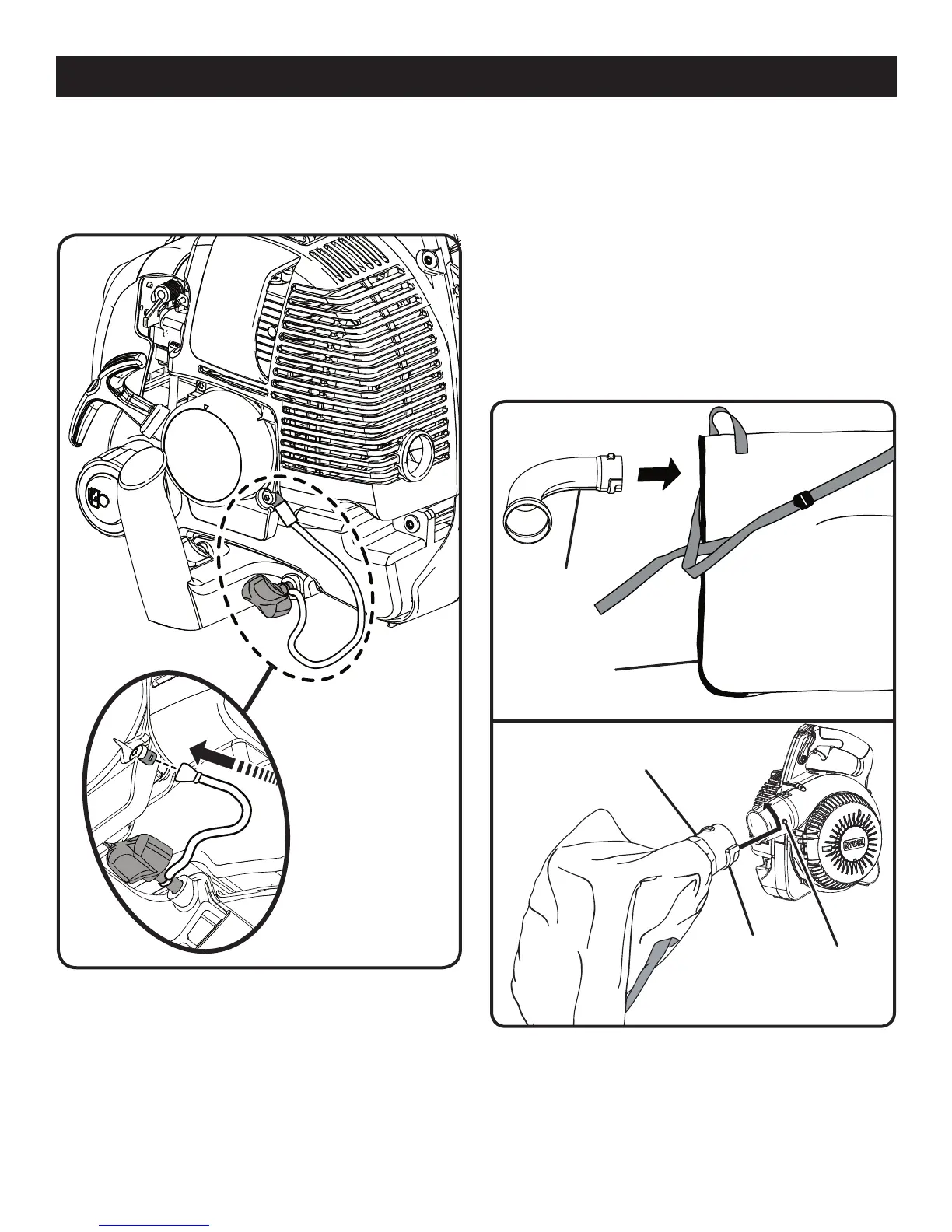

GROUNDING INSTRUCTIONS
See Figure 4.
After installing the vacuum handle, connect the grounding
wire as shown. This will help prevent static shock when using
the vacuum in low humidity conditions.
Fig. 4
INSTALLING THE VACUUM BAG
See Figures 5 - 6.
Remove the nozzle and upper blower tube from the
blower.
Unzip the vacuum bag and place the adaptor inside as
shown.
Align the raised slots on the bag adaptor with the raised
locking tabs on the blower housing outlet; push the bag
adaptor onto the housing. Twist to lock into place.
Rotate the vacuum bag until the shoulder strap is up-
right.
Make sure the vacuum bag is zipped and closed before
starting the unit.
Fig. 6
ADAPTOR INSTALLED
IN VACUUM BAG
RAISED
SLOT
RAISED
LOCKING TAB
Fig. 5
ADAPTOR
VACUUM BAG
