Fig. 16, RYRM8006
MAINTENANCE
REPLACING CUTTING BLADES
See Figures 17 - 18.
WARNING:
Only use replacement blades and blade bolts authorized
by the manufacturer of your riding mower. Unauthorized
blades and/or blade bolts could break, allowing the blade
to come loose, resulting in possible serious personal
injury and damage to the mower.
NOTE: Make certain all parts are replaced in the exact order
in which they were removed.
Move the mower to a level surface. Make sure to set the
parking brake and blade engage knob is down.
Stop the motor and remove the start key.
Raise the height of the cutting deck to its highest position
to allow access to blades.
NOTE: If necessary, raise the mower by placing on a lift or
using a jack and jack stands to gain access to the blades.

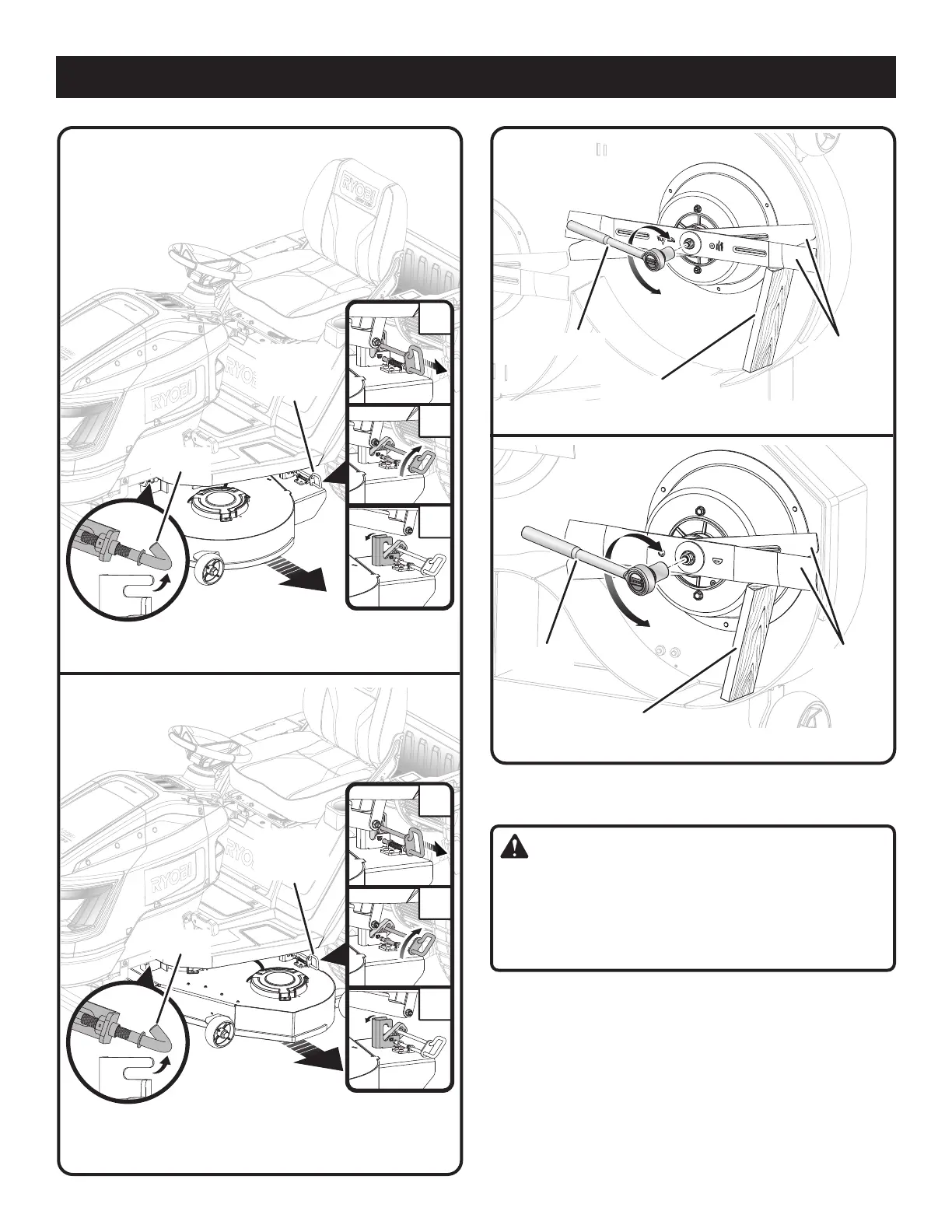

Fig. 17, RYRM8006
BLOCK OF WOOD
BLADES
WRENCH
Fig. 16, RYRM8007
Fig. 17, RYRM8007
BLOCK OF WOOD
BLADES
WRENCH
DECK
RELEASE
HANDLE
J-HOOK
J-HOOK
DECK
RELEASE
HANDLE
