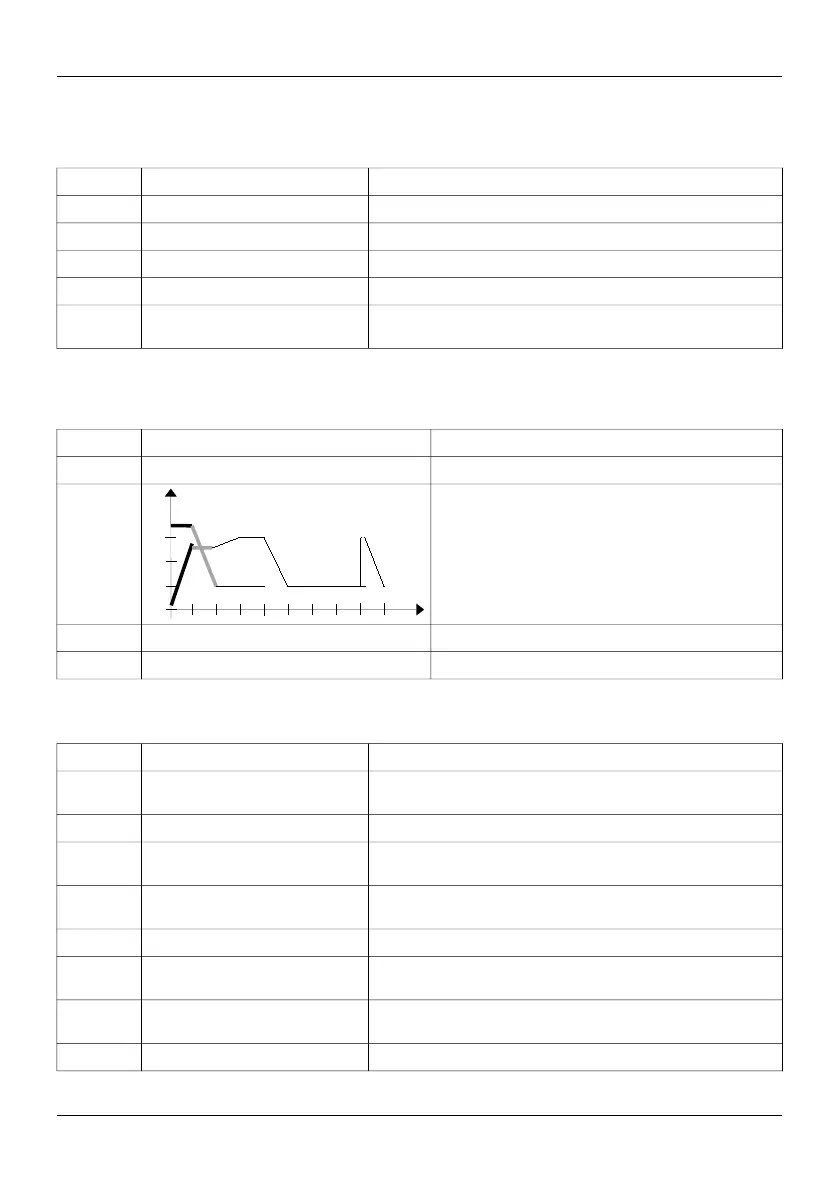

User Manual
MONITOR 1
LINE EXAMPLE DESCRIPTION
(1) Pb 1Pb ST 48V / 35A Battery Technology, Type of Curve, Battery Charger Rating
(2) 43,3 V 35A Battery voltage and current
(3) Ah= 8 Tc= 0h 15m 29s Ah charged, Charging Time in hours, min, sec
(4) PhI1 CHARGE Current charging phase, battery charger STATUS
(5) -- Messages
(e.g. phase = auto start A0, Status= BATTERY NOT
CONNECTED)
MONITOR 2
LINE EXAMPLE DESCRIPTION
(1) 43,3V 35A Battery Voltage and Current Supplied
(2)
Active charge profile with indication:
• Phases complete (thick line)
• Phase in progress (flashing line)
• Phases to execute (thin line)
(3) 7Ah PhI1 13m22s Ah charged, Charging time in hours, min, sec
(4) -- Message Possible fault or status messages
MONITOR 3
LINE EXAMPLE DESCRIPTION
(1) N.CYCLE= 7 – Ph 1
Number of charge cycle and current charge phase
E.g. : charge cycle 5 and Phase 3
(2) C1ID=1PB ST_01.0001 Charging curve unique identification
(3) Vbif=1.68V/el = 40.4V
Battery voltage at start of phase (Vbif) expressed first as element
voltage (V/el), then as absolute voltage (V)
(4) Vbef=1.81V/el = 43.4V
Battery voltage at end of phase (current) (Vbef) expressed first
as element voltage (V/el), then as absolute voltage (V)
(5) Ibif= 36A Ibef= 35A Current at start of phase (Ibif) and current at end of phase (Ibef)
(6) Tf =0h13m Tef=0h13m
Single phase time (Tf) and Overall charge time at end of phase
(Tef)
(7) Ahf= 7 AhEf= 7
Ah supplied in the selected phase (Ahf) and overall charge Ah
(AhEf)
(8) -- Message Indicates any faults occurring during the charge cycle
10 D00582-02
