700-3002-BC 10.18.2017

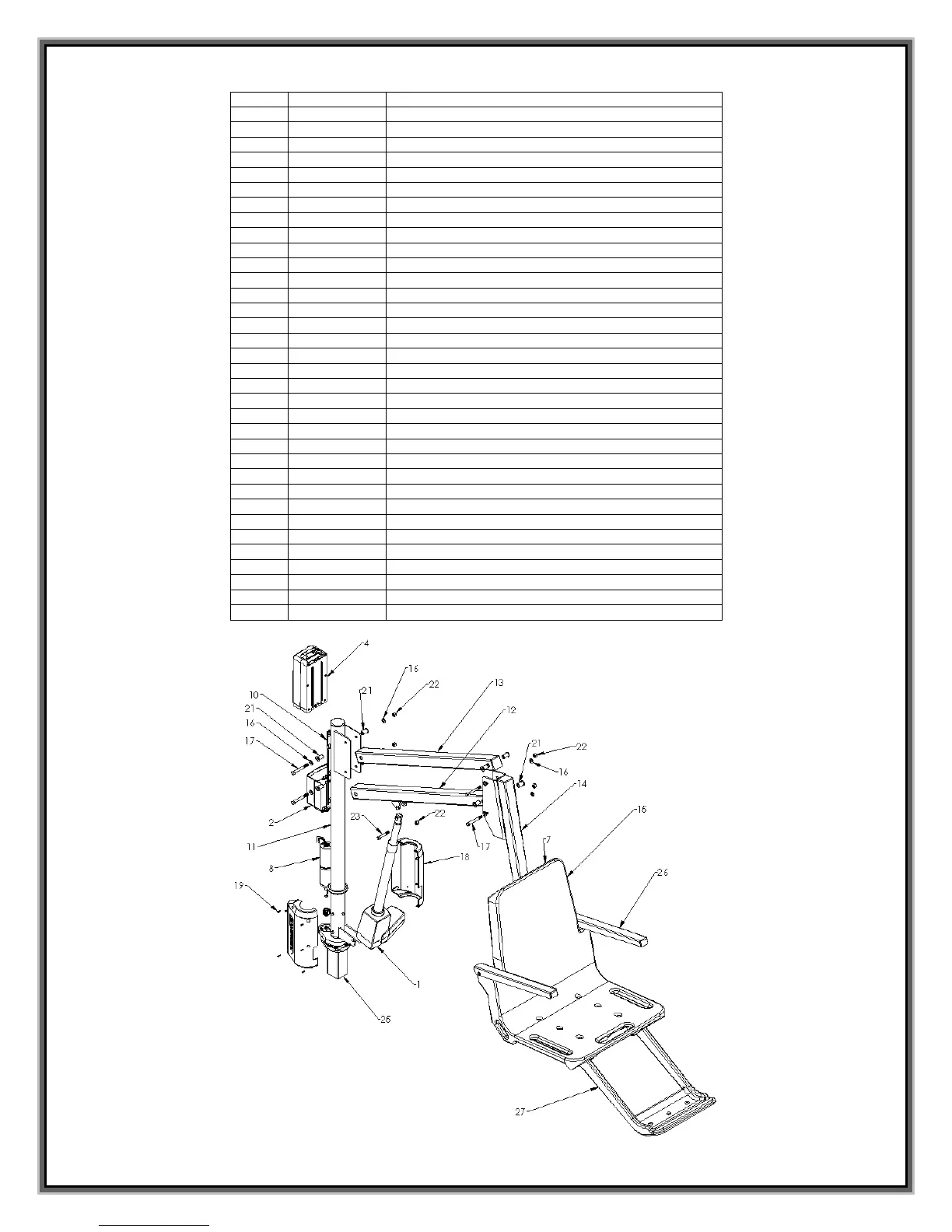

PARTS LIST
Item #
Part #
Description
1
100-5000A
LA34 Actuator
2
400-7000-BC
4 Button Controller
3
120-1920
Actuator Cable Assembly (not shown)
4
1001495-BC
Battery Pack
5
1001530-BC
Battery Charger (not shown)
6
1001600
Hand Control (not shown)
7
160-8530
Hand Control Hanger (on back of seat)
8
120-2100A
24 VDC Motor
9
120-1910
Motor Cable Assembly (not shown)
10
1001498
Battery Bracket
11
310-1000A
Mast Assembly
12
310-1200A
Actuator Arm Assembly
13
310-1300A
Support Arm Assembly
14
160-9520
Seat Frame Arm
15
160-9200
Seat Assembly, 1 PC w/ Standard Footrest
16
800-0313
Washer, Flat #3/8
17
800-2027
Screw, Hex Hd - #3/8-16 x 3.25 L
18
800-3000A
aXs2 Motor Enclosure Assembly
19
800-0330
Screw, Self-Threading #4-20 x ½ L
20
900-1000
aXs Seat Belt Assembly (Black) (not shown)
21
800-0318
Bushing, Oilite
22
800-2000
3/8-16 Nyloc Nut
23
800-0147
Screw, 3/8-16 x 2.5” L
24
300-6200L
Locking Deck Anchor (not shown)
25
AX3700-1
Spindle Housing Assembly
26
170-3000A
Arm Rest Assembly (Pair)
27
160-2300A
Footrest Kit (Gray)
28
800-0304
Screw, Hex Hd - #5/16-18 x 4.0” L
29
800-0310
Washer, Flat - #5/16”
30
800-0202
Acorn Nut, #5/16”
31
AX9006
aXs2 Total Cover (Optional Accessory, not shown)
32
900-6000
Stability Strap (Optional Accessory, not shown)
33
970-5000
Seat Cover (Optional Accessory, not shown)
34
910-1000
Battery Console Cover (Blue) (Optional, not shown)
