2. A minimum clearance area in front of the slide shall be maintained at all times as
follows:
The minimum clearance distance on either side of
the extended centerline of the slide runway shall not
be less than three feet six inches (3’-6”) at a point
no less than two feet six inches (2’-6”) from the exit
lip of the slide and extending a distance of thirteen
feet six inches (13’-6”) in front of the slide as shown
in FIGURE 3.
3. SLIDE PLACEMENT INSTRUCTIONS FOR INSTALLATIONS ON POOLS WITH
OTHER SLIDES AND/OR DIVING BOARDS
A. The minimum clearance area in front of a properly installed diving board on an
inground swimming pool is a minimum distance of three feet six inches (3’-6”) on
either side of the board’s centerline as shown in FIGURE 4. Pt. C extends a
minimum distance of “C” from the tip end of the board as shown in FIGURE 4.
The width distance “W” on either side of Pt. C is given in CHART 1 and shown in
FIGURE 4.

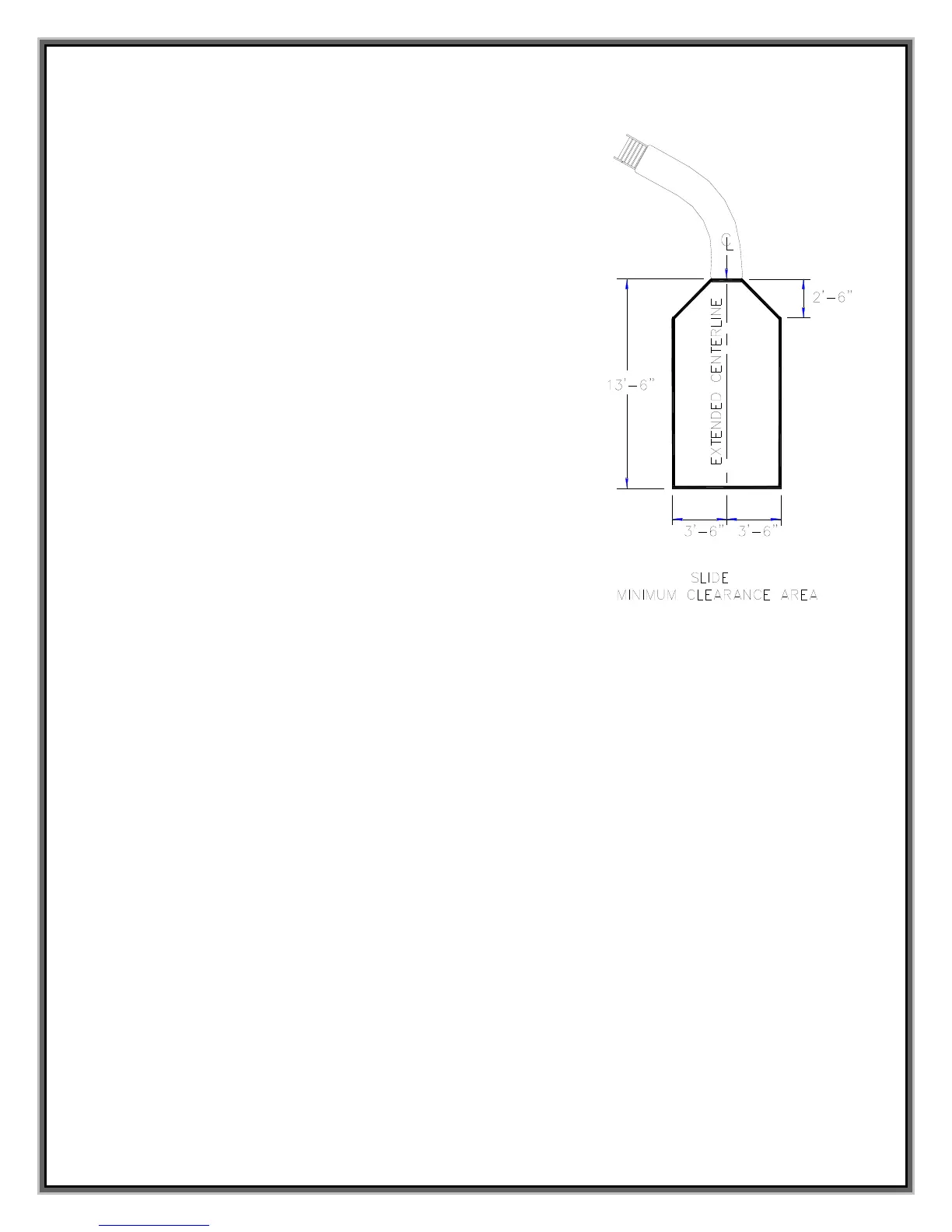

FIGURE 3
