3

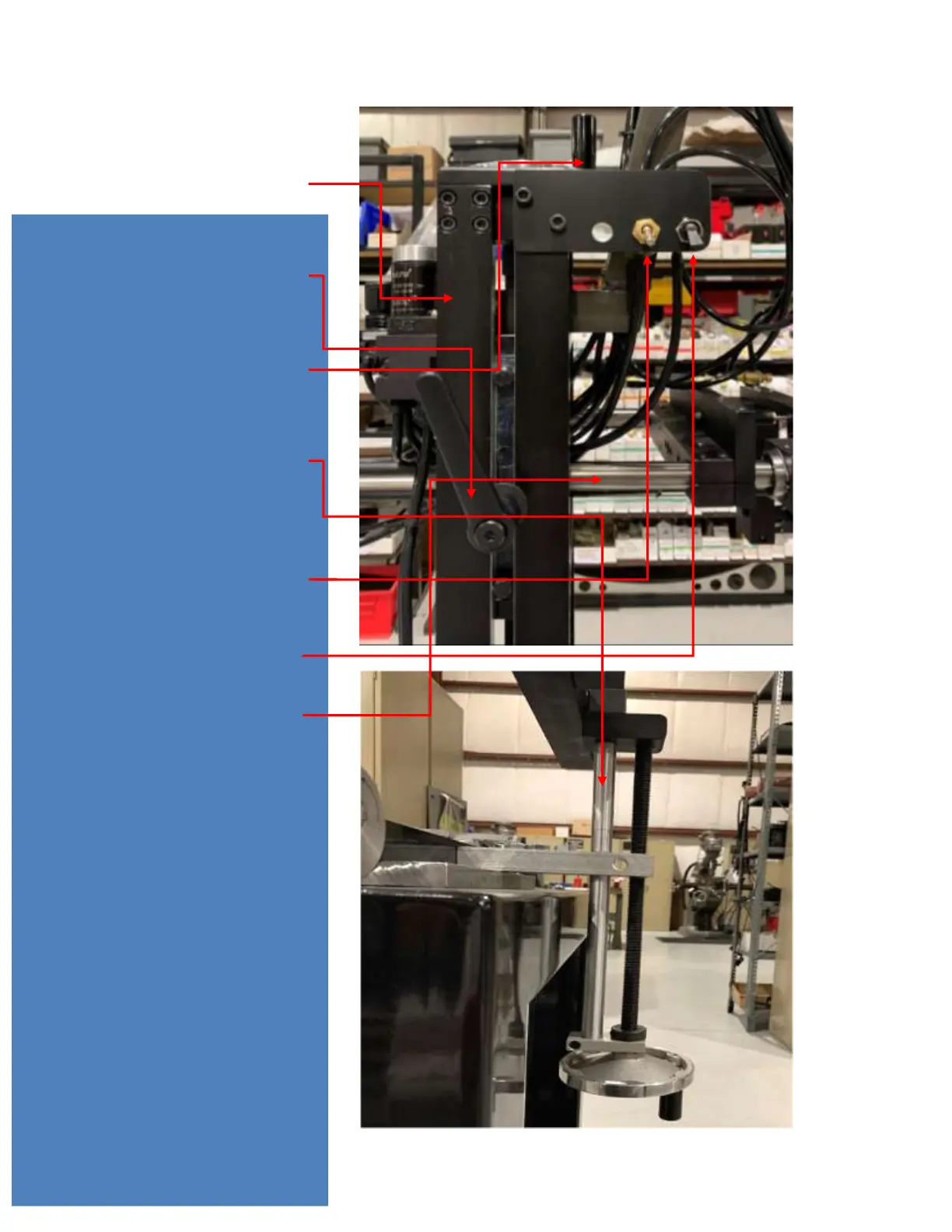

1. Press Frame Assembly:
Allows for up to 12 inches of travel for height
adjustments.
2. Adjustable Locks:
Loosen to make adjustments to carriage height
using the press frame hand wheel in conjunction
with front post rest.
3. Press Frame Hand Wheel:
Turn clockwise to raise and counterclockwise to
lower the front carriage assembly.
4. Front post rest:
Maintain parallelism to printing surface when
carriage is in the down position.
Adjustable via front post rest hand wheel.
*Refer to page _item __ for rear screen frame
holder instructions.
5. Carriage Up/Down Toggle Switch:
Lifts the carriage up and down.
See page 2 item 3 for speed adjustment.
6. Flood Hold Switch:
Performs one flood stroke without
7. Thompson shafts:
Thompson shafts should be kept free of ink and
debris for smooth and consistent operation.
