194 Car care

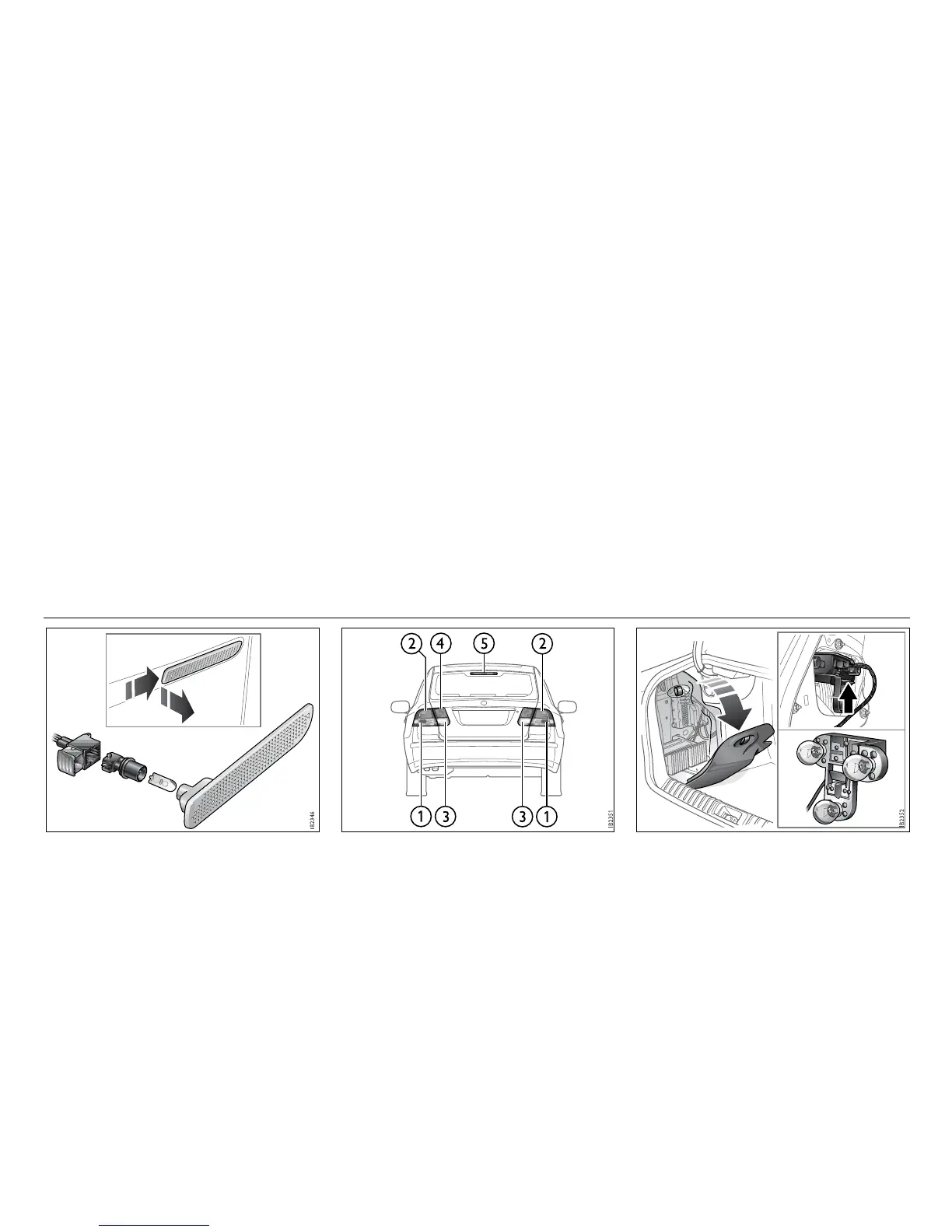

Side marker lights
1 Slide the lens rearward so that its front
part can be pulled out.
2 Fit the new bulb.
3 When refitting, make sure that the
groove in the spring engages the plastic
edge of the bumper trim.
Stop lights, tail lights and turn signal
bulbs
1 Lower the cover in the trim behind the
lights.
2 Lift the plastic lug on the lamp housing
that secures the bulb holder.
3 Carefully remove the entire bulb holder
unit from the lamp housing. Change the
bulb.
4 Refit the bulb holder. Press the bulb
holder home so that the plastic lug
snaps into place.
If a brake light bulb fails, the adjacent tail
light will act as a brake light to ensure traffic
safety. Change the broken bulb when pos-
sible.
Tail lights
1 Turn signals
2 Tail lights/stop lights
3 Reversing lights
4 Rear fog light (left-hand side)
5 High-mounted stop light
