28 Safety

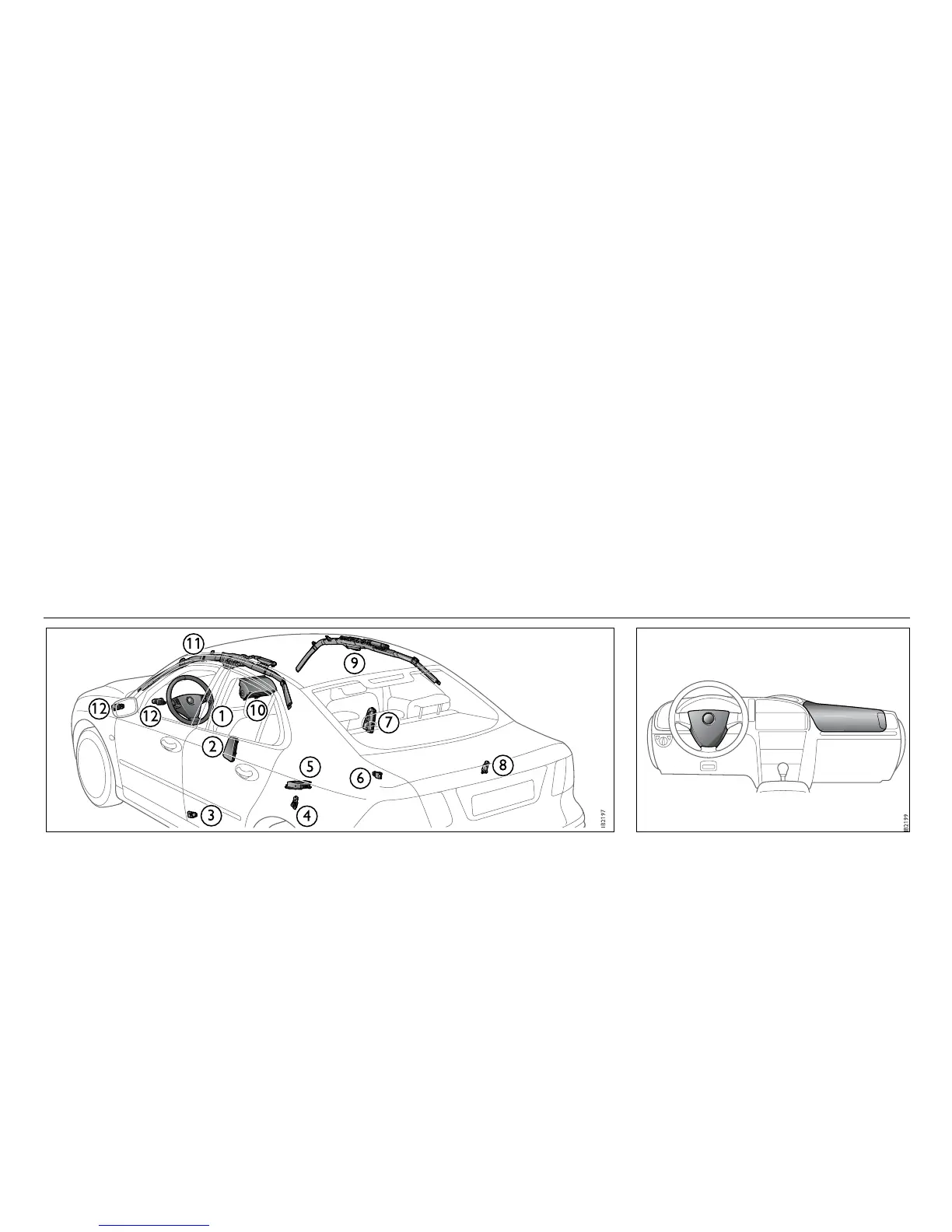

Airbag system
1 Steering wheel with integral airbag
2 Side airbag
3 Sensor, side airbags and inflatable curtains
4 Sensor, side airbags and inflatable curtains
5 Electronic control module and central sensor
6 Sensor, side airbags and inflatable curtains
7 Side airbag
8 Sensor, side airbags and inflatable curtains
9 Inflatable curtain
10 Passenger airbag
11 Inflatable curtain
12 Sensors in front bumper
Accessories and other equipment must
not be fitted to the surfaces marked as
these are where the airbags inflate in the
event of a crash.
