204 Car care and technical information

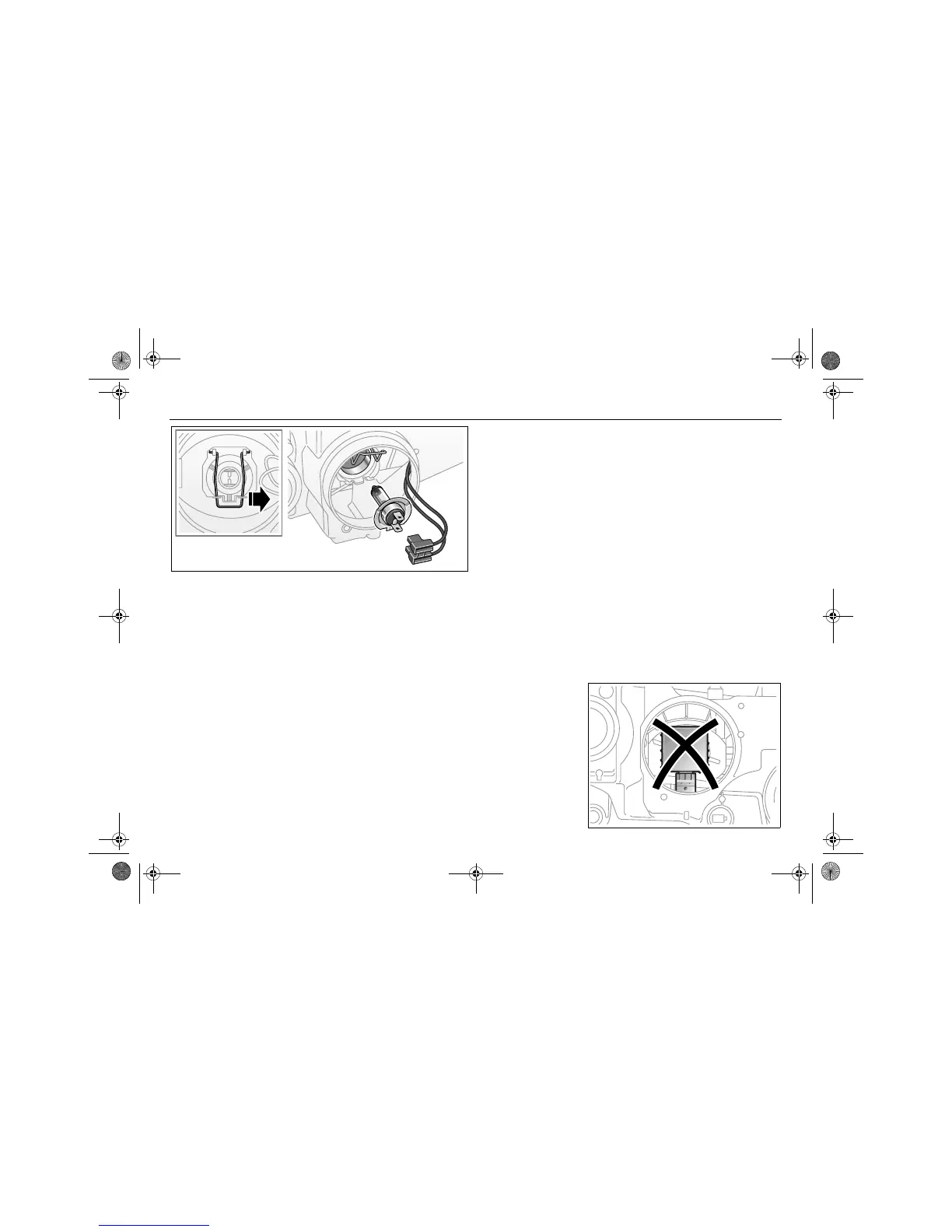

Headlight bulb for low beam (Halogen)
1 Take off the cover from the back of the lamp unit. To improve
accessibility to the right-hand headlight, hold aside the induction
air hose. To improve accessibility to the left-hand headlight,
remove the battery cover. Release the two clips along the long
sides of the cover.
2 Unplug the connector.
3 To remove the spring clip, push it in and then move it to the right.
4 Remove the bulb.
5 Without touching the glass with your fingers, insert the new bulb.
6 Line up the bulb with the guide in the reflector and secure it with
the spring clip.
7 Plug in the connector.
8Fit the cover.
Low beam bulb 3
On certain variants the low beam bulb is fitted in the same way as
the high beam bulb, without spring clips, see previous page.
IB3896
IB3898
Contact an
authorized
Saab workshop
if a Xenon
headlight
requires
replacement
95_US_MY09.book Page 204 Tuesday, April 15, 2008 11:03 AM
