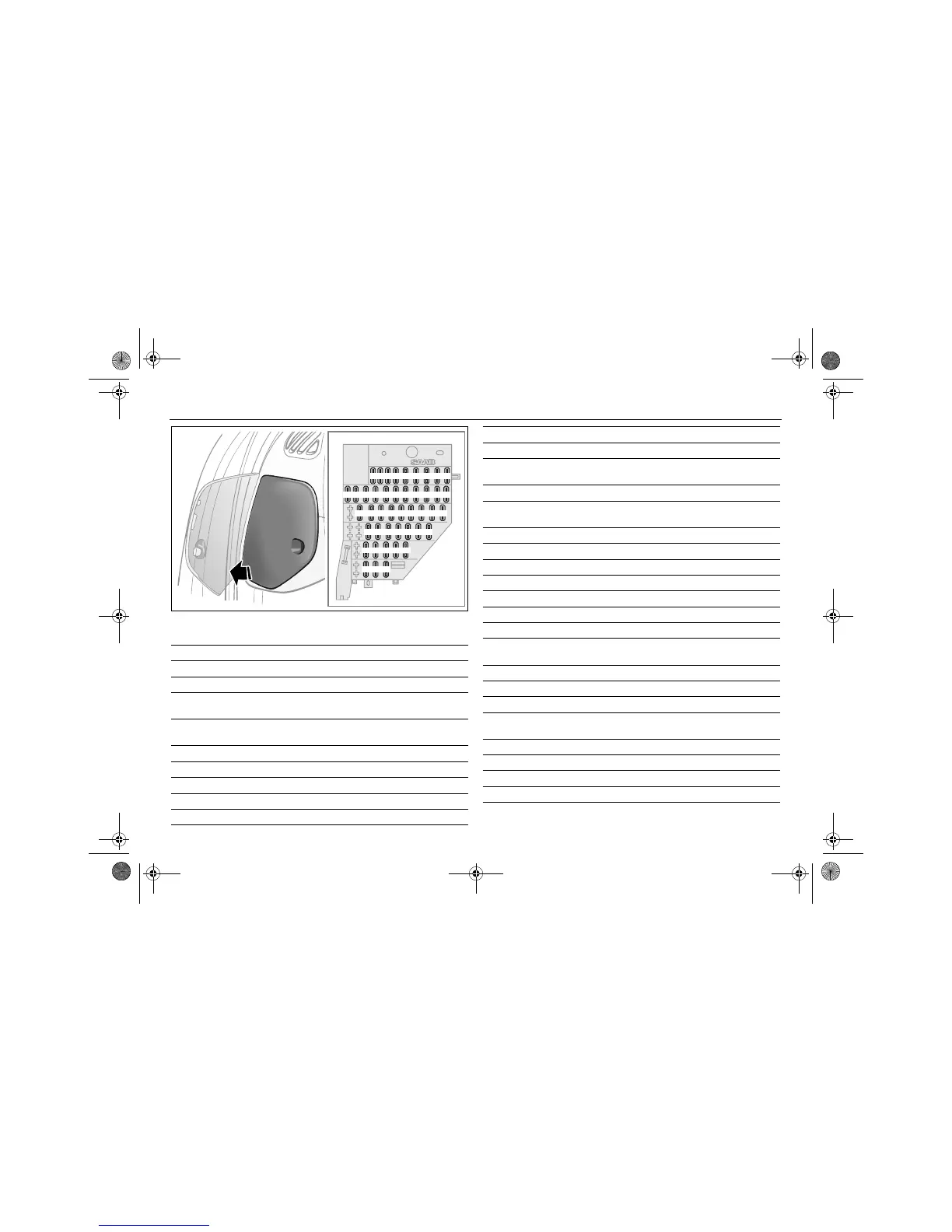

Fuse panel in instrument panel
# Amp Function
A 30 Trailer lights
B 10 Automatic transmission
C 7.5 Electric door mirrors; DICE: manual beam length
adjustment 3
1 15 Brake lights; Park Brake Shift Lock (cars with auto-
matic transmission)
2 15 Reversing lights
3 10 Parking lights and taillights, left
4 10 Parking lights and taillights, right
5 7.5 DICE / TWICE
6 30 Electric windows, right; trailer charging
6B 7.5 Brake lights, trailer
7 10 Engine injectors
8 15 Trunk lighting; trunk lock; door lighting; parking
assistant 3; SID
9 15 Audio System; CD changer 3
10 15 Heating, rear seat 3; moonroof 3, remote control
receiver
11 30 Electrically adjusted passenger seat 3
12 7.5 Automatic transmission 3
13 20 Audio System, amplifier
14 30 Ignition system, engine
15 20 Fuel pump
16 20 DICE (direction indicators)
16B – OnStar 3
17 20 Engine-management system; main instrument;
DICE/TWICE
18 40 Door-mirror heating; rear-window heating
19 10 OnStar 3; Telematics 3
20 15 ACC; interior lighting; rear fog light; high beam flasher
21 10 Audio System; rear-view mirror; load angle sensor 3;
navigation 3; Cruise Control 3
22 40 Interior fan
23 15 Central locking; navigation 3; door mirror memory 3
24 20 Main light switch
25 30 Electrically adjustable driver’s seat
IB2439
B C 1
2 3 4
5 6
A
14
12
1110
98
7
13
6B
15
16
23 24
222120
1918
17
16B
25 26 27
28 29
30 31
36
3534
33
32
39
38
37
