5 Turn on the low beam headlights and
place a piece of cardboard or equivalent
(although not directly on the lens) in front
of the headlight not being aimed. This
should allow the beam cut-off of the
headlight being aimed to be seen on the
flat surface.
6 Turn the vertical aiming screw until the
horizontal cut-off of the headlight is
aligned with the horizontal line on the
wall.
NOTICE
Do not cover a headlight directly on the
lens to improve beam cut-off when aim-
ing. Covering a headlight may cause
excessive heat build-up which may cause
damage to the headlight.

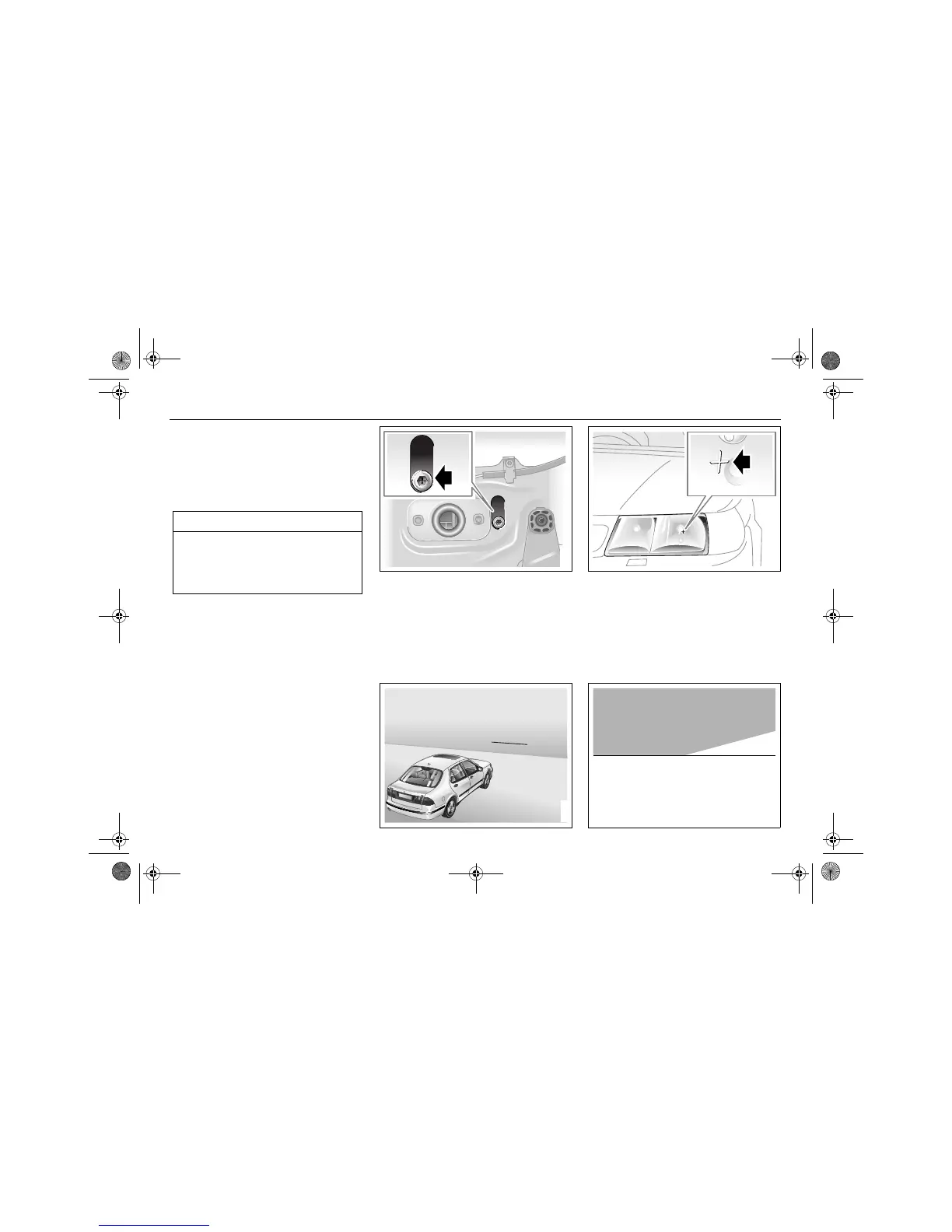

IB1951
Vertical aiming device
IB1952
Aiming marker on headlight lens
IB1953
Horizontal line on wall or other flat surface
IB1954
Correctly adjusted low beam
