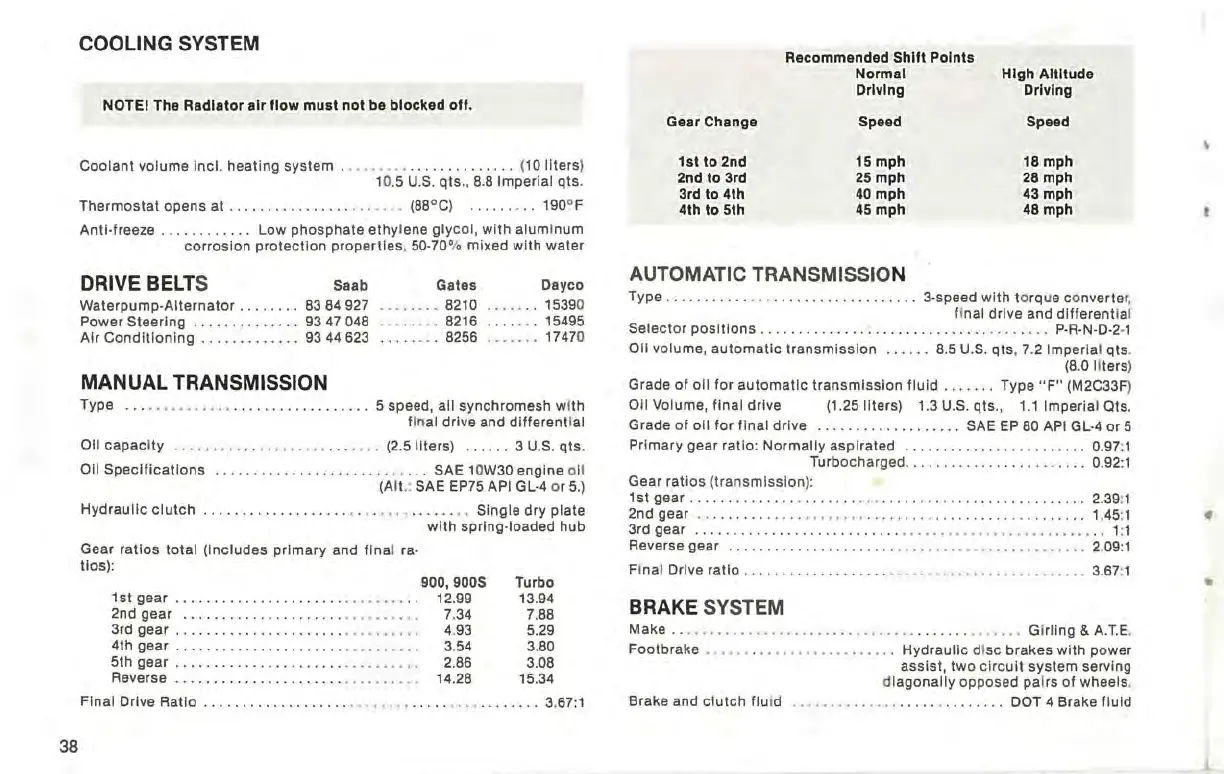

COOLING SYSTEM
NOTEI The Radiator air flow must not be blocked off.
Coolant volume Incl. heating system . .•...... .............. ( 10 liters)
10.5 U.S. qts., 8.8 Imperial qts.
Thermostat opens at ................ ....... (88°C) ...... . .. 190
0
F
Antl·freeze
............ Low phosphate ethylene glycol, with aluminum
corrosion protection properties , 50-70% mixed with water
DRIVE BELTS Saab
Waterpump-Alternator
........ 8384927
Power Steering .............. 9347048
Air Conditioning ............. 9344623
MANUAL TRANSMISSION
Gates
........ 8210
........ 8216
..... .. . 8256
Dayco
15390
15495
17470
Type ... ..•........ .................. 5 speed, all synchromesh with
final drive and differential
011 capacity ... . ..... .. ... . . . .. . ... ... . (2.5 liters) ...... 3 U.S. qts .
011 Specifications ....................... .. ... SAE 10W30 engine oil
(Alt.: SAE EP75 API GL-4 or 5.)
Hydraulic clutch ................... . . . . ...• ...... .. Single dry plate
with spring-loaded hub
Gear ratios
total (Includes primary and final ra-
tios):
900,9005 Turbo
1st
gear........ ....................... . 12.99 13.94
2nd gear
..................... ..... . . ... 7. 34 7.88
3rd gear. . . . . . . . . . . . . . . . . . . . . . . . . . • . . . . . 4. 93 5.29
4th
gear. . . . . . . . . . . . . . . . . . . . . • . • • . . . . . . . 3. 54 3.80
5th gear ...................... .... ____ . . 2.86 3.08
Reverse ...................... .......... 14.28 15.34
Final Drive Ratio
................... . __ ...•. ..... . .. . ........ 3. 67:1
Gear Change
1
silo 2nd
2nd
to 3rd
3rd
to 4th
4th to 5th
Recommended
Shift Points
Normal
Driving
Speed
15 mph
25 mph
40 mph
45 mph
High Altitude
Driving
Speed
18 mph
28 mph
43 mph
48 mph
AUTOMATIC TRANSMISSION
Type ........... ... ................... 3-speed with to rq ue converter,
final drive and differential
Selector
positions .............................. .... . ... P-R-N-D-2 ·1
011 volume, automatic transmission ...... 8.5 U.S. qts, 7.2 Imperial qts.
(8.0 liters)
Grade
of 011 for automatic transmission fluid ....... Type "F" (M2C33F)
011 Volume, final drive (1.25 liters) 1.3 U.S. qts., 1.1 Imperial Ots.
Grade
of 011 for final drive ................... SAE EP 80 API GL-4 or 5
Primary gear ratio: Normally aspirated ........................ 0.97:1
Turbocharged ........................ 0.92:1
Gear ratios (transmission):
1 st gear
.............. . ....... ... ..••. •• . • . . ................ 2.39: 1
2nd gear .. ............ ........ ................... . .. ....... 1. 45 : 1
3rd gear
........................... ...... . _ .. _ . . . . . . • . . . . . . . . . 1: 1
Reverse gear ...................... ....... •••.• ....• , ••• , ... 2. 09:1
Final Drive ratio ................... ....•..•..••.........• .... 3.67:1
BRAKE SYSTEM
Make. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .. . . . Girllng & A.T.E .
Footbrake . .
.... . ................. . Hydraulic disc brakes with power
assist,
two circuit system serving
diagonally opposed pai rs of wheels.
Brake and
clutch fluid ....... .... ... ..... . ........ DOT 4 Brake fluid
•
..
