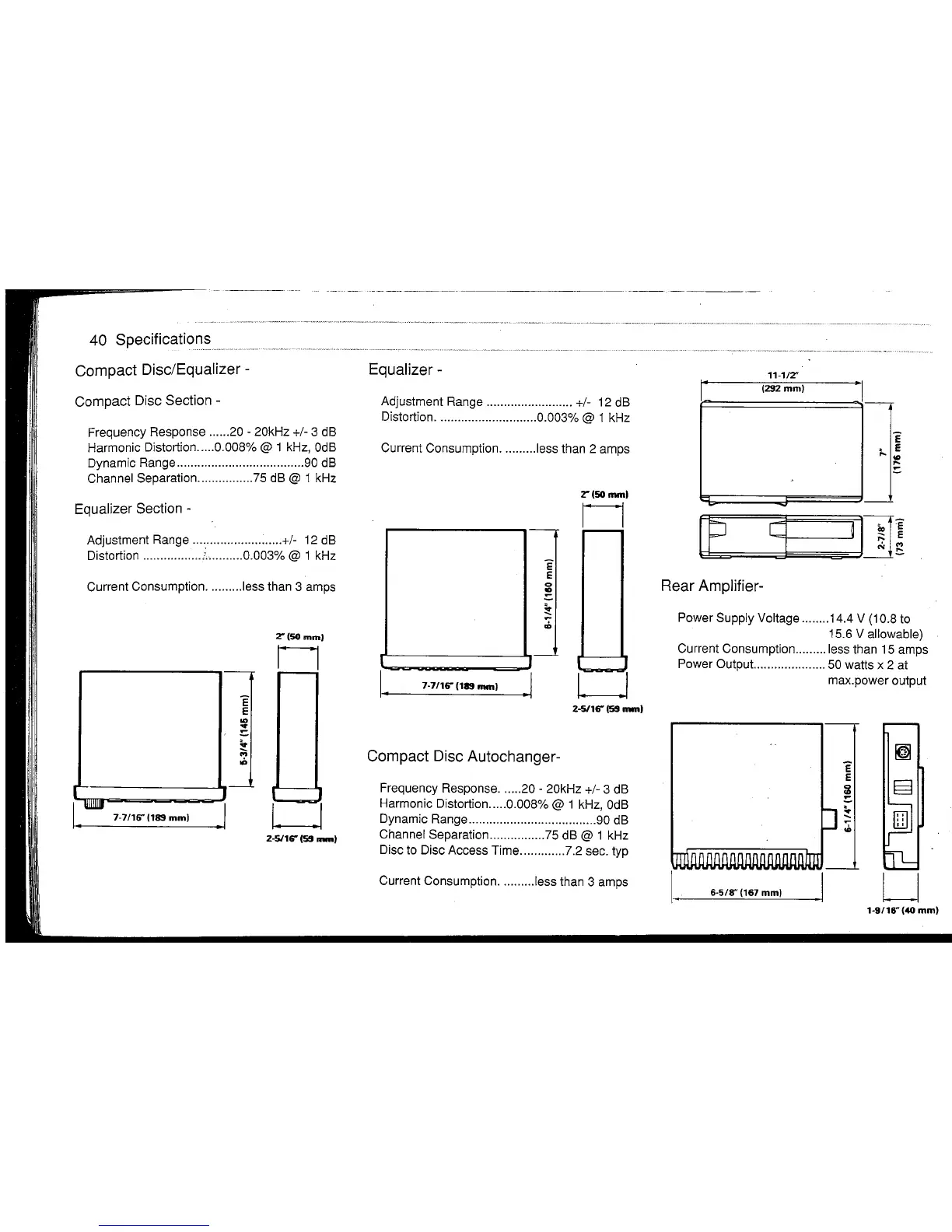

40 Specifications
Compact Disc/Equalizer -
Compact Disc Section -
Frequency Response ...... 20 - 20kHz +/- 3 dB
Harmonic Distortion .....
0.008% @ 1 kHz,
OdB
Dynamic Range .....................................
90
dB
Channel Separation ................ 75 dB @ 1 kHz
Equalizer Section -
Adjustment Range .......................... +/- 12 dB
Distortion .................
i
...........
0.003% @ 1 kHz
Current Consumption ..........
Iess than 3 amps
Z'(SOmm)
n
r---------------~I---
r--
I J
1~.--WY--7--7_/_1~
__
(1_~_m_m_)
__
~.1
~
2-511~
(59
mml
Equalizer -
Adjustment Range ......................... +/- 12 dB
Distortion .............................
0.003% @ 1 kHz
Current Consumption ..........
Iess than 2 amps
~------------~I---
E
E
o
'"
Z'(SOmml
n
r--
7-7/1~(1I9mml
I
1----1
!----------'-------...jo
I-----l
2-511~
(59
mml
Compact Disc Autochanger-
Frequency Response
......
20 - 20kHz +/- 3 dB
Harmonic Distortion .....
0.008% @ 1 kHz,
OdB
Dynamic Range ..................................... 90 dB
Channel Separation ................ 75 dB @ 1 kHz
Disc to Disc Access Time ............. 7.2 sec. typ
Current Consumption ..........
Iess than 3 amps
11-112"
I'
(292mm)
Rear Amplifier-
01
E
• E
......
~
Power Supply Voltage ........ 14.4 V (10.8 to
15.6 V
allowable)
Current Consumption ......... less than 15 amps
Power Output... ..................
50 watts x 2 at
max.power output
6-5/8" (167
mm)
LI
1-9/16"
(40
mm)
To Next Page
