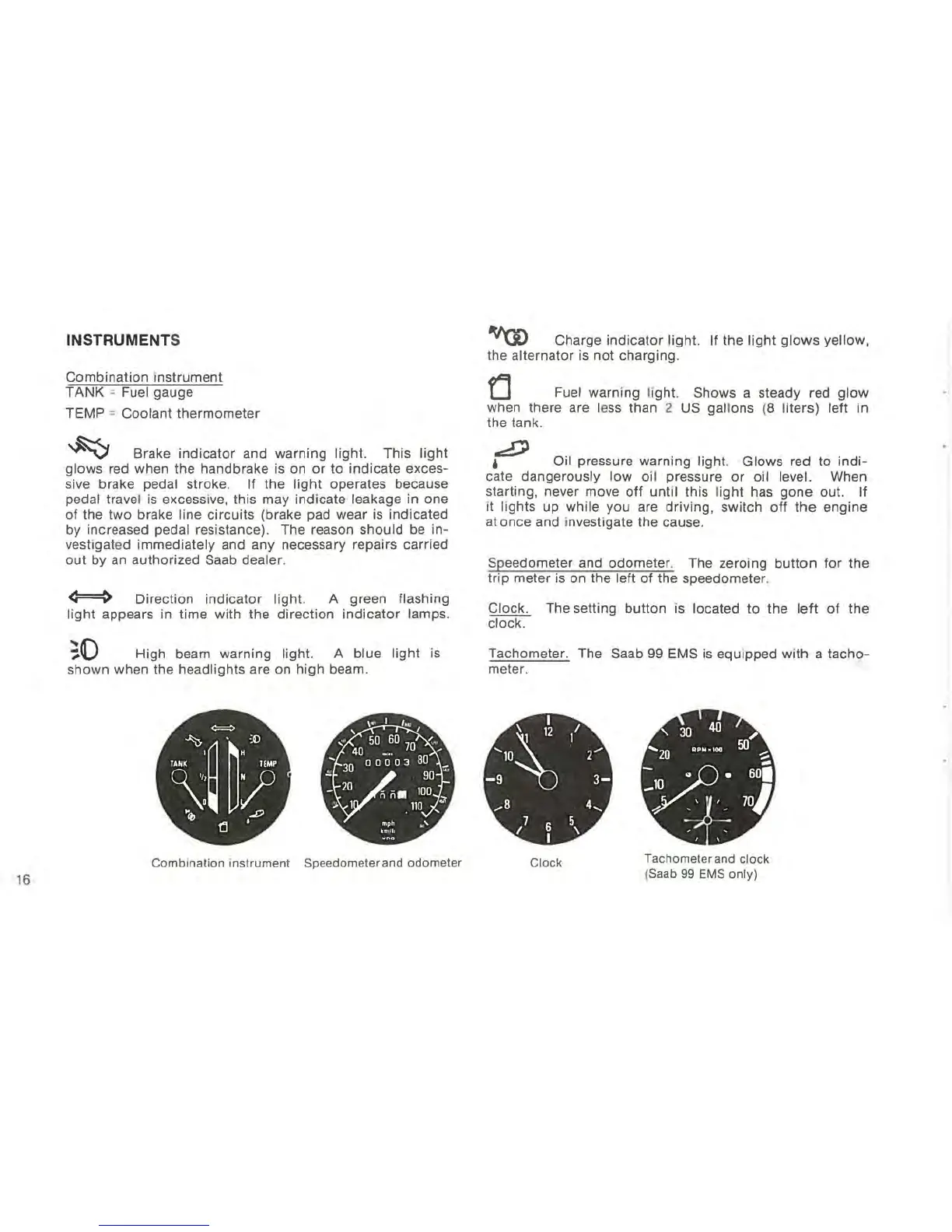

Combination instrument
TANK
- Fuel gauge
TEMP
= Coolant
thermometer
~
Brake
indicator
and warning light. This
light
glows
red when the hand brake is on
or
to indicate exces-
sive brake
pedal stroke. If the
light
operates because
pedal travel
is
excessive, this may indicate leakage in one
of
the
two
brake line
circuits
(brake pad
wear
is indicated
by increased
pedal resistance). The reason should be
in-
vestigated immediately and any necessary repairs carried
out
by
an
authorized Saab dealer.
~
Direction
indicator
light. A green flashing
light
appears in time with the
direction
indicator
lamps.
;0
High beam warning light. A blue
light
is
shown when the
headlights are on
high
beam.
Combination Instrument Speedometer and odometer
~
Charge
indicator
light. If the
light
glows
yellow,
the alternator
is
not
charging.
Fuel warning light. Shows a steady red
glow
when there are less than 2 US gallons (8 liters) left in
the tank.
.£)
O·
,
II
pressure warning light. Glows red to
indi-
cate dangerously
low
oil pressure
or
oil level. When
starting, never move
off
unt
il this
li
ght
has
gone
out.
If
it lights up while you are driving, switch
off
the
engine
at once and investigate the cause.
Speedometer and odometer. The zeroing
button
for
the
trip
meter
is
on the left
of
the speedometer.
Clock. The setting button is located
to
the
left
of
the
clock.
Tachometer. The Saab 99 EMS is equipped wi
th
a
tacho-
meter.
~
....
10
-9
,,8
7
6
/
I
Clock
/
1
5
\
2"
3-
4
....
Tachometer and clock
(Saab
99
EMS
only)
