Rev.03 - 10

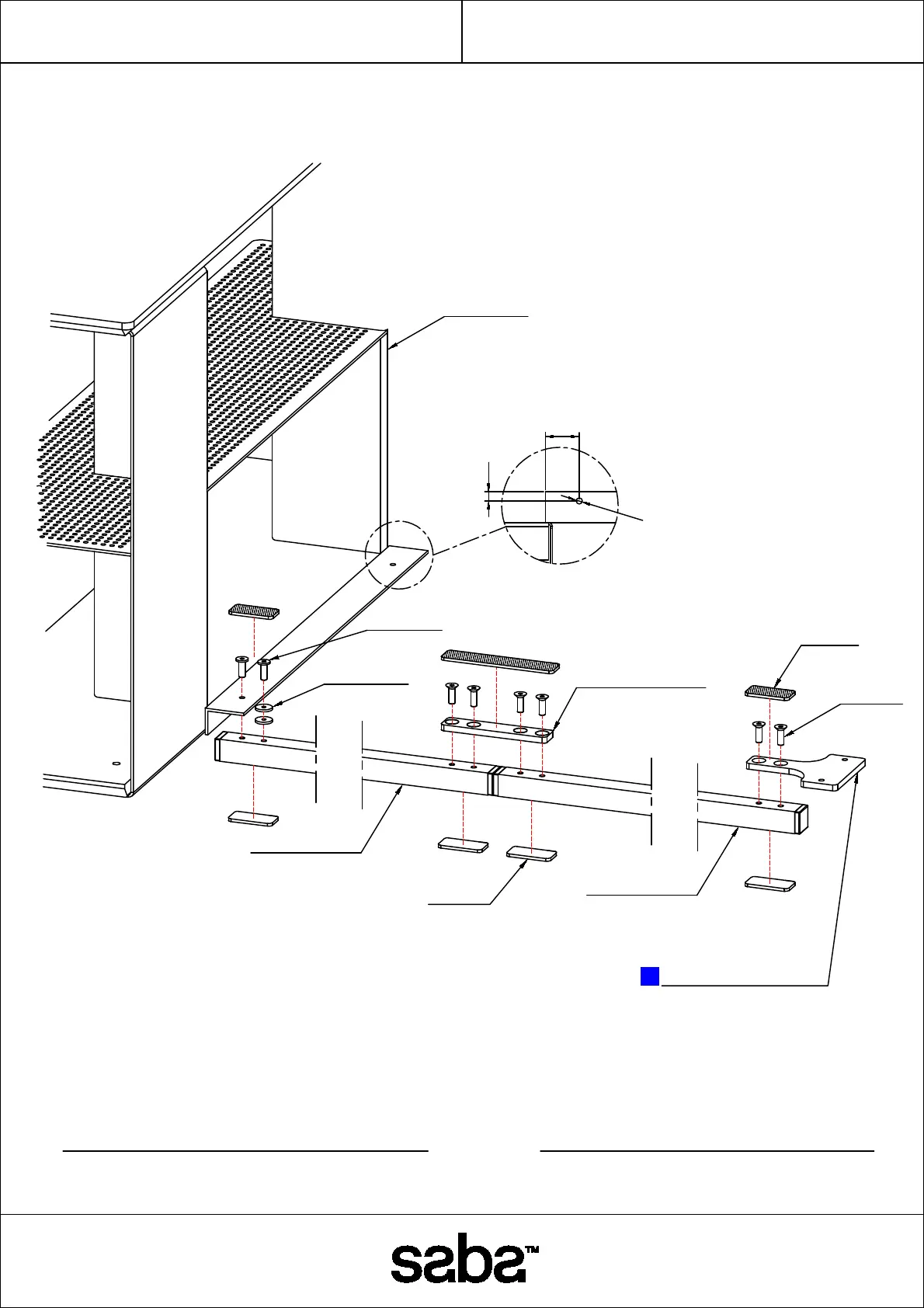

MONTAGGIO BARRE - TAVOLINO
BARS - LOW TABLE ASSEMBLY
2 - UNIRE LE BARRE CON LA PIASTRA UNIONE
COME INDICATO NELLE PAGINE PRECEDENTI.
2 - JOIN THE UNION BARS WITH THE UNION
PLATE AS INDICATED IN THE PREVIOUS PAGES.
1 - UNIRE LE BARRE CON LE PIASTRE PREMONTATE
SUGLI ELEMENTI BRACCIOLO E TAVOLINO.
1 - JOIN THE UNION BARS WITH THE PRE-MOUNTED
PLATE ON ARMREST AND LOW TABLE ARMREST.
RONDELLA
WASHER
FELTRO
FELT
TAVOLINO
LOW TABLE
PIASTRA PREMONTATA
PRE-MOUNTED PLATE
BARRA UNIONE
UNION BAR
BARRA UNIONE
UNION BAR
FELTRO
FELT
PIASTRA UNIONE
UNION PLATE
VITE
SCREW
M8x25÷30
15
54
Ø10
