D5

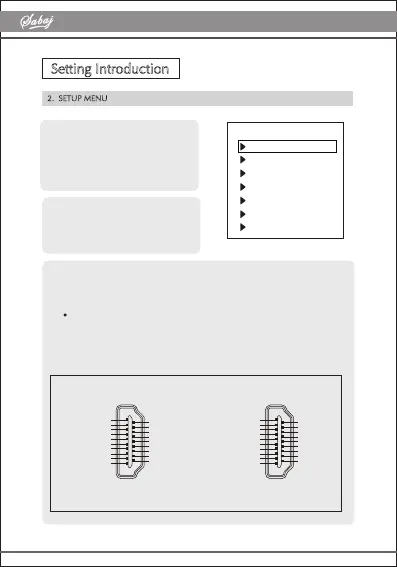

Setting Introduction
2. SETUP MENU
SETUP MENU
INPU T
OUTPUT
I2S MODE
I2S DSD L/R
FIL TER
DIMMER
SYSTEM
DATA/ DS DR+
DATA/ DS DR-
GND
LRC K/ DSDL-
LRC K/ DSDL +
GND
NC
DS DOE (1:DS D 0:PCM)
GND
NC
NC
NC
FS CH ANGE
MC LK-
MC LK +
GND
BCLK/ D SDC LK-
BCLK/ D SDC LK+
GND
I2S NORM AL
DATA/ DS DR-
DATA/ DS DR+
GND
LRC K/ DSDL +
LRC K/ DSDL-
GND
NC
DS DOE (1:DS D 0:PCM )
GND
NC
NC
NC
FS CHA NGE
MC LK-
MC LK+
GND
BCLK/ DSDC LK-
BCLK/ DSDC LK+
GND
I2 S INVE RTED
（Figure 1） （Figure 2）
1. INPUT
USB
OPTI
COAX
I2S
2. OUTPUT
LINE OUT
HP SE OUT
HP BAL OUT
3. I2S MODE
I2S NORMAL
I2S INVERTED
I2S mode settings, because this "I2S" interface is not really a unified standard
interface, so different manufacturers will have different pins definitions, so we
design a menu item to change these modes:
1. “Normal” is the interface definition we defined, as Figure 1.
2. “Inverted” is inverting the phase of "LRCK" and "DATA", as Figure 2.
I2S Pins Functions
