Engineering manual - SAB 193-233-283 S A-frame (including ATEX)
124/175
008831 en 2022.02
Installation instructions
Reactions: Unit to be seen from top
F1 1376 F3 1302
x = 0,
Y = 1070 = b
x = 3419 = L,
y = 1070
Motor
Compressor
F2 1461 F4 1383
x = 0,
y = 0
x = 3419 =l,
y = 0
Filter Oil cooler
Table 43
Calculation of tipping angle
Tipping angle = atan YK/ZG
where
YK = YG if YG < b/2
or YK = (b - YG) if YG > b/2
Calculated tipping angle
YK = YG = 519
26.1
degrees

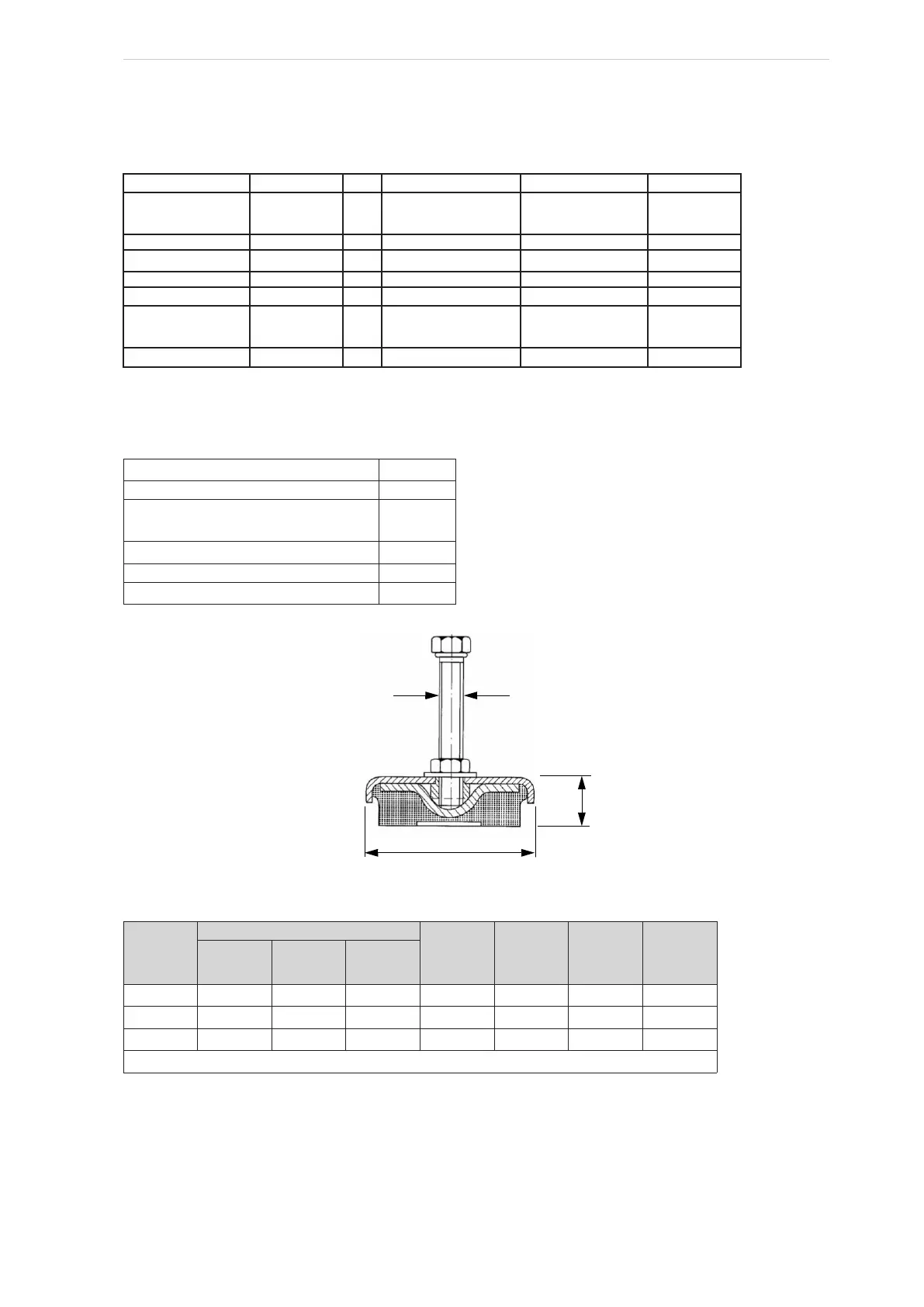

Fig. 81
Type
Dimensions in mm
Overall
bolt
length
Thread
G
Weight
(kg)
Max.
load
(Kg)
D H min. H max.
TF 3000 151 35 1) 120 M 20 2.2 3000
TF 4000 170 39 1) 120 M 20 2.9 4000
TF 6000 205 44
1) 150 M 24 4.8 6000
1) Levelling of the bolt up to its total length
Table 44: List of vibration dampers
H
G
D
