DISASSEMBLY VIENNA

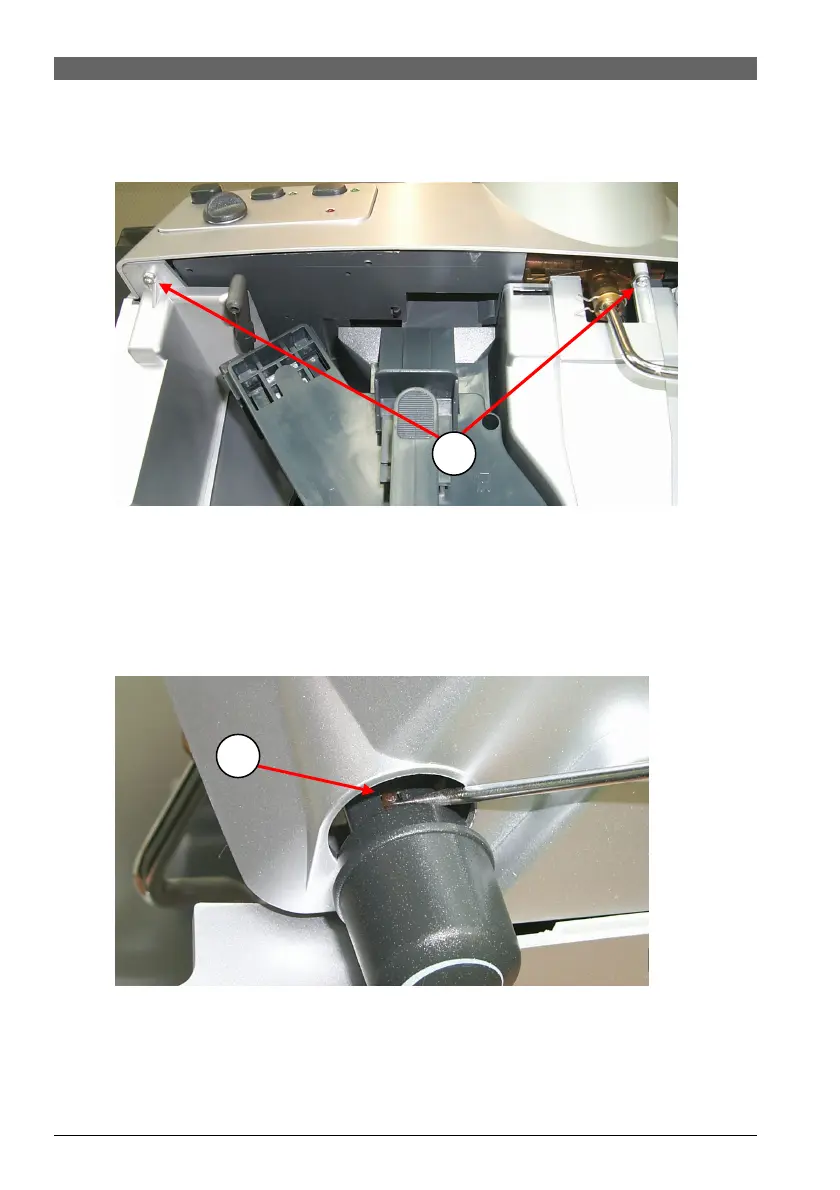

e) Remove the two bottom housing screws (1). Pull the housing left of the electronic
system slightly forwards and lift.
Fig. 3
f) Move the upper housing slightly to the left so that the notch (1) of the steam dial
is visible on the right side of the machine. Release the steam dial using a sharp
object and remove.
Fig. 4
g) Remove housing and pull water hose off.
