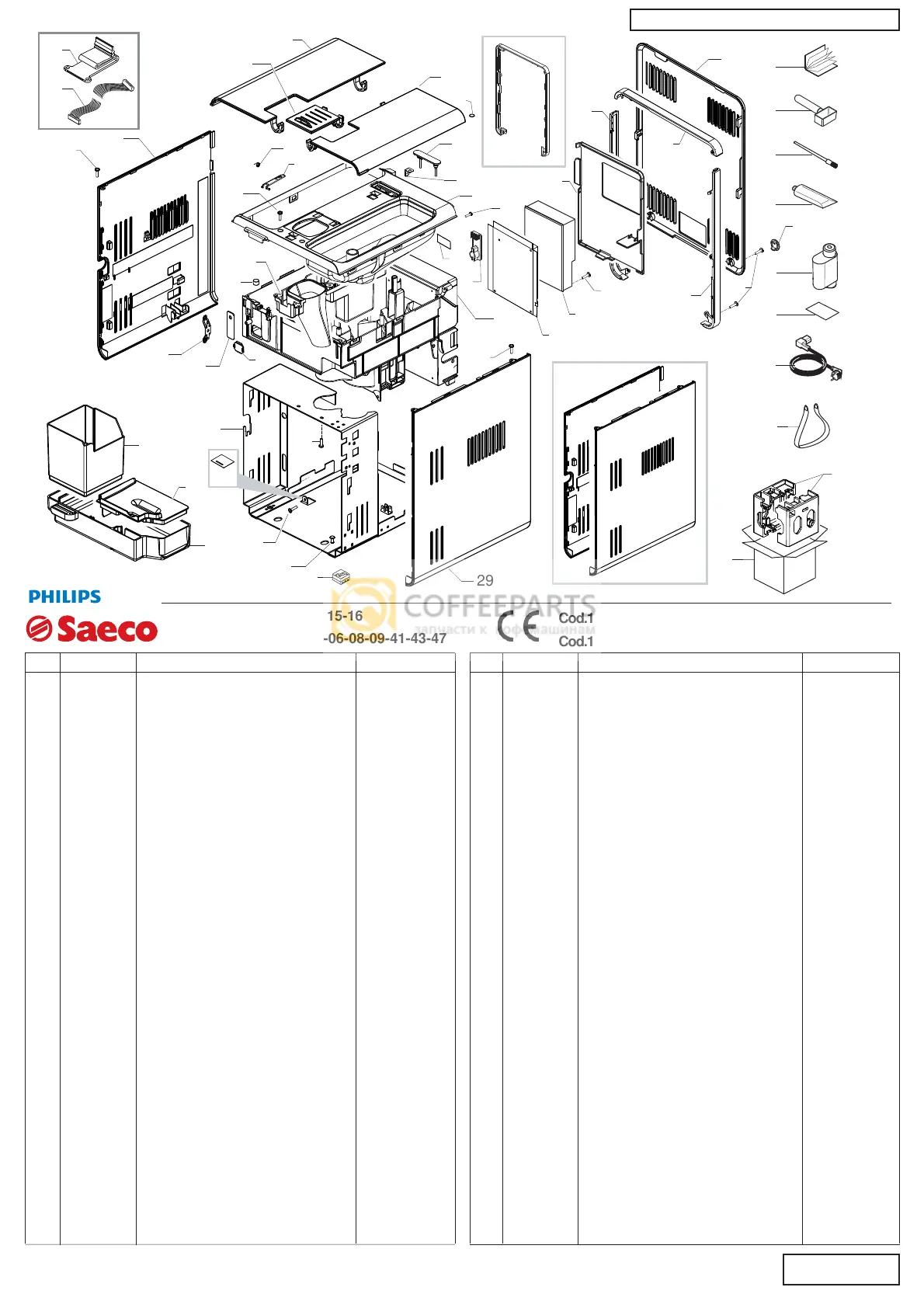

Saeco HD8854 - External and Electrical Components

HD8854/01-02-03-09-14-15-16
HD8856/01-02-03-04-05-06-08-09-41-43-47
PSA EXPRELIA
Exp. E74153 Rev.04 - 04/04/12
Cod.10003286-87-3521-22-23-24-25-26-78-79
Cod.10003738-39-60-61-3808-78-4089-90
24
37
48
12
38
28
16
21
42
17
23
12
50
12
26
27
29
30
31
51
34
33
39
40
44
32
15
35
36
13
14
18
11
1
2
3
4
5
6
7
8
9
12
12
46
47
45
12
25
49
19
22
20
43
10
41
POS CODE
DESCRIPTION NOTE
DESCRIPTION
CODEPOS
NOTE
01 15001997 MANUAL PSA HD8854/HD8856 MDS IT
15001998 MANUAL PSA HD8854/HD8856 MDS DE
15001999 MANUAL PSA HD8854/HD8856 MDS GB
15002047 MANUAL PSA HD8854/HD8856 MDS FR
15002330 MANUAL PSA HD8854/HD8856 MDS ES
15002331 MANUAL PSA HD8854/HD8856 MDS PT
15002332 MANUAL PSA HD8854/HD8856 MDS NL
15002333 MANUAL PSA HD8854/HD8856 MDS SV
15002334 MANUAL PSA HD8854/HD8856 MDS NO
15002335 MANUAL PSA HD8854/HD8856 MDS FI
15002336 MANUAL PSA HD8854/HD8856 MDS DA
15002337 MANUAL PSA HD8854/HD8856 MDS GR
15002338 MANUAL PSA HD8854/HD8856 MDS PL
15002339 MANUAL PSA HD8854/HD8856 MDS RU
15002340 MANUAL PSA HD8854/HD8856 MDS UA
15002341 MANUAL PSA HD8854/HD8856 MDS HU
15002342 MANUAL PSA HD8854/HD8856 MDS CS
15002343 MANUAL PSA HD8854/HD8856 MDS SK
15002344 MANUAL PSA HD8854/HD8856 MDS RO
15002345 MANUAL PSA HD8854/HD8856 MDS BG
15002346 MANUAL PSA HD8854/HD8856 MDS CR
15002347 MANUAL PSA HD8854/HD8856 MDS SL
15002348 MANUAL PSA HD8854/HD8856 MDS SR
15002582 MANUAL PSA HD8854/HD8856 MDS CHN
15002584 MANUAL PSA HD8854/HD8856 MDS KOR
15002585 MANUAL PSA HD8854/HD8856 MDS TWN
15003143 MANUAL PSA HD8854/HD8856 MDS PT/BRA
02 146680850 BLACK COFFEE MEASURE SMART
03 127390100 BRUSH FOR CLEANING
04 11028379 PSA KLUBER TRIBOSTAR SIL 2 TUBE 5GR.
05 21001404 ACC SAE BRITA UNI.WAT.FILTERX1 EUR-ASIA
06 0301.961 STICKER FOR WATER HARDNESS TEST
07 183911050 BLACK POWER CABLE SCHUKO L=1200MM
183940650 BLACK POWER CABLE AUSTRALIA L=1200
11004247 BLACK POWER CABLE RVV 3X1 CHINA L=1200MM
183930650 POWER CABL.CH BLACK 3X1 H05VV-F L=1200
11001985 BLACK POWER CABLE KOREA 3X1 L=1200
183970350 BLK POWER CABLE 3X1 H05VV-F UK L=1200MM
11004246 BLACK POWER CABLE TAIWAN HVCTF L=1200
183921950 POWER CABLE SJT3 USA BLACK UL L=1200
183921950 POWER CABLE SJT3 USA BLACK UL L=1200
17800330 BLACK POWER CABLE BRAZIL L=1200
17800019 BLACK POWER CABLE BRAZIL L=1200
08 13001097 BAND FOR LIFTING L=1800 H=300 MM MYB9
09 20006892 KIT PS-E INSERT FOR BOX MDS
10 17000111 BLACK COVER CONDUCTING SEAL MDS
11 13001130 DISPLAY BOX MDS PSA EXPRELIA WE
13001252 DISPLAY BOX MDS PSA EXPRELIA CEE
13001358 DISPLAY BOX MDS PSA EXPRELIA USA
13001358 DISPLAY BOX MDS PSA EXPRELIA USA
12 12000450 SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
13 17000399 SB/SS GROUND CONT.DOOR COVER MDS/H ASSY.
UP TO S/N
TU901208034135
TU901208034135
11026338 SB/SS GROUND CONT.DOOR COVER MDS/H ASS
FROM S/N
TU901208034136
TU901208034136
11024933 BLACK GROUND CONTAINER DOOR S/SCR.MDS/P
14 17000398 SB/SS WATER CONT.DOOR COVER MDS/H ASSY.
UP TO S/N
TU901208034135
TU901208034135
11026339 SB/SS WATER CONT.DOOR COVER MDS/H ASSY.
FROM S/N
TU901208034136
TU901208034136
11023040 BLACK WATER CONTAINER DOOR MDS/P
15 11028990 SB/SS LEFT SIDE PANEL V2 MDS/H ASSY.
FROM S/N
TU901208034136
TU901208034136
UP TO
TU901208034135 SEE POSITION 51
TU901208034135 SEE POSITION 51
11022955 BLACK LEFT SIDE PANEL MDS/P
17000804 SB/SS LEFT SIDE PANEL W/FAST.MDS/H ASSY. ONLY USA
17000804 SB/SS LEFT SIDE PANEL W/FAST.MDS/H ASSY. ONLY USA
UP TO S/N
TU901208034135
TU901208034135
11028929 SB/SS LEFT SIDE PANEL W/FAST.MDS/H ASSY. ONLY USA
FROM TO S/N
TU901208034136
TU901208034136
16 11023035 SS SPRING FOR WATER CONTAINER LEVER MDS
17 11022425 YELLOW LEVER FOR WATER CONTAIN.S/SC.MYB9
18 17000400 SB/SS BEAN CONTAIN.DOOR COVER MDS/H ASSY
UP TO S/N
TU901208034135
TU901208034135
11026340 SB/SS BEAN CONTAIN.DOOR COVER MDS/H ASS
FROM TO S/N
TU901208034136
TU901208034136
11023046 BLACK BEAN CONTAINER DOOR MDS/P
19 12001330 TRANSP.ROUND ADHESIVE FOOT SJ-5382
20 17000113 BLACK COVER CASING V2 MDS
21 11022950 BLACK GROUND COFFEE HOPPER PLATE MDS
22 11023060 BLACK HORIZONTAL MOUNTING PLATE MDS
23 11022938 BLACK STEEL CASING MDS ASSY.
24 11000651 WATER LEVEL SENSOR BOARD P124
25 11024263 PWR BOARD MDS 230V
11021342 PWR BOARD MYB9/MDS 120V 120V
11021342 PWR BOARD MYB9/MDS 120V 120V
26 11023061 BLACK PWR BOARD COVER MDS
TABLE 1a/8
