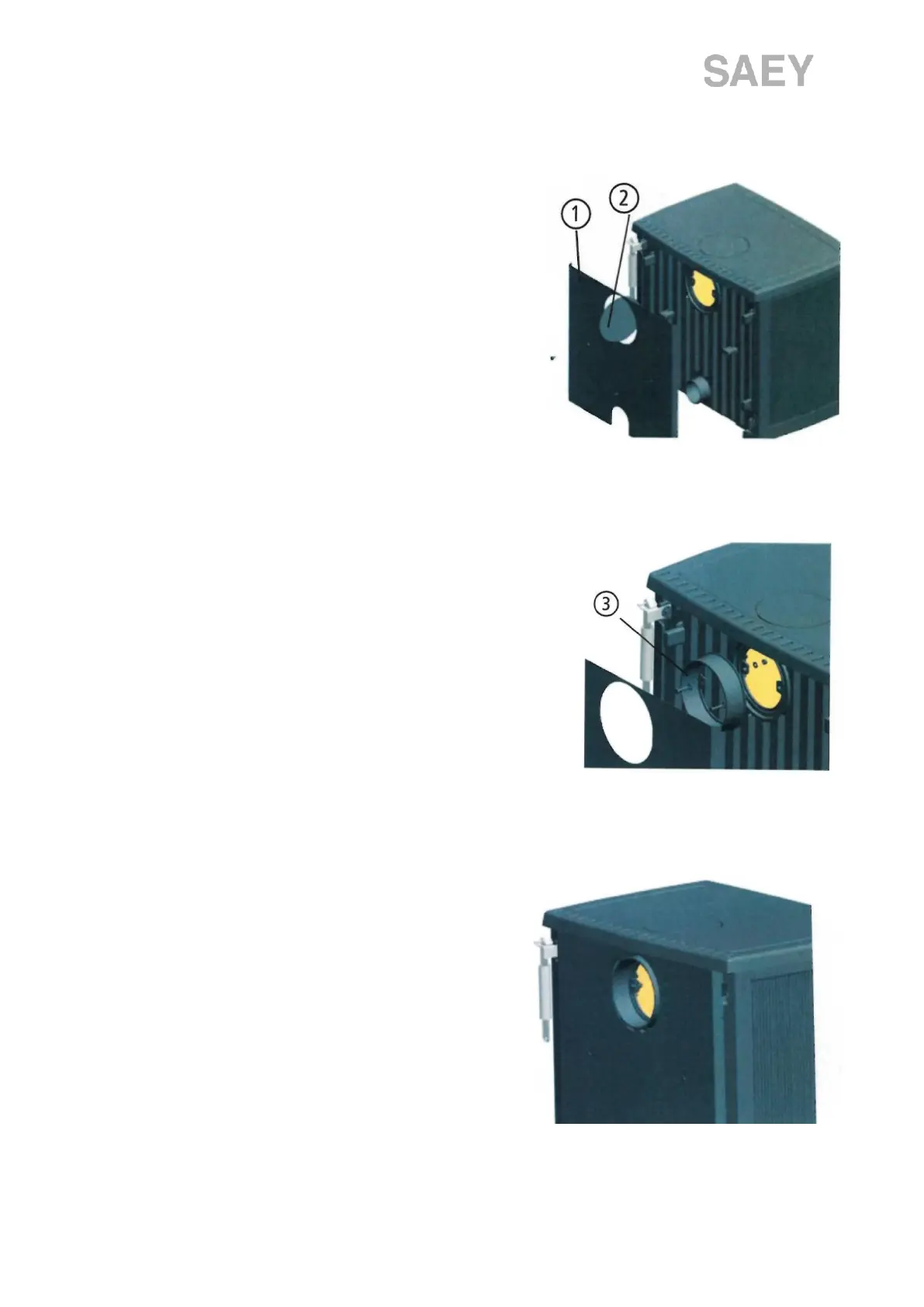

Installing the stove adapter when choosing rear connection
1) Back wall / heat shield must be taken off –
2 screws M6 x 8 mm
2) Remove the small round cover in the back wall
Fig. 4.1 Remove the back wall
3) Screw the stove adapter on the backside –
with 2 hex bolts M6 x 20 / 2 hex bolts M6,
4x clout U18, SW 10 mm
Fig. 4.2 Install the stove adapter on the back side
4) Re-install the back wall / heat shield back in position
Fig. 4.3 Re-install the back wall
