4.2 Knee control model(SDE-L60)

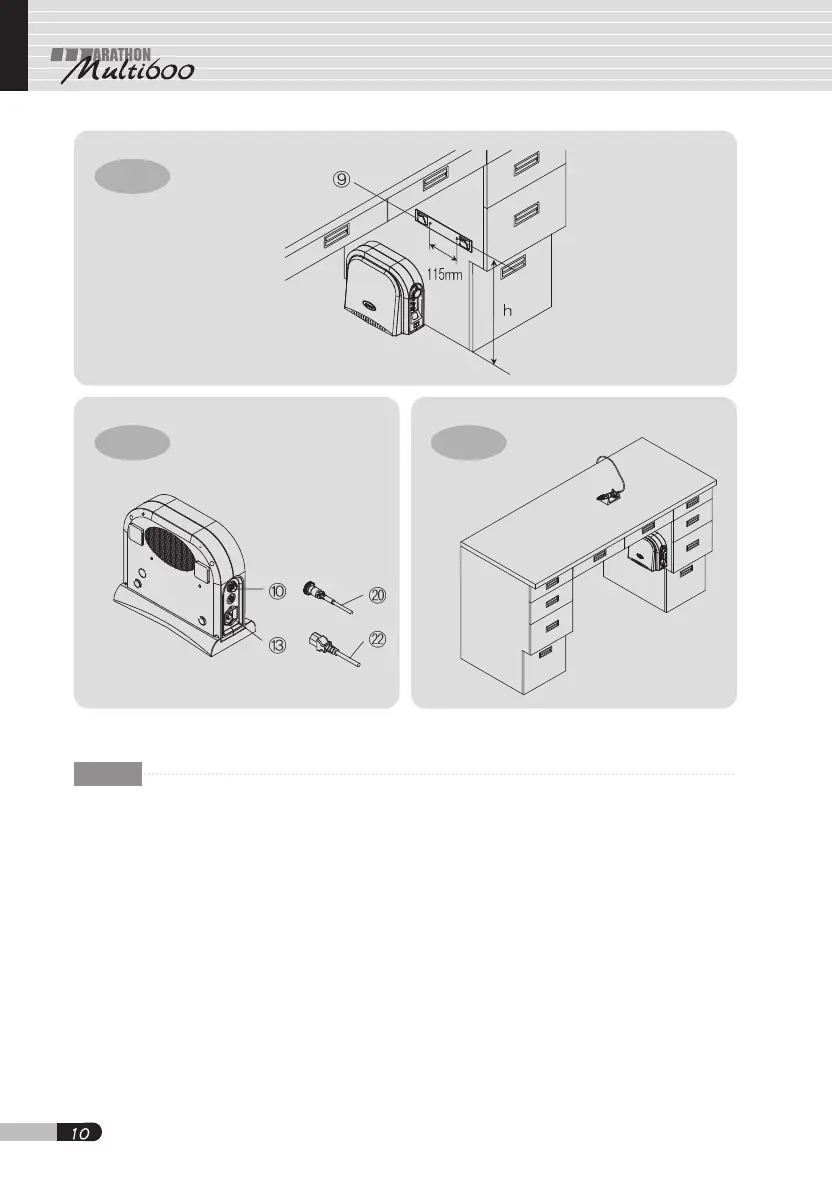

4.2.1 Set mounting bracket ⑨ to a proper place
for knee control under your technical desk
as shown in Fig. 9, using bolts and screws.
* The recommended height of the mounting
bracket from the bottom is:
1) 520~550mm for oriental people
2) 530~580mm for western people
4.2.2 As shown in Fig. 9, firmly mount the
control unit bracket in the proper direction
after checking their holes.
4.2.3 Plug motor cord ⒗ into motor connector
⑩ in the rear of the control unit in the
proper direction, and then tighten the plug
nuts firmly[Fig. 10].
4.2.4 Plug power cord into power connector
⑬ located in the rear of the control
unit[Fig. 10].
CAUTION
1. While setting the mounting bracket,
special care should be taken for a bolt or
screw head not to be out of the surface of
the bracket.
Fig-9
Fig-10 Fig-11
