5.4 – CYLINDER CM.50 (sold separately – code SG FLBATPLUSCY2)
For the assembly of the 50 cm cylinder it is possible to refer to the images relating to the
installation of the 11 cm cylinder, with the only difference that this second cylinder is not
supplied with the 80° frost filter, so it must not be considered during installation of this part.
1. Insert the cylinder cm.50 by aligning the 3 grooves present on the connecting ring of the
same, with the relative teeth on the projector
2. As soon as the cylinder is inserted, rotate it clockwise about 5 degrees, so as to block the
grooves in the teeth. The rotation is considered completed when the connecting ring, and
therefore the cylinder, they block.
3. Insert the M4x8 locking knob to prevent accidental unlocking of the cylinder.
WARNING: the insertion of the M4x8 locking knob is mandatory, in order to prevent accidental
unlocking of the cylinder.

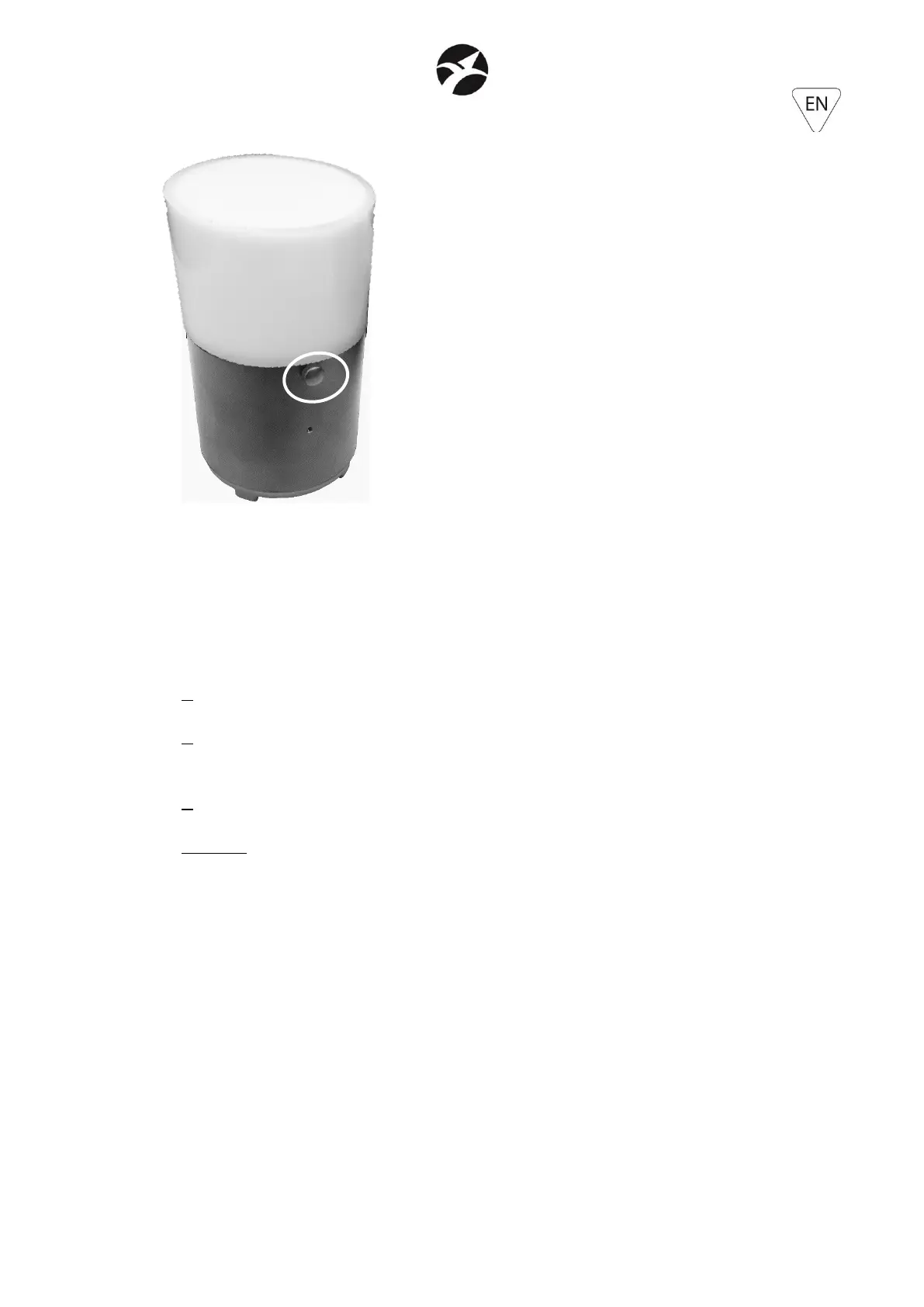

Cylinder cm.11 correctly installed, with
M4x8 locking knob correctly fixed.
