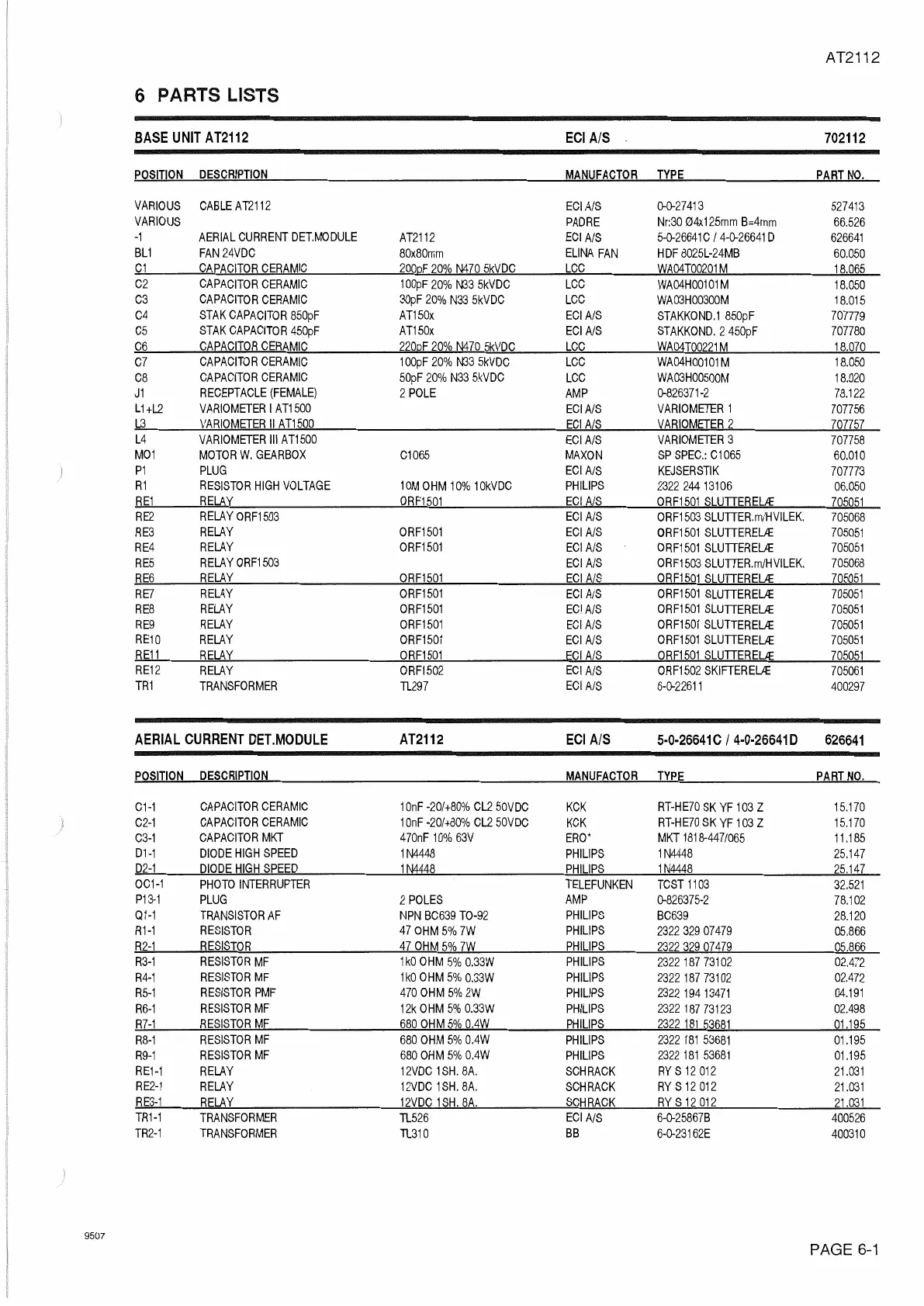

PARTS LISTS
BASE UNIT AT2112
ECI A/S
702112
POSITION DESCRIPTION
MANUFACTOR
TYPE
PART NO.
VARIOUS GABLE AT2112
ECI A/S
0-0-27413
527413
VARIOUS
PADRE Nr:30 04x125mm B=4mm
66.526
-1 AERIAL CURRENT DET.MODULE
AT2112
ECI A/S
5-0-26641 C / 4-0-26641 D
626641
BL1 FAN 24VDC 80x80mm
ELINA FAN HDF 8025L-24MB
60.050
C1 CAPACITOR CERAMIC
200i;f 20°b N470 5kVDC
LCC WA04T00201 M
18.065
C2 CAPACITOR CERAMIC
1 OOpF 20% N33 5kVDC
LCC WA04H00101 M
18.050
C3 CAPACITOR CERAMIC 30pF 20% N33 5kVDC
LCC WA03H00300M
18.015
C4 STAK CAPACITOR 850pF
AT150x
ECI A/S STAKKOND.1 850pF
707779
C5 STAK CAPACITOR 450pF
AT150x
ECI A/S STAKKOND. 2 450pF 707780
C6 CAPACITOR CERAMIC
220QF 20°~ N470 5kVDC LCC WA04T00221 M
18.070
C7 CAPACITOR CERAMIC 1 OOpF 20% N33 5kVDC
LCC WA04H00101 M
18.050
C8 CAPACITOR CERAMIC
50pF 20% N33 5kVDC LCC WA03H00500M
18.020
J1 RECEPTACLE (FEMALE)
2 POLE AMP 0-826371-2
78.122
L1+L2
VARIOMETER 1AT1500
ECI A/S VARIOMETER 1
707756
L3
VARIOMETER II AT1500
ECI ALS
VARIOMETER 2
707757
L4 VARIOMETER III A T1500
ECI A/S VARIOMETER 3
707758
M01 MOTOR W. GEARBOX C1065
MAXON SP SPEC.: C1065
60.010
P1
PLUG
ECI A/S KEJSERSTIK
707773
R1 RESISTOR HIGH VOLTAGE
10MOHM 10% 10kVDC PHILIPS 2322 24413106
06.050
RE1 RELAY ORF1501
ECI ALS
ORF1501 SLUTTEREUE
705051
RE2
RELA Y ORF1503
ECI A/S ORF1503 SLUTTER.m/HVILEK. 705068
RE3
RELAY
ORF1501
ECI A/S
ORF1501 SLUTTEREUE
705051
RE4
RELAY
ORF1501
ECI A/S ORF1501 SLUTTEREUE
705051
RES
RELAYORF1503
ECI A/S ORF1503 SLUTTER.m/HVILEK. 705068
RE6
RELAY
ORF1501
ECI ALS
ORF1501 SLUTTEREUE
705051
RE7
RELAY
ORF1501
ECI A/S ORF1501 SLUTTEREUE 705051
RE8 RELAY ORF1501
ECI A/S ORF1501 SLUTTEREUE
705051
RE9
RELAY
ORF1501
ECI A/S ORF1501 SLUTTEREUE 705051
RE10 RELAY ORF1501
ECI A/S ORF1501 SLUTTEREUE
705051
RE11
RELAY
ORF1501
ECI A/S ORF1501 SLUTTEREUE 705051
RE12 RELAY ORF1502
ECI A/S ORF1502 SKIFTEREUE
705061
TR1
TRANSFORMER
TL297
ECI A/S
6-0-22611
400297
AERIAL CURRENT DET.MODULE
AT2112 ECI A/S
5-0-26641 C / 4·0·26641 D 626641
POSITION DESCRIPTION
MANUFACTOR TYPE
PART NO.
CH
CAPACITOR CERAMIC
1 OnF -20/+80% CL2 50VDC KCK
RT-HE70 SK YF 103 Z
15.170
C2-1 CAPACITOR CERAMIC
1 OnF -20/+80% CL2 50VDC KCK
RT-HE70 SK YF 103 Z 15.170
C3-1 CAPACITOR MKT
470nF 10% 63V ERO* MKT 1818-447 /065
11.185
DH DIODE HIGH SPEED
1N4448 PHILIPS 1N4448
25.147
D2-1
DIODE HIGH SPEED
1N4448
PHILIPS 1N4448 25.147
OC1-1 PHOTOINTERRUPTER
TELEFUNKEN TCST 1103
32.521
P13-1 PLUG 2 POLES
AMP
0-826375-2
78.102
Q1-1 TRANSISTOR AF NPN BC639 T0-92
PHILIPS BC639 28.120
RH RESISTOR 47 OHM5% 7W
PHILIPS 2322 329 07 479 05.866
R2-1 RESISTOR
47 OHM 5°~ 7W
PHILIPS 2322 329 07 479 05.866
R3-1 RESISTOR MF
1 kO OHM 5% 0.33W PHILIPS 2322 187 73102
02.472
R4-1
RESISTOR MF
1k0 OHM 5% 0.33W PHILIPS 2322 187 73102
02.472
R5-1 RESISTOR PMF 470 OHM 5% 2W PHILIPS
2322 194 13471 04.191
R6-1 RESISTOR MF 12k OHM 5% 0.33W
PHILIPS 2322 187 73123 02.498
R7-1 RESISTOR MF
680 OHM 5°~ 0.4W PHILIPS 2322 181 53681
01.195
R8-1 RESISTOR MF 680 OHM 5% 0.4W
PHILIPS 2322 181 53681 01.195
R9-1 RESISTOR MF 680 OHM 5% 0.4W
PHILIPS 2322 181 53681 01.195
REH
RELAY
12VDC 1SH. 8A. SCHRACK RYS12012
21.031
RE2-1
RELAY 12VDC 1 SH. 8A. SCHRACK RYS12012
21.031
RE3-1 RELAY 12VDC 1 SH. 8A. SCHRACK
RY S 12 012 21.031
TRH TRANS FORMER TL526
ECI A/S
6-0-258678
400526
TR2-1 TRANSFORMER
TL310
BB
6-0-23162E
400310
9507
PAGE 6-1
