SALICE F70 - Synchronizer Installation Steps; Fitting Driver Pins; Stabilizer Bar Cutting

X (1305 mm MAX)
(X - 155 mm) ±1
75 mm MIN 75 mm MIN
13 mm MAX
(X - 155 mm) ±1
X

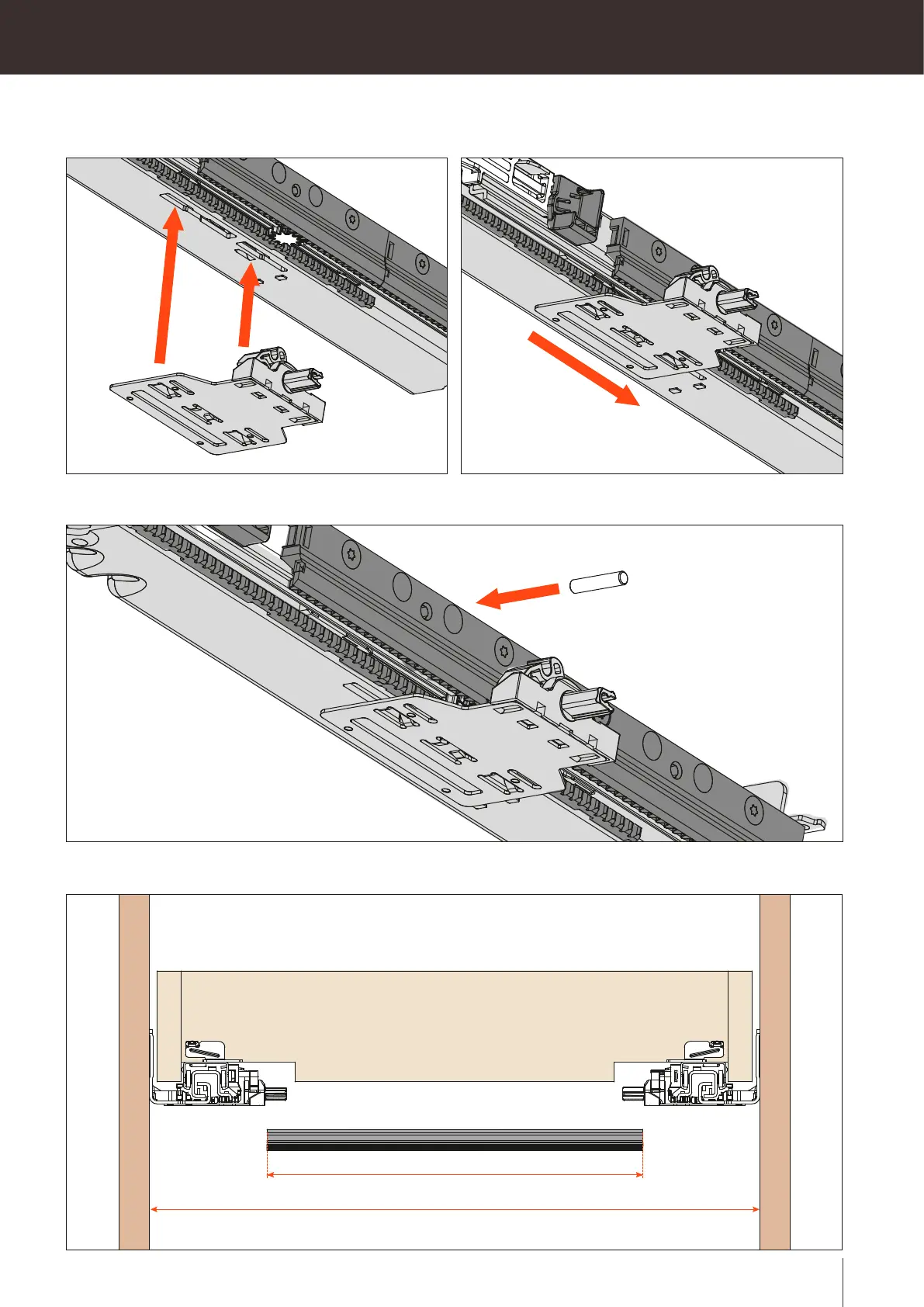

Cut the stabiliser bar to length
Assembly instructions
Insert and slide the carrier plates into position on the runners in the direction indicated by the arrows
Fitting the driver pins to the runners
33
