SALICE Progressa - Page 63

76 mm MIN 76 mm MIN
13 mm MAX
X (Max. 1305 mm)
X
Cut the synchronizer bar to length

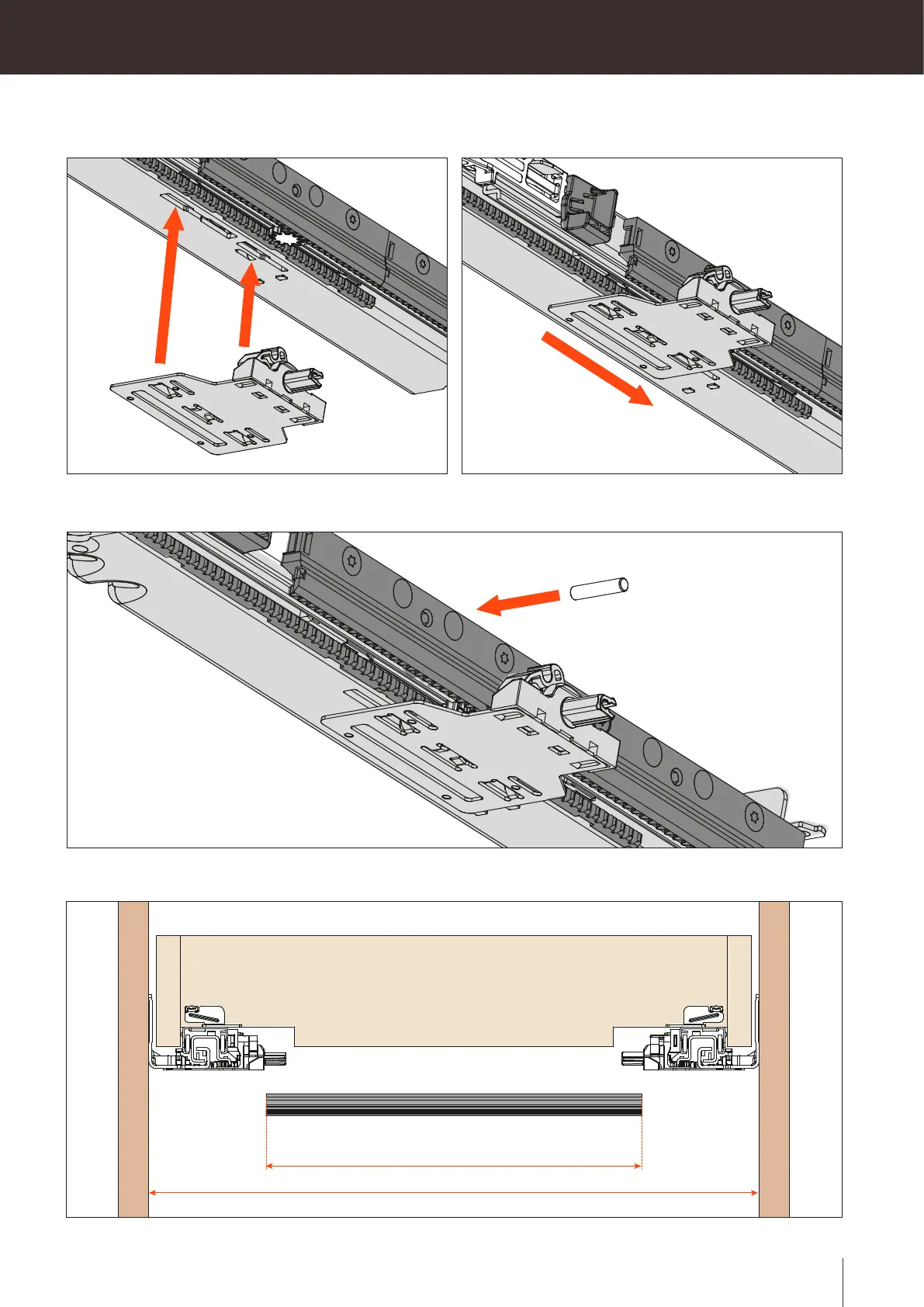

Assembly instructions
Insert and slide the carrier plates into position on the runners in the direction indicated by the arrows
Fitting the driver pins to the runners
For 13 mm to 16 mm drawer material = (X - 155) ±1
For 18-19 mm drawer material = (X - 163) ±1
