DESCRIPTION OF THE APPLIANCE

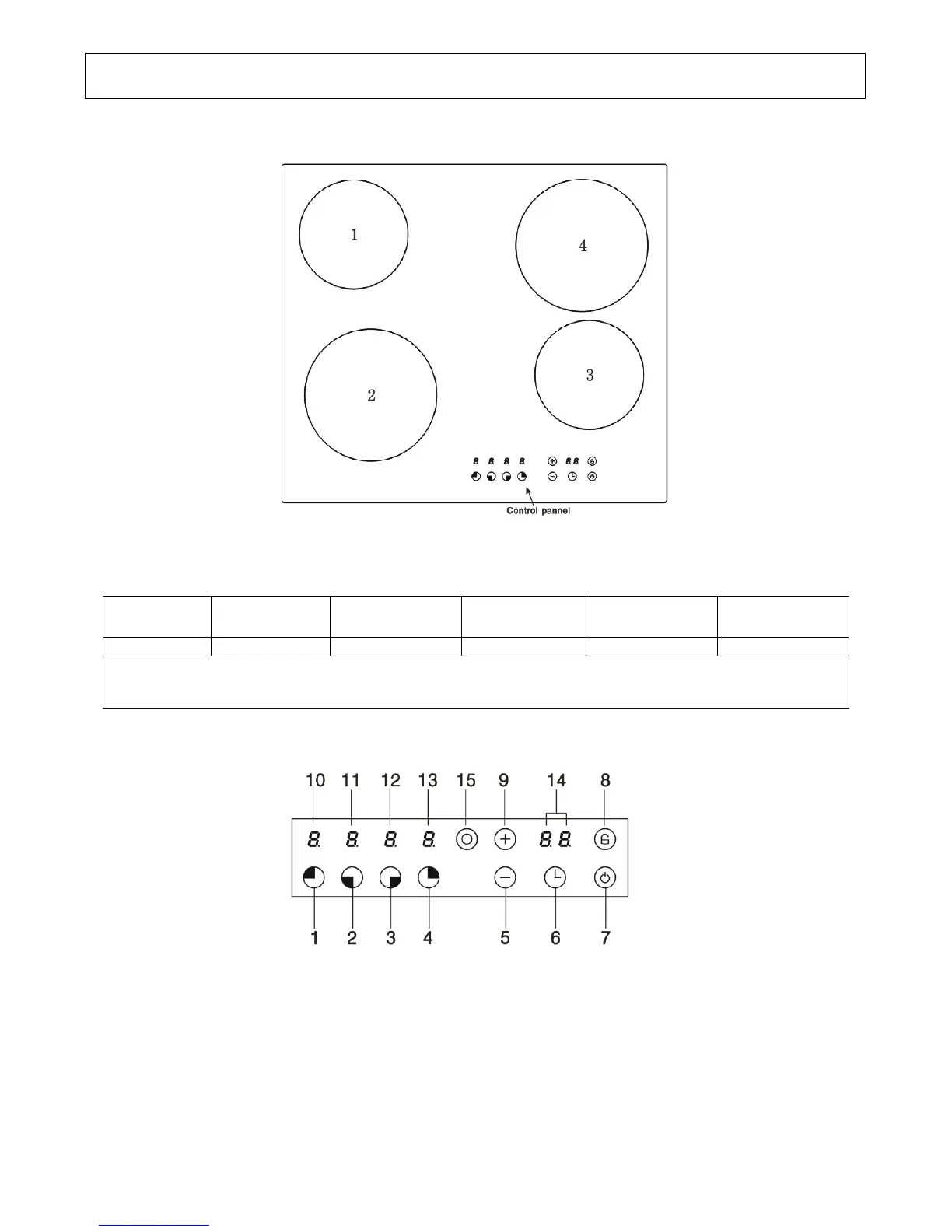

Ceramic hob 4 zone schematic diagram
Surface layout table
Control panel layout
Model
Burner Plate 1
power（kW）
Burner Plate 2
power（kW）
Burner Plate 3
power（kW）
Burner Plate 4
power（kW）
Total power
（kW）
SCC-4602B
1.2
1.8
1.2
1.8
6.0
Note：1.2 kW hyperspeed zones (diameter 165 mm)；1.7 kW hyperspeed zones (inside diameter 140 mm，outside
diameter 200 mm) ；1.8 kW hyperspeed zones (diameter 200 mm)；2.0 kW hyperspeed zones (diameter 165 mm，
long 270mm) ；2.2 kW hyperspeed zones (inside diameter 160 mm，outside diameter 230 mm).
9. Plus button
10. Cooking zone indicator of rear left
11. Cooking zone indicator of front left
12. Cooking zone indicator of front right
13. Cooking zone indicator of rear right
14. Timer display
15. Double zone select button
1. Cooking zone rear left select button
2. Cooking zone front left select button
3. Cooking zone front right select button
4. Cooking zone rear right select button
5. Minus button
6． Timer indicator
7. ON/OFF button
8. Safety lock button
