Saltmate RP30 - Installation Instructions; The Power Pack; The Electrolytic Cell

The Power Pack
Your Saltmate is weather protected to an IP34 rang. The power pack should be mounted to the
bracket 1 to 1.5 metres above ground level and located so that the cell power lead can reach the
juncon box.
Your Saltmate should be installed in a well venlated posion ensuring that pool chemicals (esp.
acid) are not stored in the direct vicinity, as the fumes may damage vital components.
Plug the 3-pin power plug of your Saltmate into a suitable 240 volt A.C power supply. Plug the
3-pin power plug of your lter pump into the 240 volt A.C power point on the underside of your
Saltmate power pack. Please ensure that only the one lter pump is plugged into the socket at
the base of the power pack.
The Electrolyc Cell
Your Saltmate cell must be plumbed last in the pool pipework aer all other pool equipment just

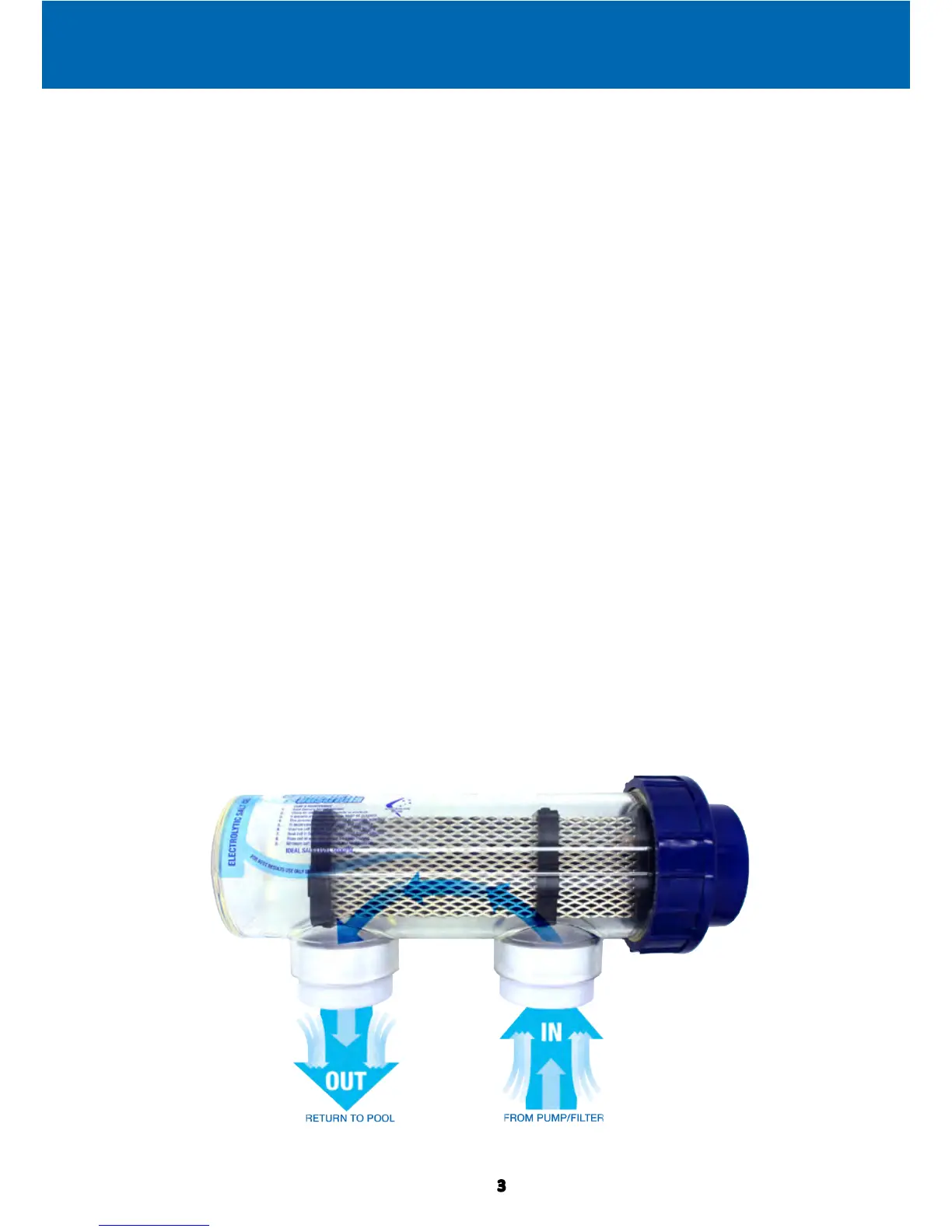

before the return to the pool, ensuring the cell can be removed. For maximum eciency your
cell should be installed with the water entering the cell housing at the end closest to the cell
lead (see image below).
Ensure that the cell is posioned horizontally so that the gas bubbles formed by the cell will be
trapped in the cell housing when the pump is turned o. If you are in any doubt about the gas
trap requirements please contact Saltmate head oce, or your Saltmate supplier.
The cell lead must be connected to the juncon box under the power pack. Connect blue to
blue, brown to brown and black to black. Be sure to replace the juncon box cover.
Installaon Instrucons
ELECTROLYTIC SALT CELL (Size and type vary by model)
