DESKTOP READER
CLR Button
The CLR Button permits to make a quick dia
g
nosis of the reader. When pressin
g
the
button the Led beside the button li
g
hts and the Reader
g
ives an oran
g
e li
g
ht as lon
g
as
the CLR button remains pressed.
The CLR Led li
g
hts for a moment each time a card is read with the proper data
accordin
g
to the dipswitches settin
g
. If the CLR Led flashes durin
g
some seconds it
means that the settin
g
of the dipswitches is a non-valid configuration.
PROXIMITY LEGIC and MIFARE launching process
Some PROXIMITY installations work with a particular PROXIMITY stamp and it is necessary
to enter the SAM card in every PROXIMITY reader. The CLR button has to be kept
pressed until the Encoder accepts the SAM card. If the CLR button is released before
finishin
g
the launching process it will be stopped.
DATA AND INTERFACES
Please, see “ Desktop Reader Manual ” document for data and Interface details.

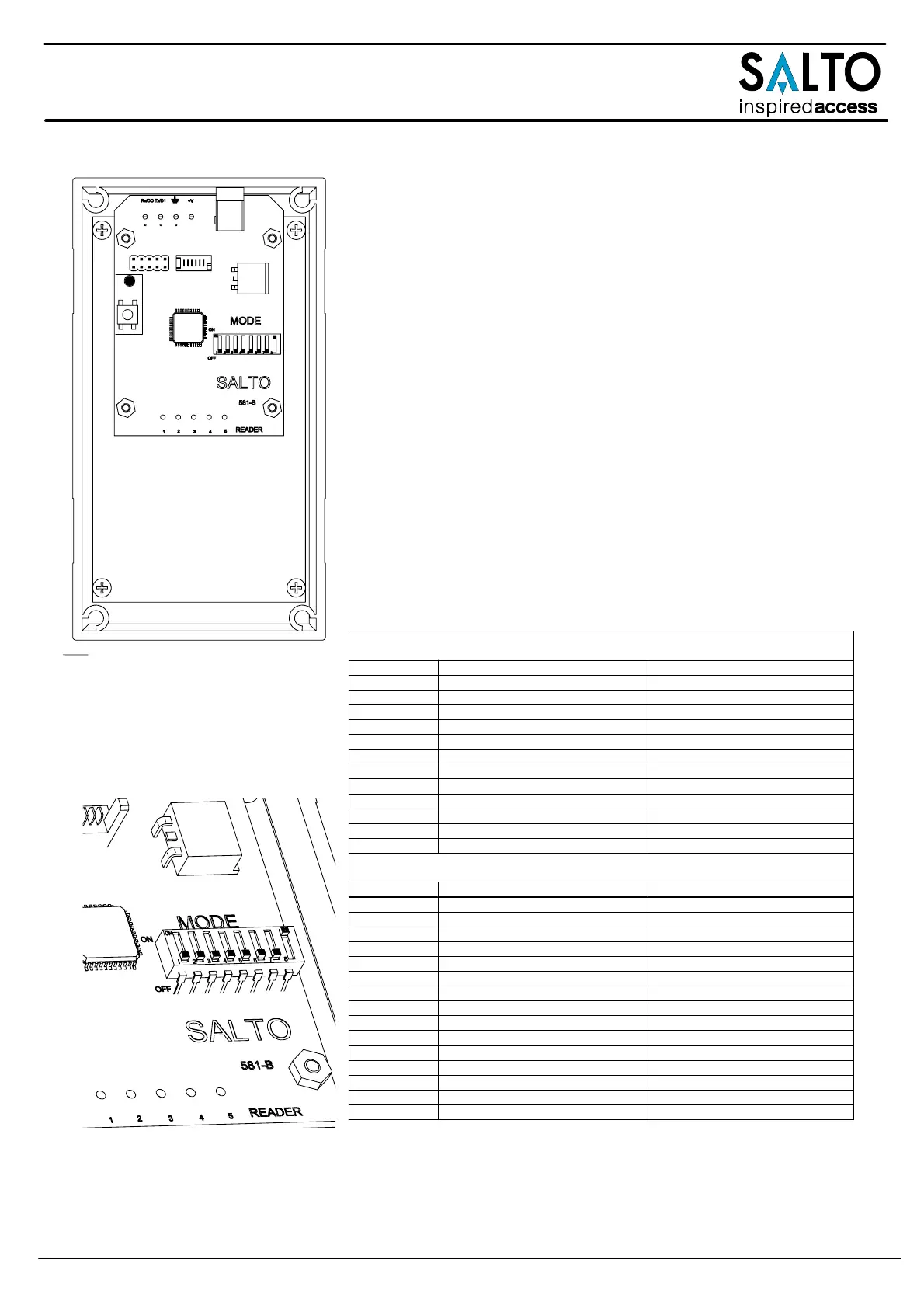

CONFIGURATION DIP SWITCHES
The configuration dip switches control the data to be read and the kind of interface with
the external device:
TABLE 1 (V 02.04)
RS-232 INTERFACE
2 LEFT FIRST SWITCHES MODE = OFF
DIP SW. MODE Data Interface
00000001 Track 1 19200 bauds, 8 data bits-no parity.
00000010 Track 2 19200 bauds, 8 data bits-no parity.
00000011 Track 3 19200 bauds, 8 data bits-no parity.
00000100 % + ROM 14+? 19200 bauds, 8 data bits-no parity.
00000101 Track 1 9600 bauds, 8 data bits-no parity.
00000110 Track 2 9600 bauds, 8 data bits-no parity.
00000111 Track 3 9600 bauds, 8 data bits-no parity.
00001000 % + ROM 14+? 9600 bauds, 8 data bits-no parity.
00001001 Track 1 Plain, 19200 bauds, 8 data bits
00001010 Track 2 Plain, 19200 bauds, 8 data bits
00001011 Track 3 Plain, 19200 bauds, 8 data bits
00001100 ROM 14 Plain, 19200 bauds, 8 data bits
OMRON AND WIEGAND INTERFACES.
2 LEFT FIRST SWITCHES MODE = ON.
DIP SW. MODE Data Interface
11000000 Track 1 OMRON
11000001 Track 2 OMRON
11000010 Track 3 OMRON
11000011 % + ROM 14+? OMRON
11000100 Track 1 WIEGAND
11000101 Track 2 WIEGAND
11000110 Track 3 WIEGAND
11000111 % + ROM 14+? WIEGAND
11001000 ROM 56 WIEGAND
11001001 ROM 58 WIEGAND
11001010 WIEGAND CODE WIEGAND
11001011 0x00+ SN (2 bytes) WIEGAND 26
11001100 SN (3 bytes) WIEGAND 26
11001101 SN (4 bytes) WIEGAND 34
11001110 Track 2 OMRON
CLR
2/2
EC20DR / EC50DR / EC80DR / EC90DR
