Salus SunCube User Manual

SUN_IS_ electrical_installation_v5.1_06092021
2
1
Set 1
self-extinguishing protective pipe phi 25, 330 cm
wires:
2x 0.75 mm
2
, 400 cm – for SOS switch
2x 0.75 mm
2
, 470 cm – for HUUM door lock sensor
2x 0.75 mm
2
, 470 cm – for HUUM Wi-Fi controller
2x 1.50 mm
2
, 470 cm – for LED lighting
1A
Self-extinguishing protective pipe 1A phi 25, 70
cm
2
Self-extinguishing protective pipe phi 40, 100 cm
3
Set 3
Self-extinguishing protective pipe phi 20, 280 cm
Wire 2x 0.75 mm
2
, 350 cm – for HUUM furnace
temperature sensor
4
Set 4
self-extinguishing protective pipe phi 20, 330 cm
wire 2x 0.75,2, 400 cm – for LED lighting left side
5
Wire 5x 4.0 mm
2
, 200 cm – for furnace supply
6
Set 6
self-extinguishing protective pipe phi 20, 40 cm
wire 2x 0.75 mm
2
, 90 cm – for alarm siren
7
Wire 2x 0.75, 40 cm – for LED right-side lighting
8
Wire 70 cm – for HUUM door opening detector
9
LED strip 316 cm – 2 pcs.
10
Wire for LED bar 15 cm – 2 pcs.
11
LED strip rubber plug – 4 pcs.
12
Wire end 0.75 mm
2
– 24 pcs.
Wire end 4.00 mm
2
– 10 pcs.
Wire end 1.50 mm
2
– 4 pcs.

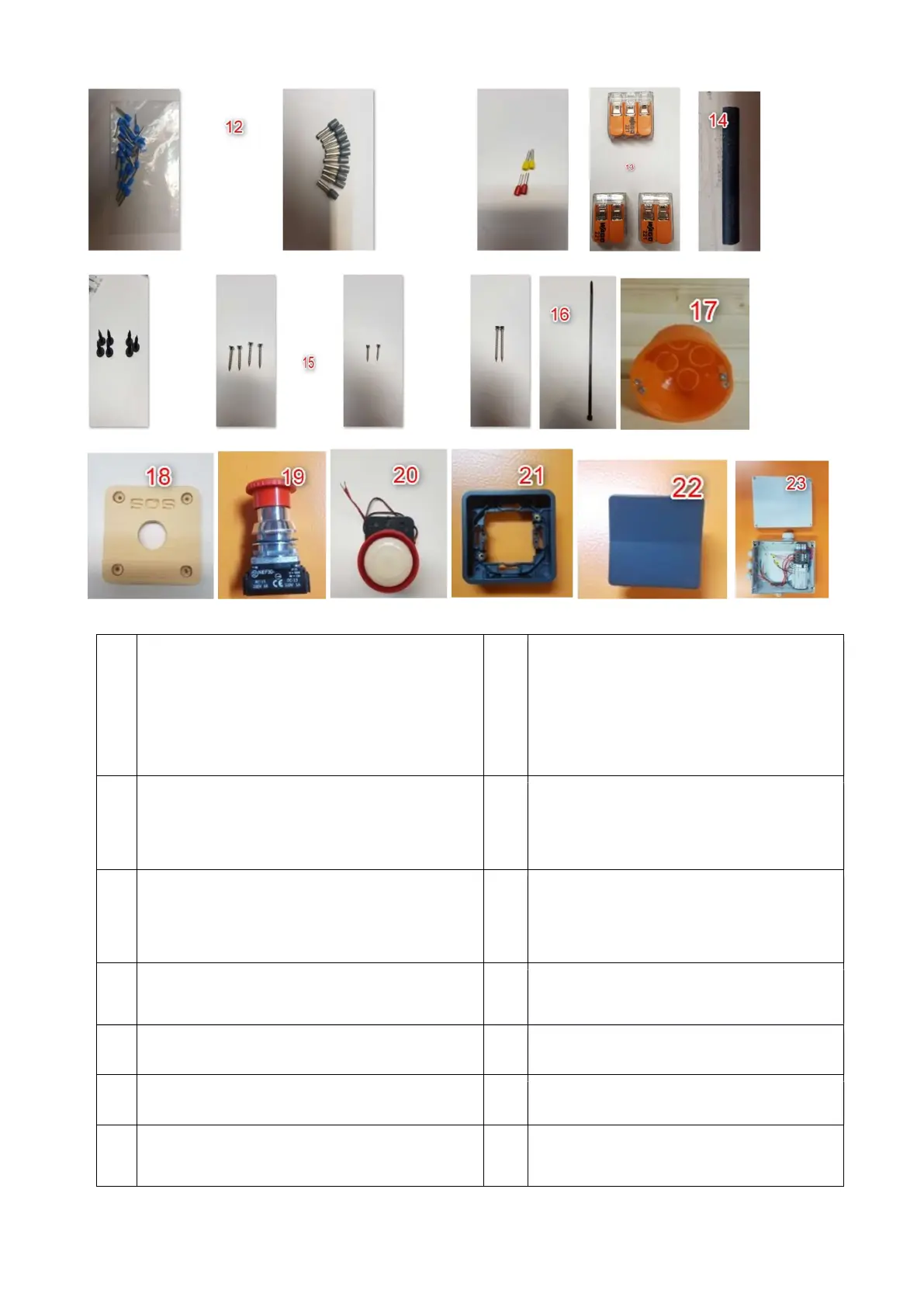

13
WAGO connector "2" – 2 pcs.
WAGO connector "3" – 1 pc.
