List of activities:
I. PREPARATION OF PROTECTIVE PIPES AND HARNESSES
1. To prepare harness "1" – cut the wires according to the specifications below:
2x 0.75 mm
2
, 400 cm – for the SOS switch
2x 0.75 mm
2
, 470 cm – to door lock sensor HUUM
4x 0.75 mm
2
, 470 cm – for HUUM Wi-Fi controller
2x 1.50 mm
2
, 470 cm – for the LED lighting supply

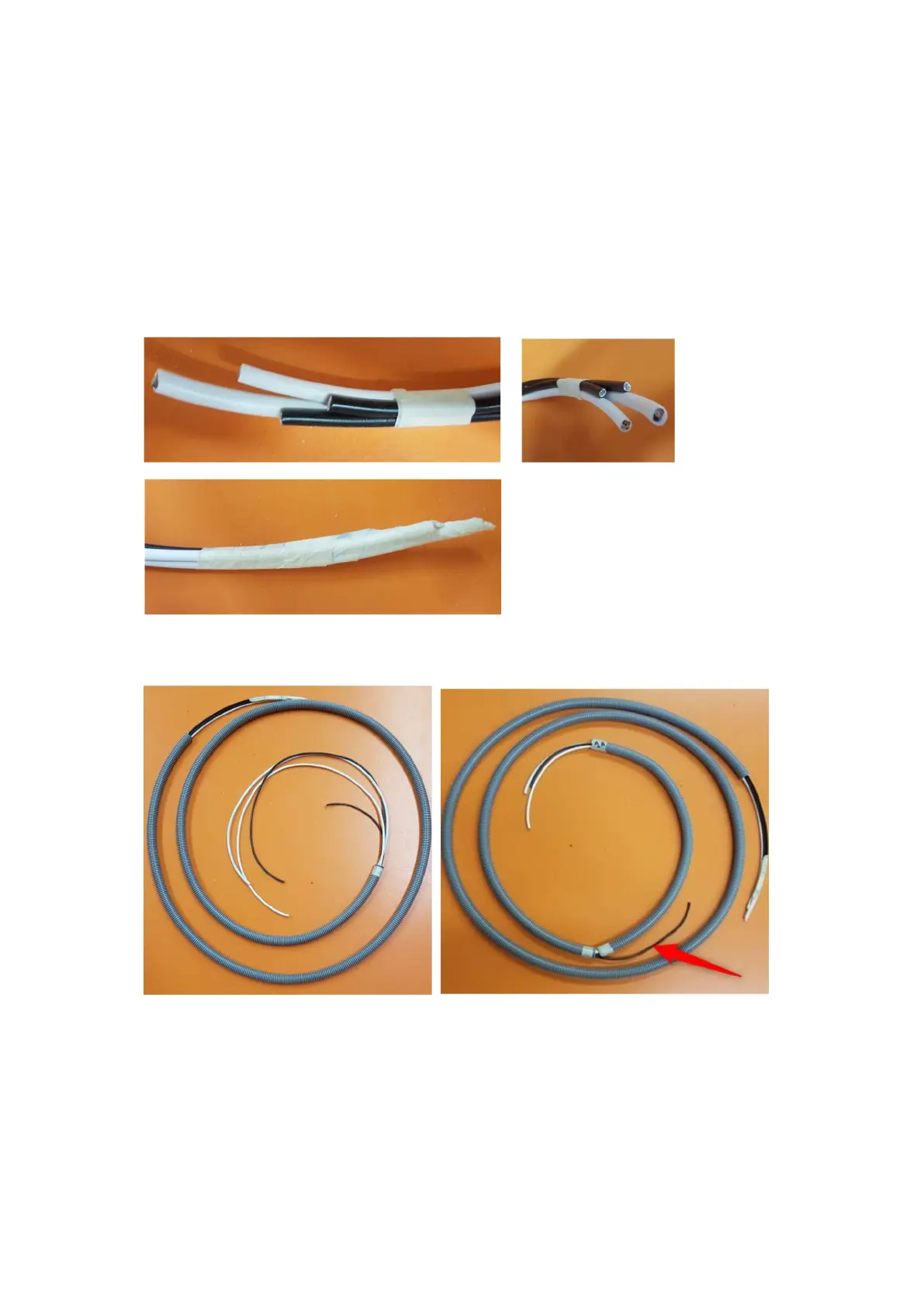

2. Arrange and tape the wires as shown in the picture, then wrap them all around – this will make it
easier to lead them through the protective pipe without any problems.
3. PRun the harness through the wire and attach the protective pipe "1A". Leave the wire for the SOS button
out of the "1A" wire.
4. Insert wire 3 into the protective pipe "3".
5. Insert wire 4 into the protective pipe "4".
6. Prepare the furnace power cable "5". Measure 18 cm and, using a stripper, remove the
insulation.
