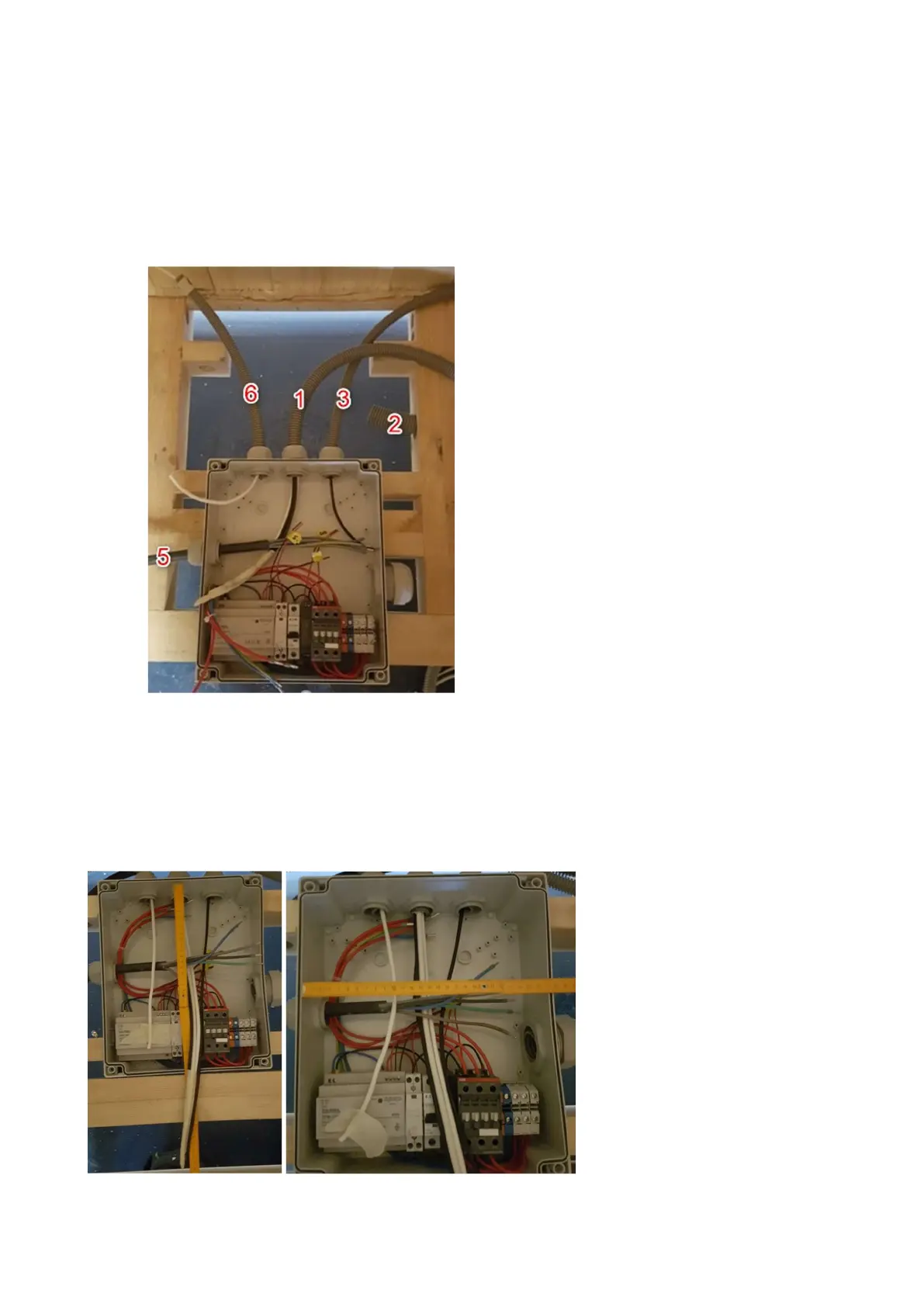

2. Install the wires in the protective pipes to the fuse box using the twist glands, starting from the left:
Protective pipe with wire "6"
Protective pipe with harness "1"
Protective pipe with wire "3"
Furnace power wire 5
NOTE: The wires should be routed out of the protective pipes in the box with an allowance as
shown in the picture below:
Harness "1" - 50 cm counting the inner top wall of the box
Wire "3" – 50 cm counting from the inner top wall of the box
Wire "6" – 30 cm counting from the inner top wall of the box
Wire "5" – 25 cm counting from the inside left box wall 3
