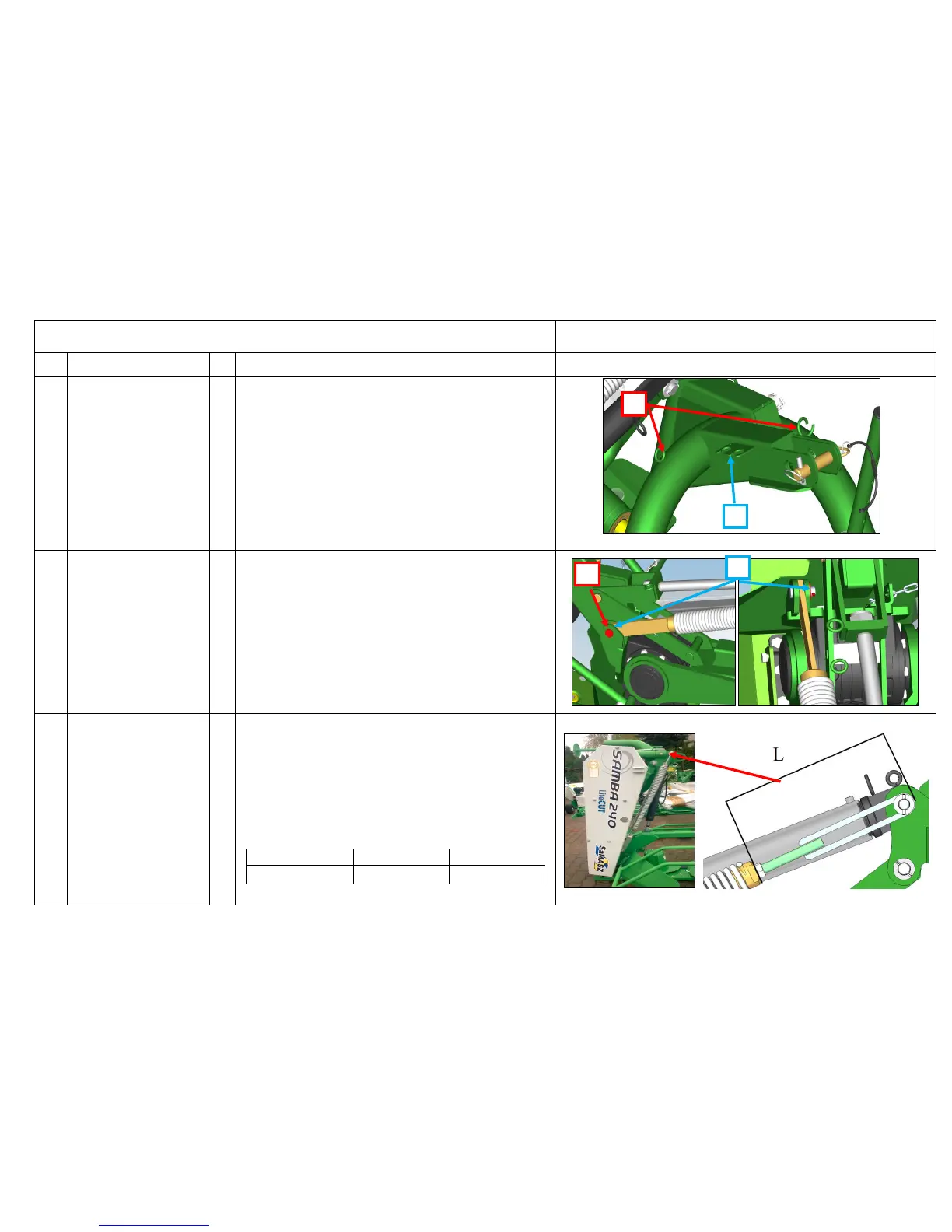

1. Insert hydraulic hose through two rings.
2. Insert EURO M14 x 1.5 plug into holder on the
headstock.
1. Install lower swivel eye in corresponding point at the
welded frame.
2. Lock the lower swivel eye for fixing the spring on the
welded frame by means of pin, washer and dowel pins
(installed from the welded frame side)
- pin dia 20 L=42
- washer dia 20
- dowel pin dia 5 x 30
1. Install spring with spring tensioning screw on spring
upper tensioning pin.
2. Lock the spring tensioning screw with washer dia 20
and dowel pin dia 5 x 36 s
3. Using nut, set the distance (between flat surface of
spring upper tensioning screw and washer under the
screw) specified in the below table
To Next Page
