SaMASZ SAMBA 240 Assembly Instructions

Page 8 of 10
MACHINE TYPE
SAMBA
No.
Action
Figure / Photo / Other

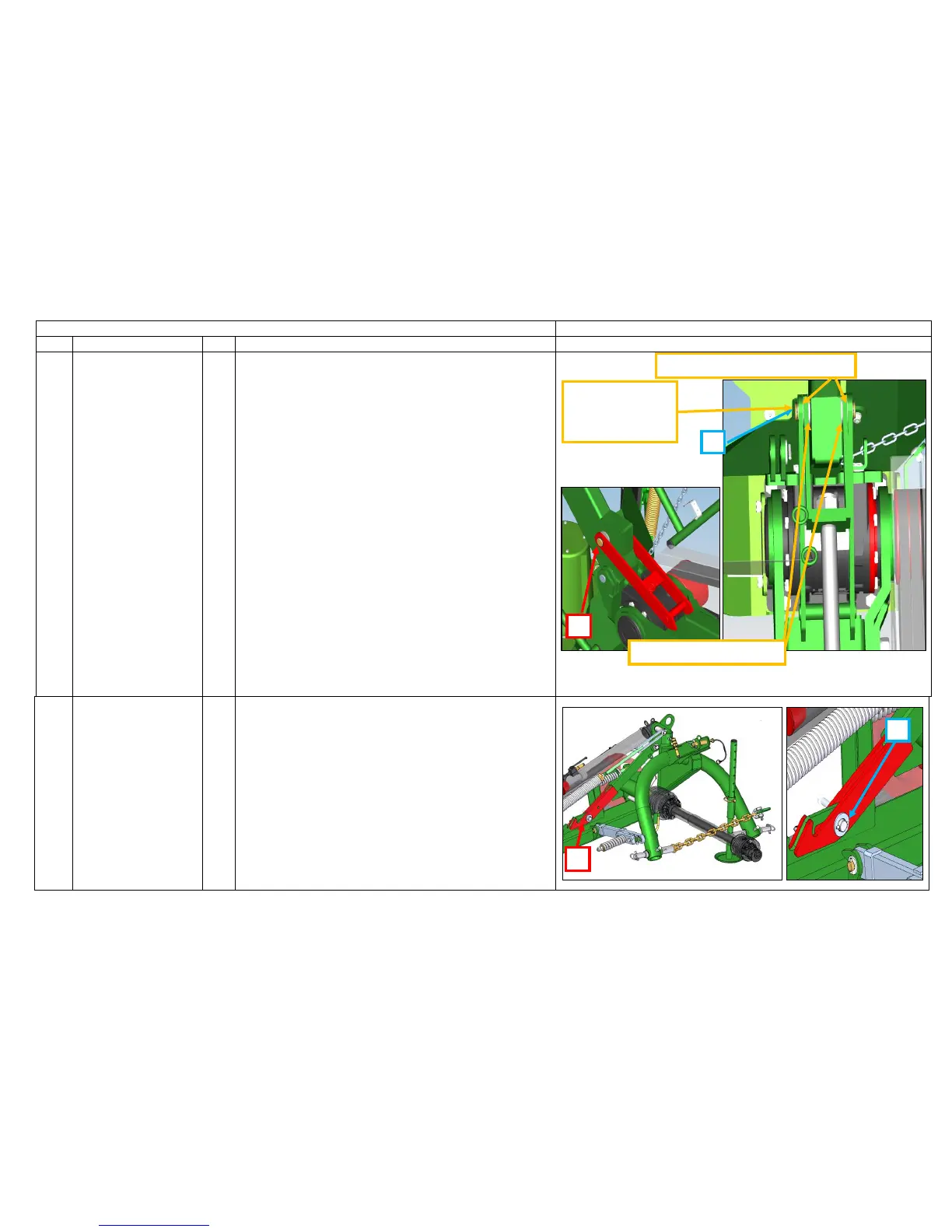

To install cylinder screwed extension, first remove the pawl.
1. From pawl pin, remove 2 circlips Z-25; from the
frame, remove the pin with spacers.
2. On the welded frame, install the pawl, cylinder
screwed extension, spacers (as shown), insert the pawl
pin through details and the welded frame, protect at
both sides with a circlip.
- pawl pin – 1 pce
- circlip Z-25 – 2 pcs.
- spacer dia 25 # 1 mm – 2 pcs.
- washer dia 24 zinc-pl. for pin – 2 pcs.
Mount skew strip on carrying beam:
1. Insert pin through opening in carrying frame and skew
strip
- pin dia 22 L=60 (SO.25.00.060)
2. Secure the pin at both sides using washer; hammer
dowel pins:
- washer dia 24 zinc-pl. for pin – 2 pcs.
- dowel pin dia 5 x 36 stainless – 2 pcs
1
2
Pawl pin
Circlip Z-25 (at both
sides)
Spacer dia 25 thickness 1mm
Washer dia24 zinc-pl. for pin
1
2
