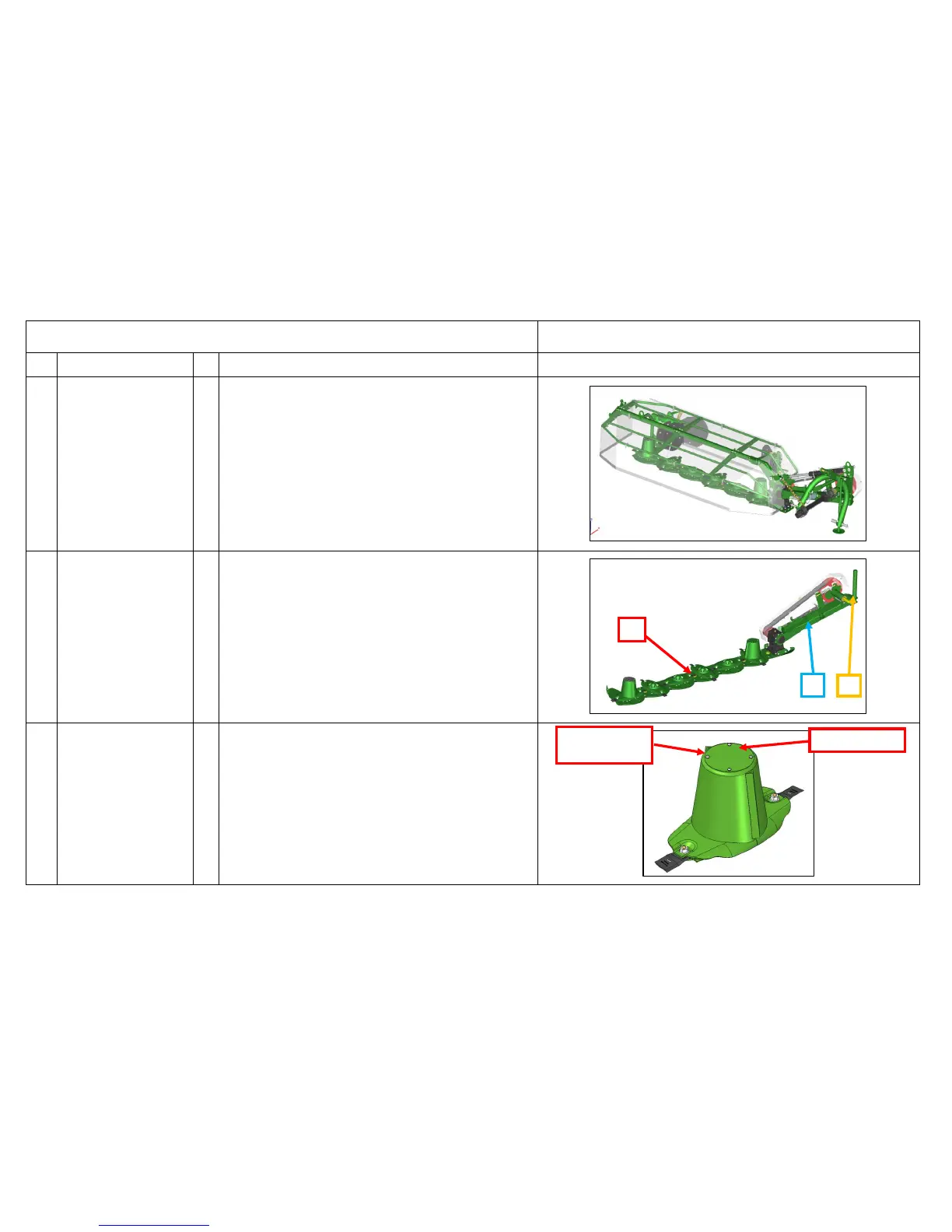

SaMASZ SAMBA 280 Assembly Instructions

Page 3 of 10
MACHINE TYPE
SAMBA
No.
Action
Figure / Photo / Other
Assembly of
SAMBA mower
Complete machine assembled from components A to K
1
Drum assembly to
cutterbar
1. Set component A (cutting unit (1), carrying beam (2),
vertical axle (3)) flat on the ground.
2. Unfold the mower – straighten carrying beam;
vertical axle must be set vertically.
1. Prepare drum with disk.
2. Loosen 4 bolts with washers which fix drum cover
closing the drum.
- bolt M6 x 20 cl. 10.9 zinc-pl. HEX BOLT,
MUSHROOM HEAD – 4 pcs.
- lock washer dia 6.1 zinc-pl. – 4 pcs
4 bolts with
washers
Drum cover
1
2
3
