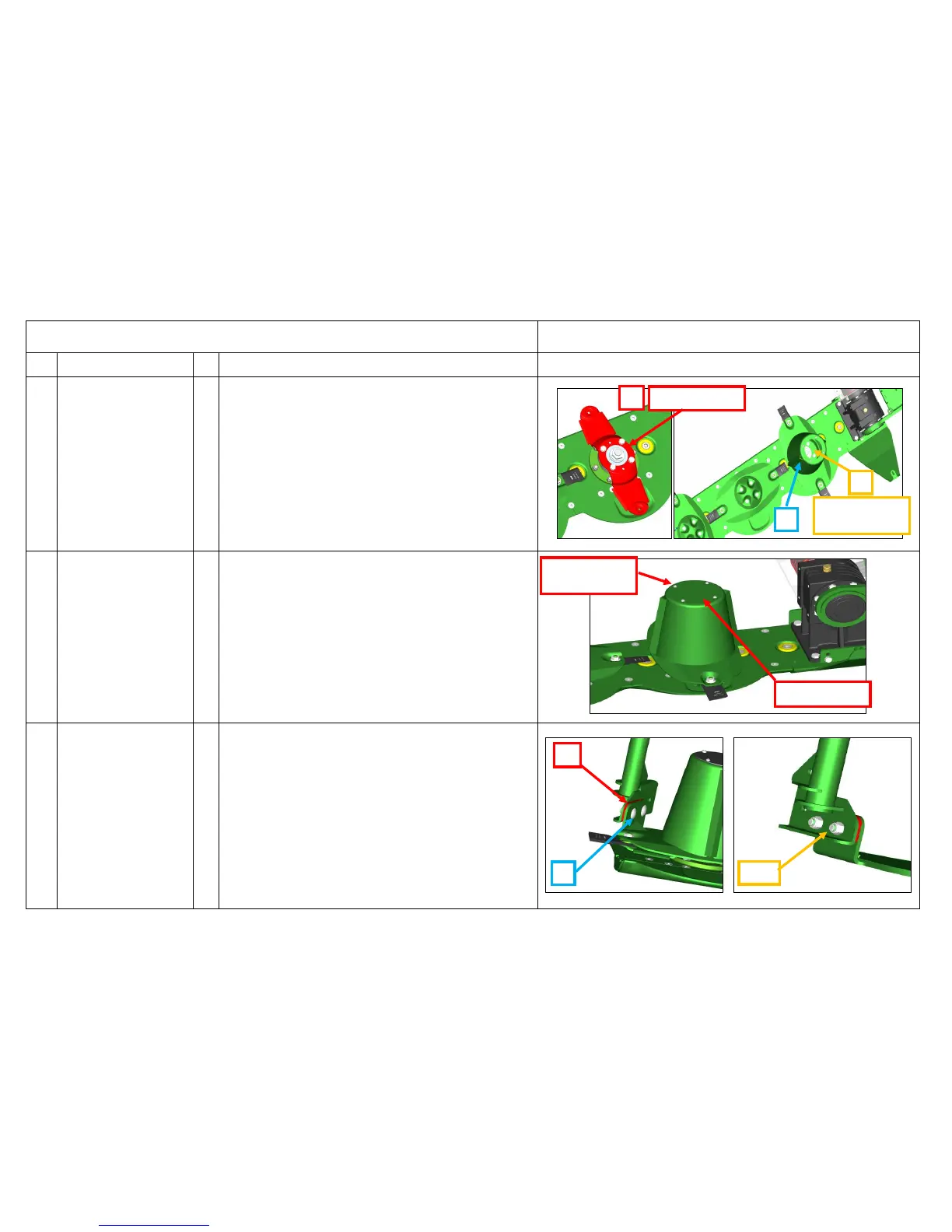

1. Install knife holder on empty disc hub.
2. Install drum on knife holder.
3. Screw the drum using 4 bolts with washers to the hub.
- bolt M10 x 25 cl. 8.8 zinc-pl. – 4 pcs
- lock washer dia 10.2 zinc-pl. – 4 pcs
Drum must be perpendicular to the preceding disc, as shown.
1. Screw the drum cover using 4 bolts with washers to
the disc drum.
- bolt M6 x 20 cl. 10.9 zinc-pl. HEX BOLT,
MUSHROOM HEAD – 4 pcs.
- lock washer dia 6.1 zinc-pl.
1. Put welded frame on the cutterbar.
2. Between welded frame and the cutterbar, insert a
rubber spacer.
3. From the drum side, through openings in the frame,
insert 2 bolt M12 x 30 cl. 8.8 zinc-pl. with neck
4. On each bolt, install washer dia 12 zinc-pl.
5. Fasten the frame using self-locking nuts M12 cl. 8
zinc-pl. – 2 pcs
This operation must be carried out, while fastening frame
to transmission (next step).
