Operating instructions for SAMBO Bevel V1.00-2021.03.22

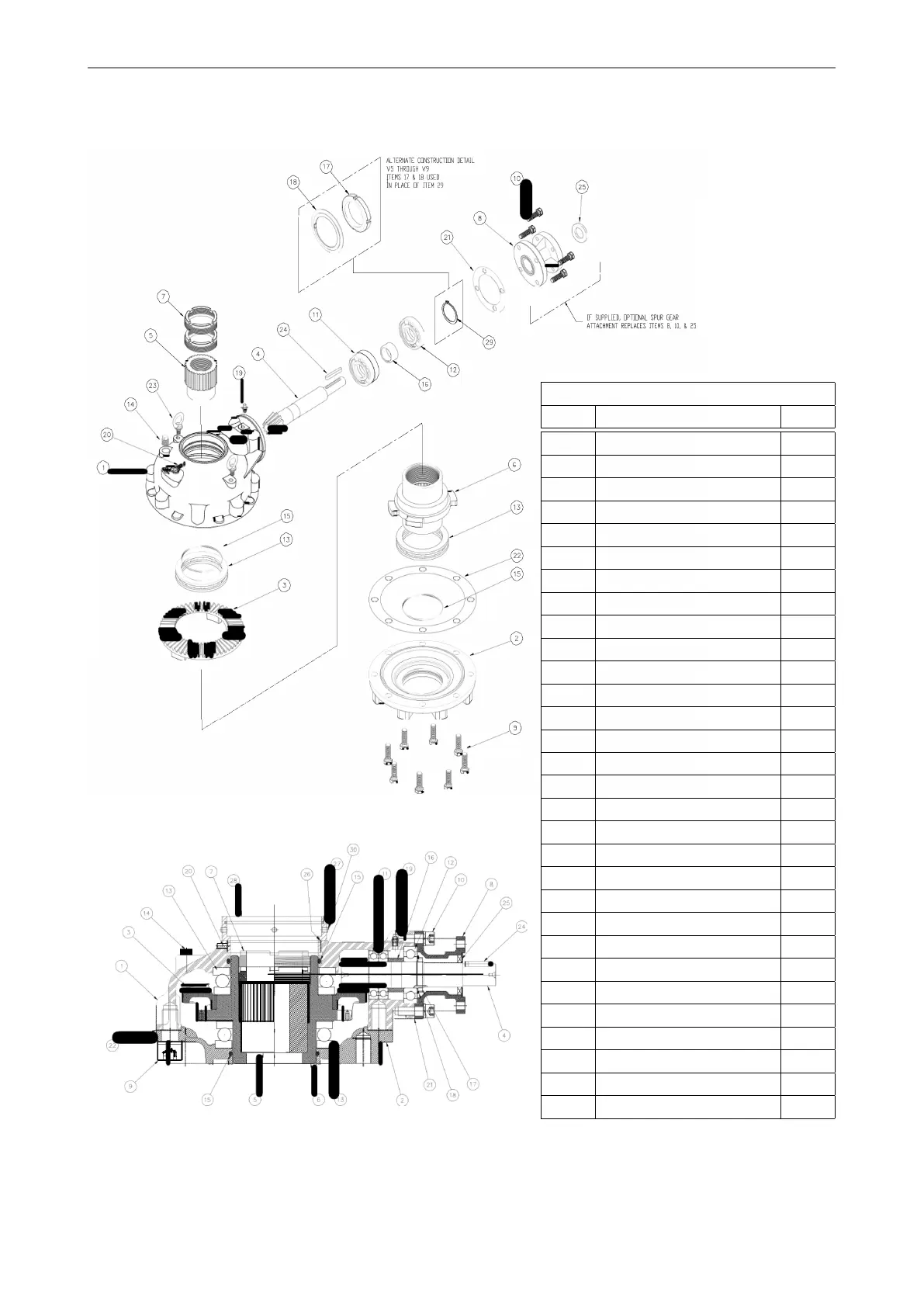

Figure 3: SB-V0 through SB-V9 Explosion View
Figure 4: SB-V0 through SB-V9 Assembly View
Table 1: SB-V0 through SBW-V9
Parts List
Parts List
Item Description Qty
1 Housing 1
2 Thrust Base 1
3 Bevel Gear 1
4 Bevel Pinion 1
5 Stem Nut 1
6 Drive Sleeve 1
7 Lock Nut 2
8 Input Flange 1
9 Socket Head Cap Screw 8
10 Socket Head Cap Screw 4
11 Ball Bearing 2
12 Spherical Roller Bearing 1
13 Thrust Bearing 2
14 Pipe Plug 1
15 O-Ring 2
16 Collar 1
17 Bearing Nut Varies
18 Bearing Washer Varies
19 Grease Fitting 1
20 Set Screw 1
21 End Cap Gasket 1
22 Base Gasket 1
23 Eye Bolt 2
24 Key 1
25 Oil Seal 1
26 O-Ring 1
27 O-Ring 1
28 Stem Cover Adapter 1
29 Retaining Ring Varies
30 Set Screw 4
