Operating instructions for SAMBO Bevel V1.00-2021.03.22

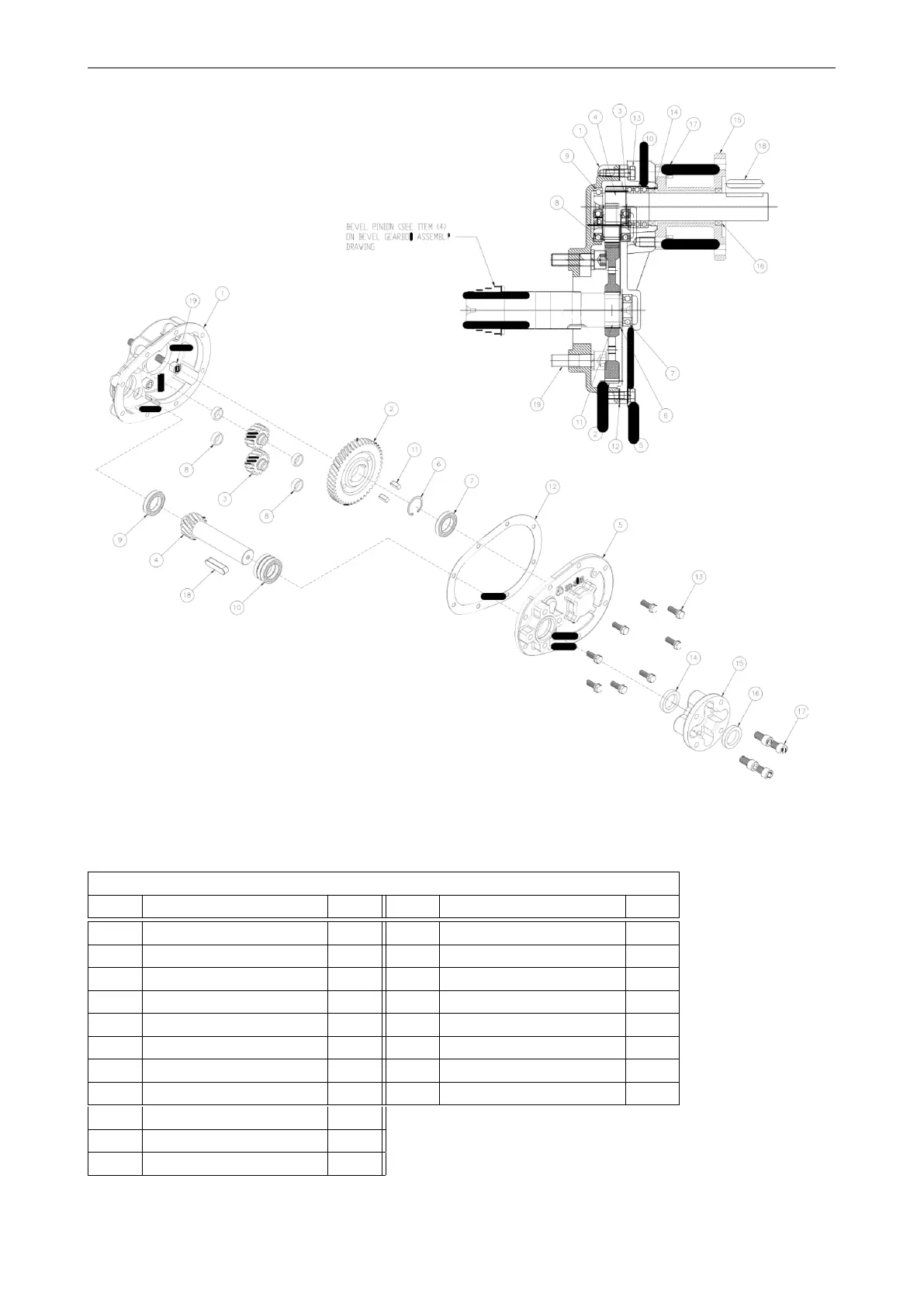

Figure 7: SB-V0 through SB-V9, and SB-V35H through SB-V9H Spur Gear Attachment (1S) Exploded View
Table 3: Spur Gear Attachment (1S) Parts List
Parts List
Item Description Qty Item Description Qty
1 Housing 1 12 Cover Gasket 1
2 Helical Gear 1 13 Hex Head Cap Screw 8
3 Idler Gear 2 14 Oil Seal 1
4 Helical Pinion 2 15 Input Flange 1
5 Cover 1 16 Oil Seal 1
6 Retaining Ring 1 17 Cap Screw Varies
7 Ball Bearing 1 18 Key 1
8 Ball Bearing 4 19 Cap Screw Varies
9 Ball Bearing 1
10 Ball Bearing 3
11 Key 2
