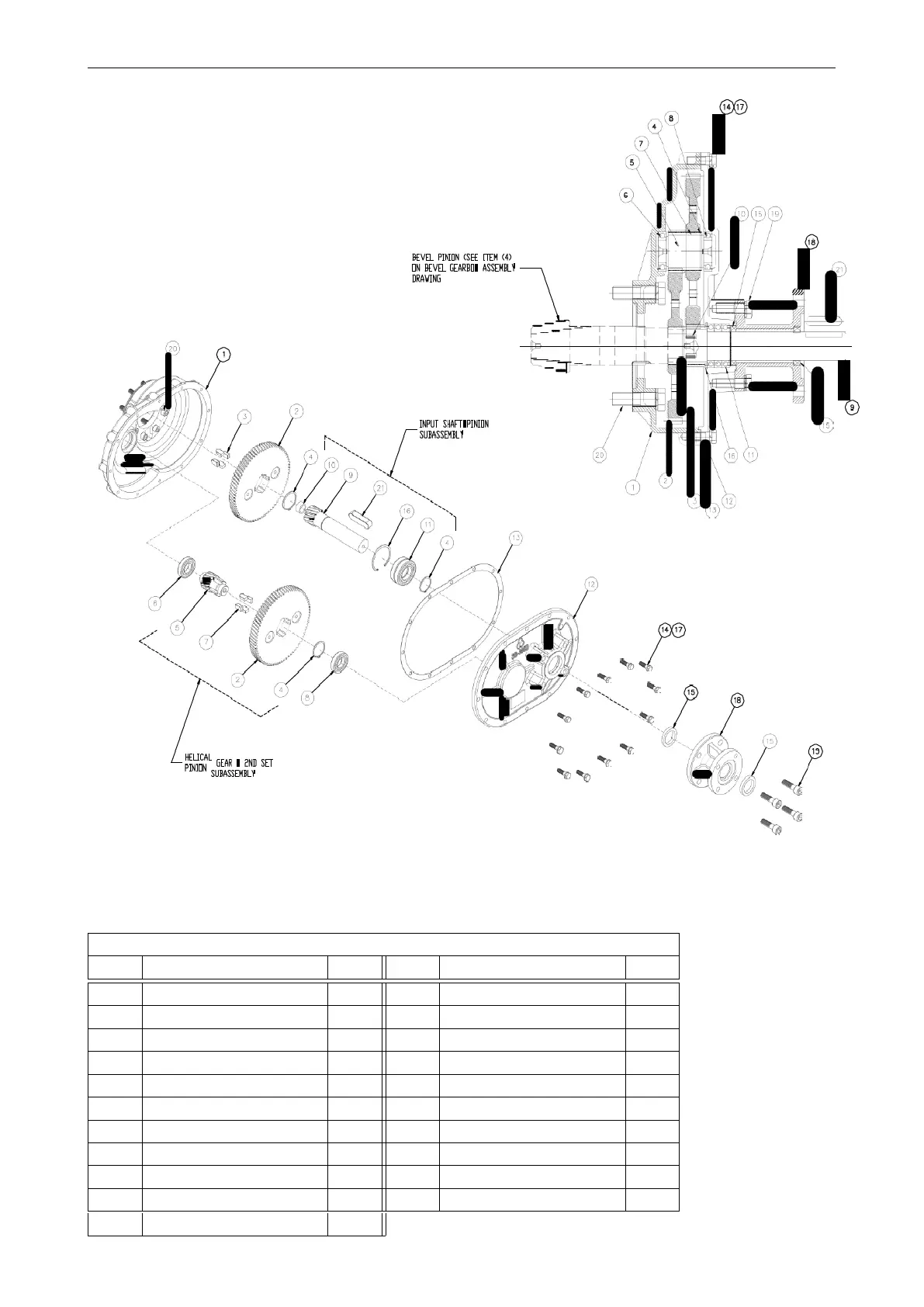

Figure 8: SB-V0 through SB-V9, and SB-V35H through SB–V9H Spur Gear Attachment (1SD) Exploded
View
Table 4: Spur Gear Attachment (1SD) Parts List
Parts List
Item Description Qty Item Description Qty
1 Housing 1 12 Cover 1
2 Helical Gear 1 13 Cover Gasket 1
3 Key 2 14 Hex Head Cap screw 10
4 Retaining Ring 3 15 Oil Seal 1
5 2
nd
Set Pinion 1 16 Retaining Ring 1
6 Ball Bearing 1 17 Lock Washer 10
7 Key 1 18 Input Flange 1
8 Ball Bearing 1 19 Cap Screw Varies
9 Helical Pinion 1 20 Cap Screw Varies
10 Oil Seal 1 21 Key 1
11 Ball Bearing 3
18
