52

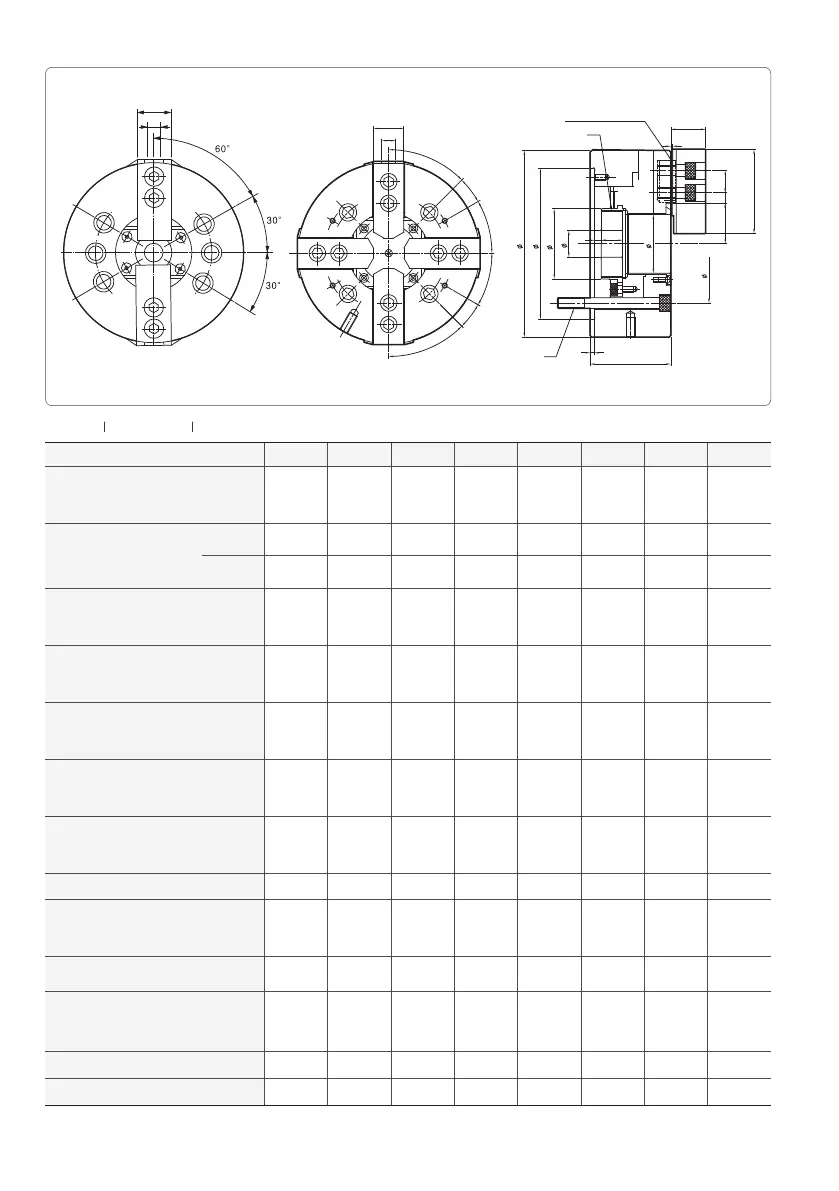

Dimensions
尺寸
제품 사양
MHT / MHF
MHT(2-Jaw) MHF(4-Jaw)
C
A
W
J
G
H
F
D
Q
R
P
N
M
V
B
L
K
SERRATION PITCH 1.5
E
30°
30°
15°
45°
15°
45°
T
U
T
U
형식 /
Type
/
型式
MHT-206 MHT-208 MHT-210 MHT-212 MHF-208 MHF-210 MHF-212 MHF-221
관통경
Available I.D.
现有身份证件
[mm]
52 66 82 103 66 82 103 166.5
파악경
Piston Dia.
活塞直径
MAX. [mm] 175 210 254 315 210 254 315 530
MIN. [mm] 16.5 23 30 54 23 30 54 108
죠 스트로크 직경
Jaw-Stroke Dia.
爪行程(直径)
[mm]
6.4 7.4 8.8 10.6 7.4 8.8 10.6 10.6
플런져 스트로크
Plunger Stroke
柱塞行程
[mm]
14 16 19 23 16 19 23 23
허용최대입력
Max. Permissible Input Force [kN(kgf)]
允许输入力
16.6
(1700)
23.5
(2397)
32.5
(3306)
36.7
(3742)
36.4
(3596)
49
(4976)
55
(5608)
90
(9177)
최대정적 파악력
Max. Static Grip Force
最大静态夹持力
[kN(kgf)]
38
(3875)
57.9
(5914)
84
(8530)
96
(9789)
87
(8872)
126.6
(12848)
144
(14686)
220
(22460)
허용최고회전속도
Max. R.P.M
最大转速
[min(r.p.m.)]
6000 5000 4500 3000 4300 3400 2700 1300
중량 /
Weight
/
重量
[kgf]
11.5 21.7 31 55.3 23.5 32 55.3 228
관성모멘트
GD²
转动惯量
[N·m²(kgf·m²)]
0.048 0.132 0.3 0.808 0.57 0.329 0.808 24.1
적용실린더 /
Operating Cylinder
/
工作缸
SD-15452 SD-17568 SD-18582 SD-21510 SD-17568 SD-18582 SD-21510 SYH-2816
최대설정 유압력
Max. Hydraulic Pressure [Mpa(kgf/cm²)]
最大液压压力
1.18
(12)
1.59
(16.3)
1.86
(19)
1.57
(16.0)
2.34
(23.9)
2.74
(28)
2.65
(27.2)
2.86
(29.1)
적용죠 /
Operating Hard Jaw
/
工作硬爪
HB06A1 HB08A1 HB10A1 HB12A1 HBF08A1 HBF10A1 HBF12A1 HBF12A1
호환모델 /
KITAGAWA® Model
/
北川型号
- - - - - - - -
