2.5 2.5
180

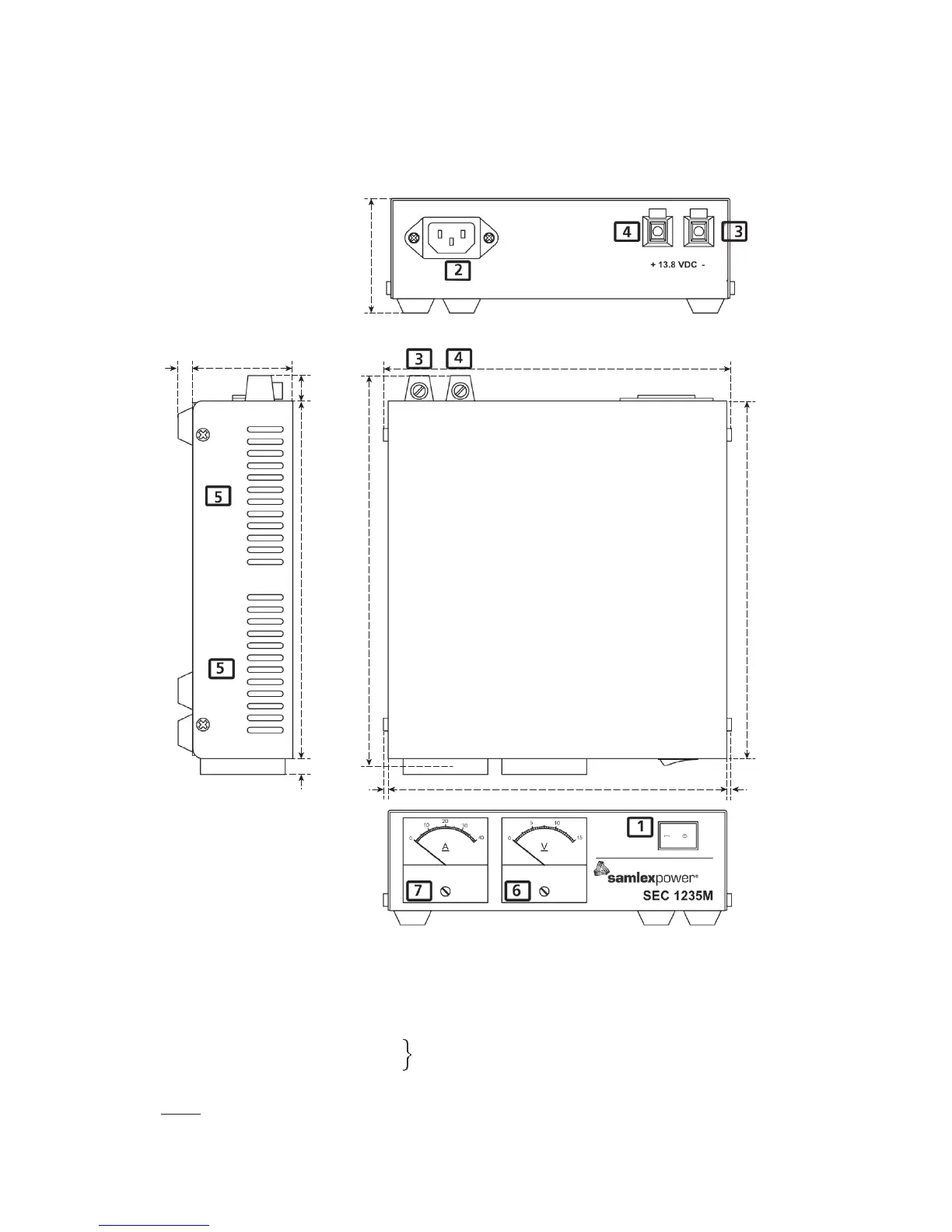

Figure 2.2 Layout & Dimensions - SEC-1235M
1. Lighted Power ON/OFF Rocker Switch (Lights Red when ON)
2. AC Power Cord Inlet: Type “IEC 60320-C14” for detachable power cord with “IEC 60320-C13”
connector on one end and NEMA5-15P plug on the other end.
3. Black Negative (-) DC Load Terminal
4. Red Positive (+) DC Load Terminal
5. Air inlet slots for cooling fan (cooling fan and air outlet slots at the bottom - not shown)
* NOTE: 5/64” Hex key and 2 spare set screws have been provided
Dimensions: W x D x H 185 x 212 x 61 mm
7.28 x 8.35 x 2.40 i
n
{Tubular hole Dia 5mm/0.2” and set screw
(5/64” Hex Socket Head, #10, 24 TPI, 5/16” long)}*
