• Open the cover of the GLACIÄR MIDI, fit the cable glands and make the required electrical connections. The plug-in
terminals can be removed from the device to facilitate wiring.
• Power the device on and complete the settings using the rotary switch, as described in the following paragraphs, or using the
app, as described below or through the Modbus connection.

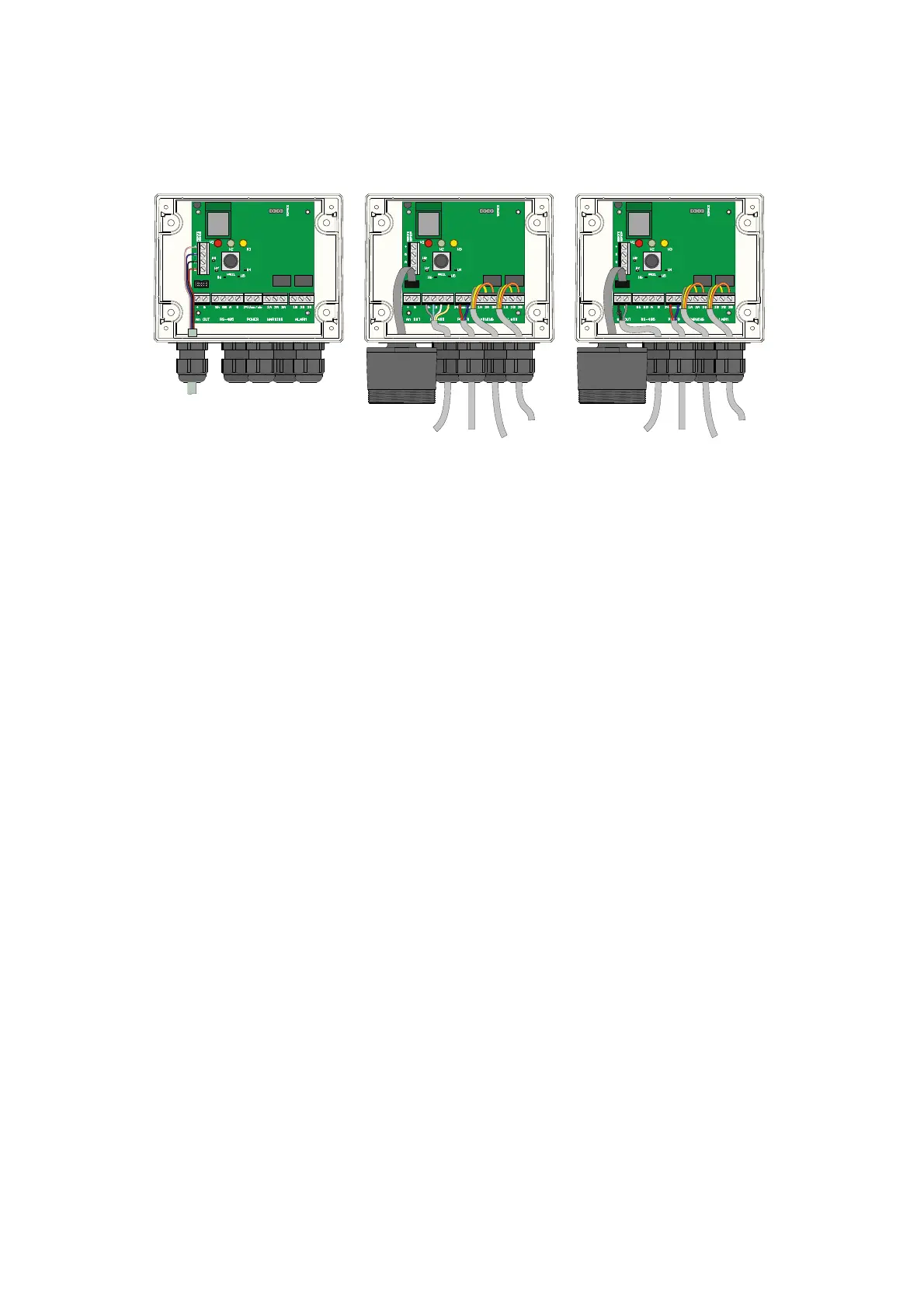

• Use the cable glands provided to pass through and connect the cables to the terminals, as shown in the figure and in the
connection table below. The terminals can be removed to simplify wiring.
• Close the cover
• Cord range for M16 cable gland 5 - 10 mm, for M20 cable gland 7.5 - 11.3 mm
• Use UL listed approved cable, min. 50°C, suitable for electrical rating in application
• Tighten the cable glands with a toque of 2,5 Nm
• Close the cover.
