Samson 1634666 - Technical Specifications; Component Materials; Sectional View Drawing

A-A
A
A
6 121
5 7
2 4 11313 14
15 109 8
17
16
17
16
POS DESCRIPTION MATERIAL
1 Membrane VITON antistatic
2 Membrane housing, upper PEHD antistatic
3 Spindle AISI 316
4 Driving plate AISI 304
5 Membrane housing, lower PEHD antistatic
6 Spring guide POM
7 M6x25 allen screw DIN 912 A4
8 M6 nut DIN 934 A4
9 M6 washer A4
10 M6 set screw DIN 916 A4
11 O-ring Ø8x2 NBR Shore 70
12 Spring A2
13 O-ring Ø30x3 NBR Shore 70
14 Indicator disc 2-Plex
15 Nipple hose Ø6-1/8” BSP AISI 316
16 Hose strap AISI 304
17 Hose EPDM
2.1 Materials
DOC1634666
DOC1627186

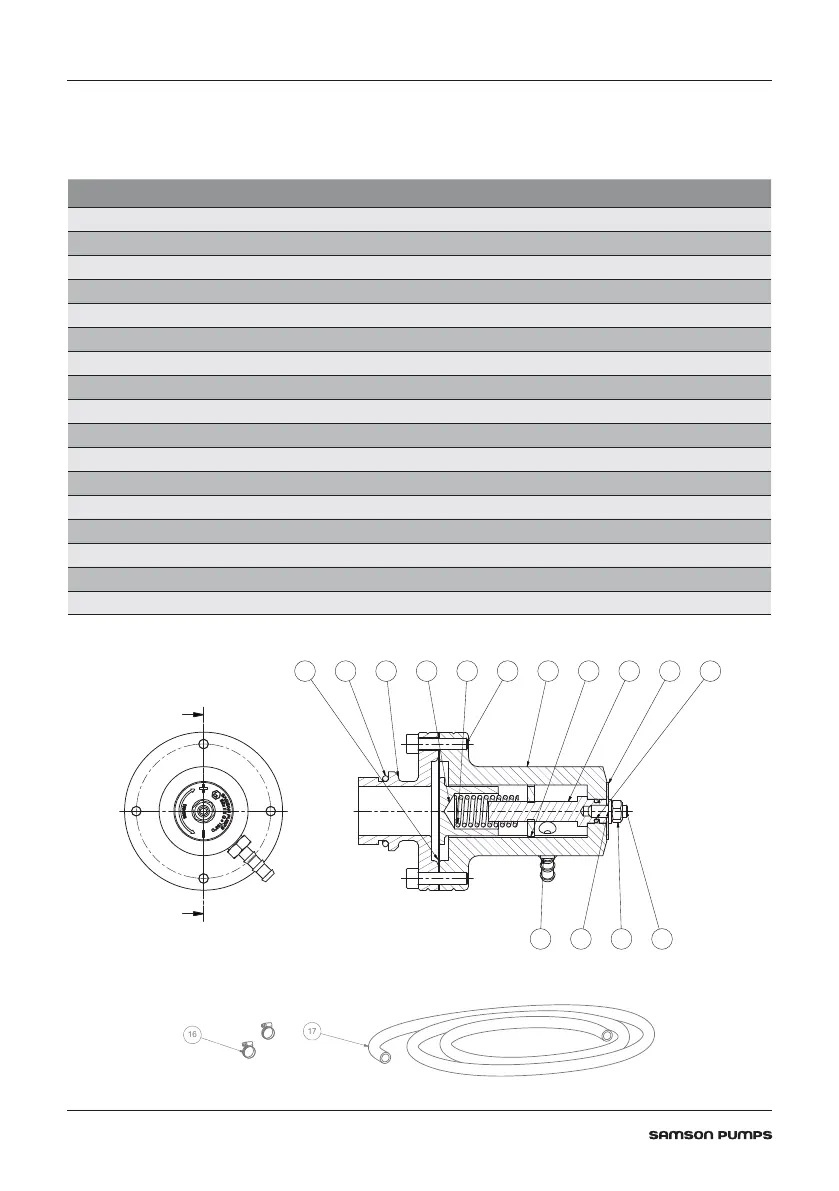

2.2 Sectional drawing
2 TECHNICAL DATA
6
