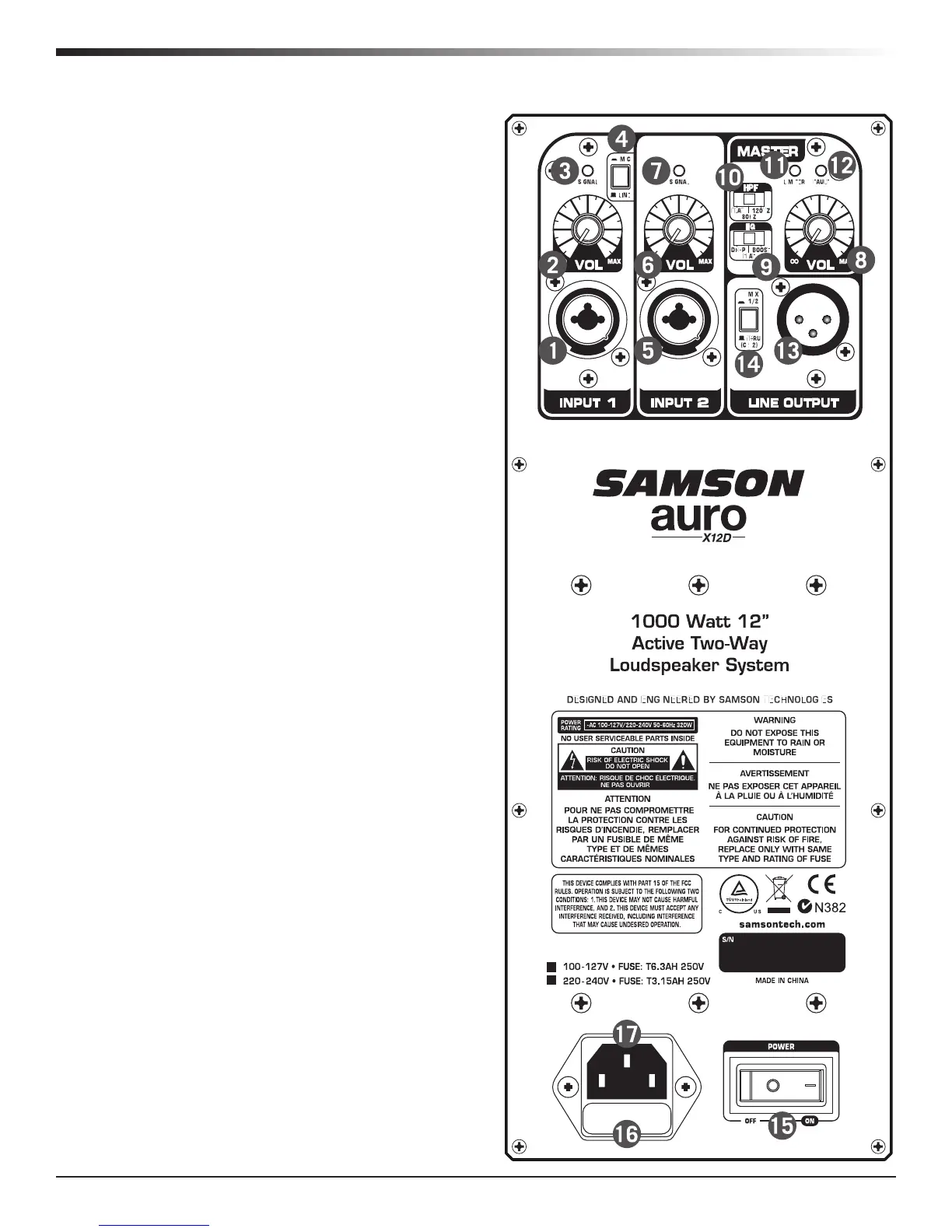

1. XLR and ¼” Input Connector (Input 1) - This
combo XLR and ¼” connector accepts either
a balanced or unbalanced microphone or line
level signal. The ¼” phone input accepts TS
or TRS type connectors.
2. VOL Control (Input 1) - This Volume knobs
adjusts the level of the Input 1 channel.
3. SIGNAL Indicator (Input 1) - This GREEN LED
indicator, when illuminated, indicates that the
signal is present at the Input 1, regardless of
the Input 1 VOL Control setting.
4. Mic/Line Switch (Input 1) - The MIC position
changes the gain of Input 1 jacks to MIC
level. The LINE position reduces the gain of
both jacks by 30dB to line level.
5. XLR and ¼” Input Connector (Input 2) - This
combo XLR and ¼” connector accepts either
a balanced or unbalanced line level signal.
The ¼” phone input accepts TS or TRS type
connectors.
6. VOL Control (Input 2) - This control adjusts the
level of the Input 2 channel.
7. SIGNAL Indicator (Input 2) - This GREEN LED
indicator, when illuminated, indicates that the
signal is present at the Input 2, regardless of
the Input 2 VOL Control setting.
8. Master VOL Control - This control adjusts the
overall signal level at the input of the power
amplifiers.
9. EQ Switch - The Auro DSP has three EQ
contour curves: NORMAL, DEEP, and BOOST.
The NORMAL setting produces the standard
frequency response and works best for most
applications. The BOOST setting provides a
high frequency lift for vocal clarity. This is
useful when plugging a microphone directly
into the speaker. The DEEP setting enhances
low frequencies to add punch and high
frequencies to add vocal clarity.
Rear Panel Layout
To Next Page
