LIVE! Series Wiring Guide
Unbalanced 1/4” Connector to Female XLR
XLR to XLR Balanced
Connecting The Live Series

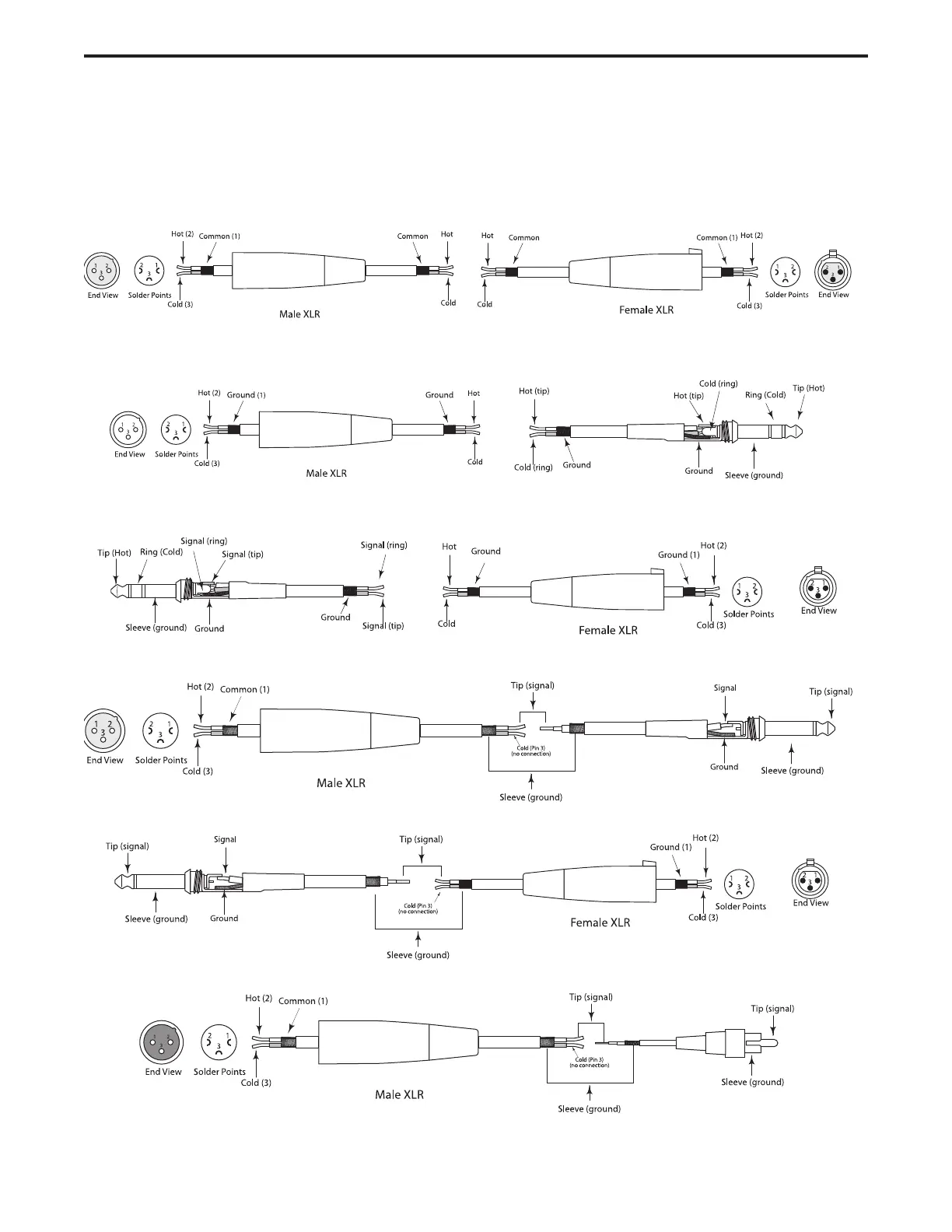

The are several ways to interface the Live Series to support a variety of applications. The Live Series features
balanced inputs and outputs, so connecting balanced and unbalanced signals is possible.
Unbalanced XLR Connector to RCA
XLR to Balanced 1/4-Inch
Balanced 1/4” Connector to Female XLR
Unbalanced Male XLR to1/4” Connector
To Next Page
