Samson Resolv 65 - Resolv 65 Physical Layout; Front Panel Layout; Rear Panel Connections

6
100 Watts
100 Watts
- +
- +
RESOLV 65 Layout
®
1 2 3
4 5 6

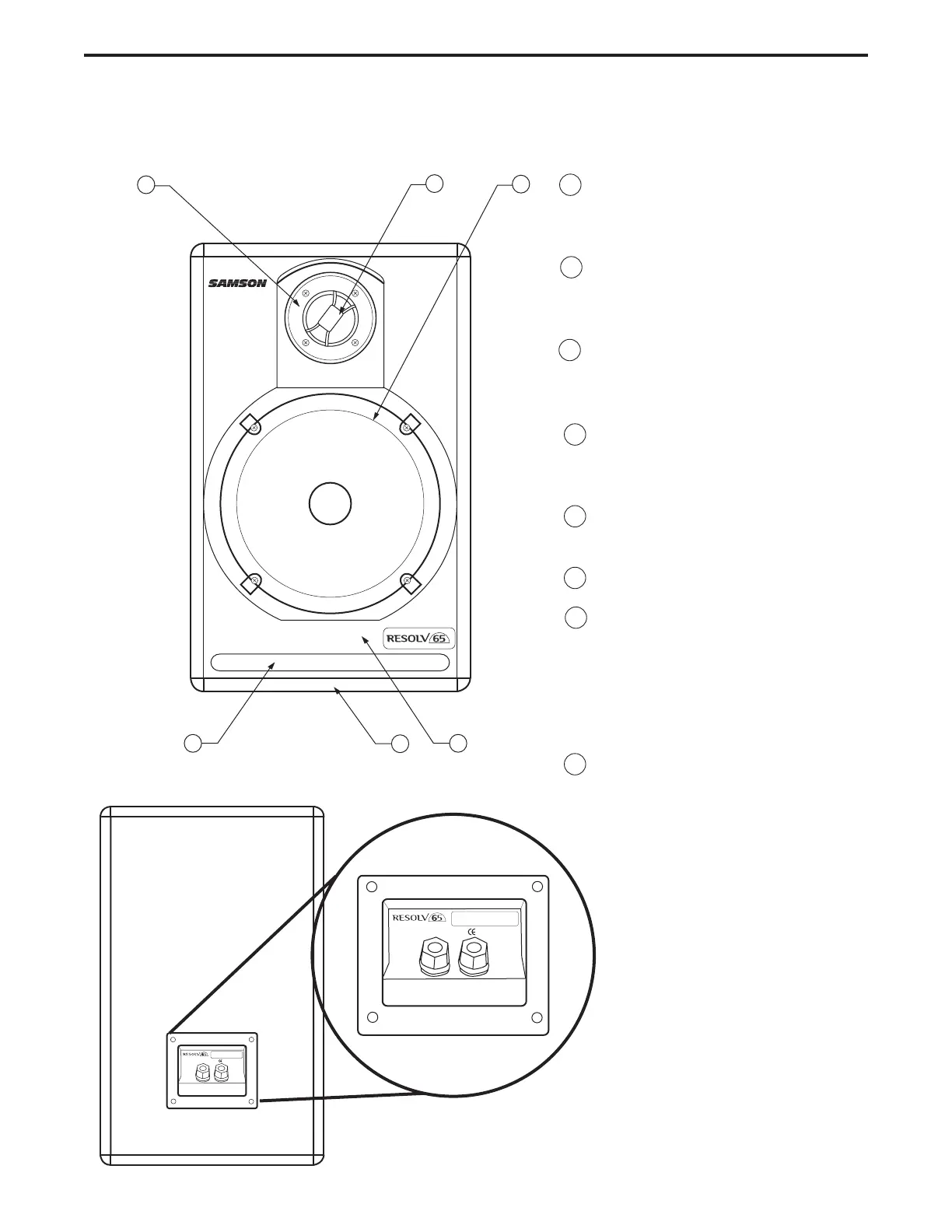

Front View Layout
1 1" TITANIUM DOME TWEETER -
Neodymium Magnet and Ferro-Fluid
Cooling on waveguide.
2 PHASE PLUG
- Insures even disper-
sion of the high frequencies and
improves off axis listening.
3 6.5” LOW FREQUENCY DRIVER
-
Heavy Duty 6.5,” extended range low
frequency transducer.
4 TUNED PORT - Quiet port design
offering linear extended low frequen-
cy response.
5 ENCLOSURE - Rigid MDF
Construction.
6 FINISH - Sleek black oak finish.
7 NON-SKID FEET
- Large rubber feet
keep enclosure in place even at high
sound pressure levels.
.
Rear View Layout
A SPEAKER TERMINALS - 5-Way Gold
Binding Posts
.
